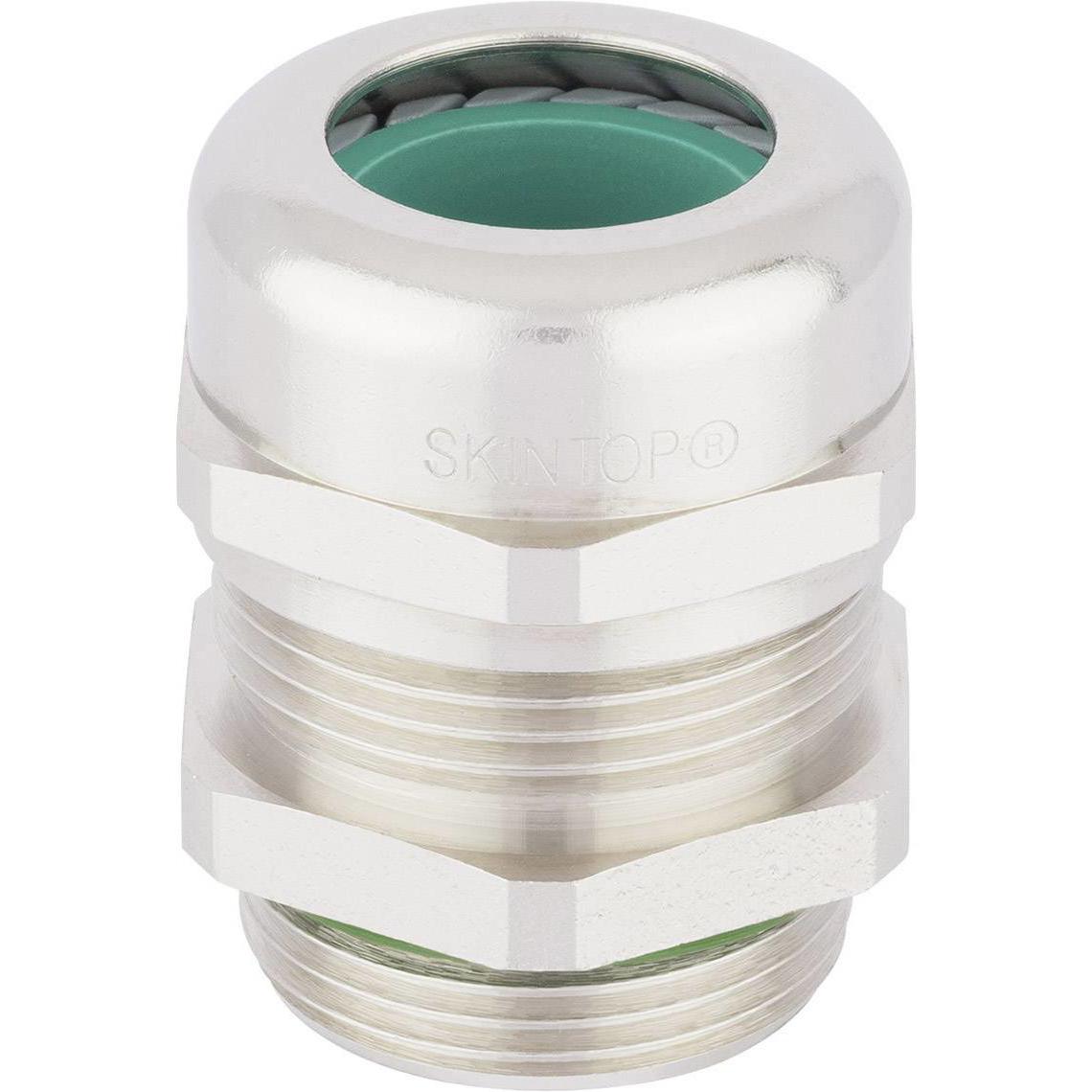

Lapp 53112570

材料

Brass

Factory colour

Brass

External thread

M12

Clamp Ø

3.5mm

Terminal Ø (max.)

7mm

Thread length

6.5mm

Min. temperature

-25°C

Max. temperature

+100°C

Spanner size

16mm

Certification marks

DIN EN 45545-2 · DIN EN 45545-3:2013-08 · DIN EN 1363-1: 2012-10 · DIN EN 13501-2: Classification E30

Halogen-free

有

Content

1pc(s)

RoHS-compliant

有

Manufacturer part #

53112570

Maximum Operating Temperature

(Dynamic) +100 °C, (Static) +100°C

Minimum Operating Temperature

(Dynamic) -25 °C, (Static) -40°C

Standards Met

CE Certified, DIN EN 13501-2: Classification E30, DIN EN 1363-1: 2012-10, DIN EN 45545-2, DIN EN 45545-3: 2013-08, DIN EN 60423, DIN IEC 62444, UL 94V-0

系列

SKINTOP

类型

SKINTOP® MS-HF-M 12x1,5

Halogen free

有

螺纹尺寸

M12

特征

with strain relief

IP rating

IP68
