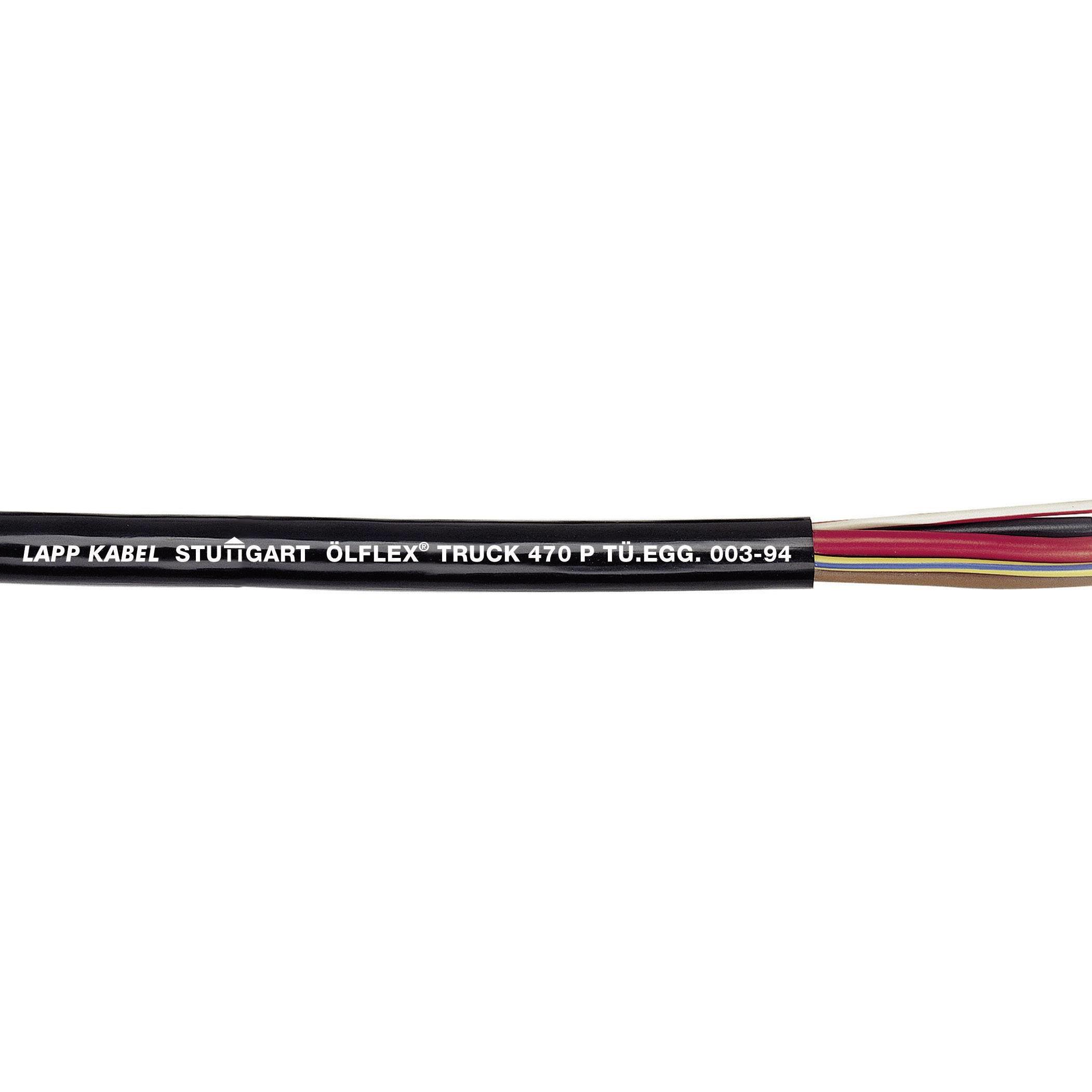

Lapp 7027030-50

Bend radius (no. of ODs for flexible installation)

12

Cable Types

ÖLFLEX® TRUCK 470 P

Content

50m

Cross section

10 x 1.50 mm² + 3 x 2.50 mm²

Factory colour

Black

Cross section (each core)

1.50mm²

Cross section (each core) (part 2)

2.50mm²

Halogen-free

无

Insulation Materials

Polyurethane

Manufacturer part #

7027030-50

Material (details)

Wire insulation: PVC base · Inner sheath: Special PVC base · Outer sheath: Special polyurethane

Nominal voltage

60V

Outside Ø

6mm

Max. temperature range (fixed installation)

+85°C

Min. temperature range (fixed installation)

-40°C

No. of leads

10x

No. of leads (part 2)

3x

Package

有

Core layout

Braid, fine strands

Certification marks

ISO 4141 and DIN/ISO 6722

Wire ID code

ISO 4141-3

Sold per metre

无

类型

ÖLFLEX^® TRUCK 470P

Temperature range

Fixed: -40 - +85°C

Bend radius

12 x outer dia.
