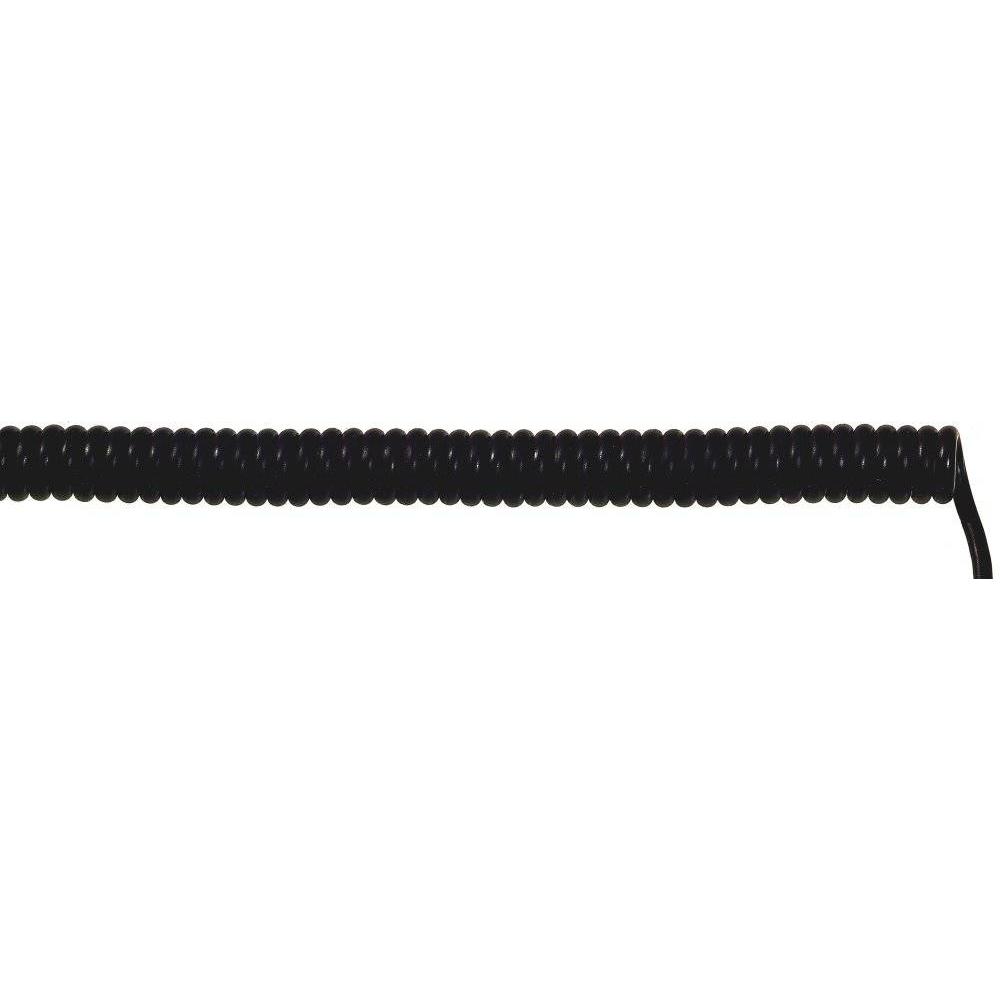

Lapp 73220239

导体材料

Bare Copper

Cable Types

UNITRONIC® SPIRAL

Spiral length (min.)

500mm

Spiral lenght (max.)

2000mm

No. of leads

18x

Cross section (each core)

0.14mm²

Cross section

18 x 0.14 mm²

Cable features

Shielded,Common shield,Oil-resistant,UV-resistant,PUR coating

Outside Ø

29mm

Factory colour

Black

Content

1pc(s)

Peak operating voltage

(not for heavy current applications) 250V

Halogen-free

无

Manufacturer part #

73220239

Insulation Materials

Polyurethane

Min. temperature range (flexible installation)

-5°C

Max. temperature range (flexible installation)

+50°C

Core layout

Extra-finely strands according to VDE 0295, class 6

Min. temperature range (fixed installation)

-5°C

Max. temperature range (fixed installation)

+50°C

RoHS-compliant

有

Nominal voltage

250V

Wire ID code

DIN 47100

Material (details)

Polyurethane

Spiral length (extended)

2000

Flame retardant

无

Material core insulation

Polyvinyl chloride (PVC)

Colour outer sheath

Black

Permitted cable outer temperature during assembling/handling

-5 - 50

Outer diameter approx.

8

Spiral length (retracted)

500

Core identification

Colour

Nominal cross section conductor

0.14

Nominal voltage U0

50

Protective conductor

无

Nominal voltage U

50

Material outer sheath

Polyurethane (PUR)

Conductor category

Class 5 = flexible

Voltage, Rating

350 V

Maximum Operating Temperature

+50°C

Minimum Operating Temperature

-5°C

Standards Met

CE

Jacket Material

PU

系列

UNITRONIC

类型

UNITRONIC® SPIRAL DATA

线规

26AWG

屏蔽的

有

Temperature range

When fixed : -5 - +50°C

核数量

18

股数

18

外直径

7.8mm

线圈直径

500mm

长度

0.5m
