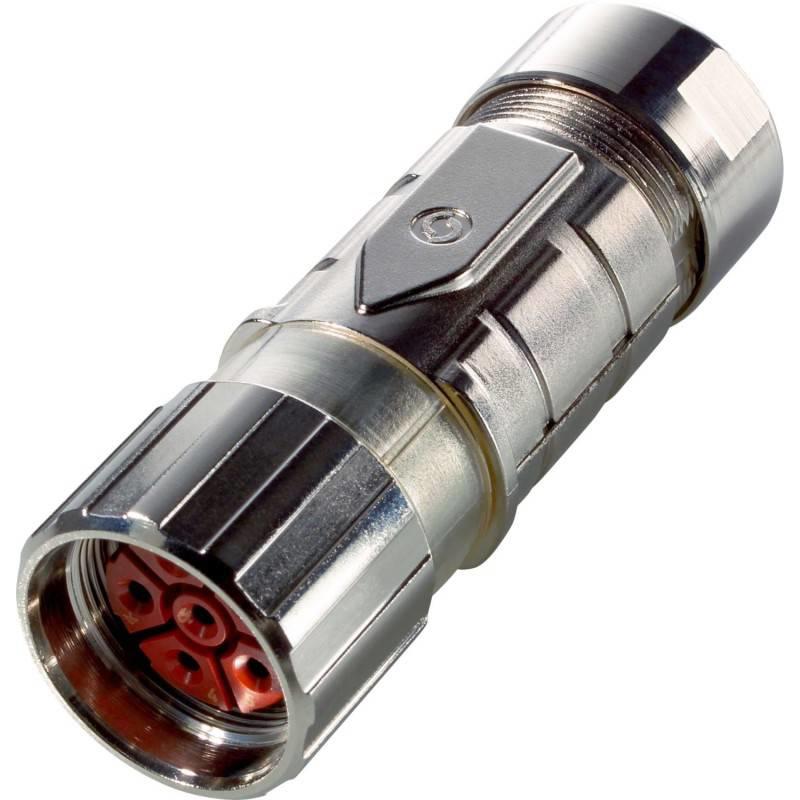

Lapp 75009690

Number of pins

5

房屋材料

Zinc

Total no. of pins

5 + PE

Connections

Crimp

Content

1pc(s)

Leading contact (PE)

有

Manufacturer part #

75009690

Terminal Ø (max.)

15.5mm

Clamp Ø

7.5mm

Core cross section (max.)

2.5

Core cross section (min.)

0.5

RoHS-compliant

有

With protective conductor

有

Connectable conductor cross section fine-strand with cable end sleeve

0.5 - 2.5

Type of electric connection

压接

Ambient temperature

-25 - 125

Rated current In

26

Connectable conductor cross section fine-strand without cable end sleeve

0.5 - 2.5

Material of contact surface

Gold

Connectable conductor cross section multi-wired

0.5 - 2.5

Pollution degree

3

Connectable conductor cross section solid-core

0.5 - 2.5

Contact Materials

Brass

RoHS

Non-Compliant

系列

EPIC®KIT LS1

类型

Lapp Zubehör

Test current

26 A (2 mm contacts)

Rated voltage

630 V (2 mm contacts)
