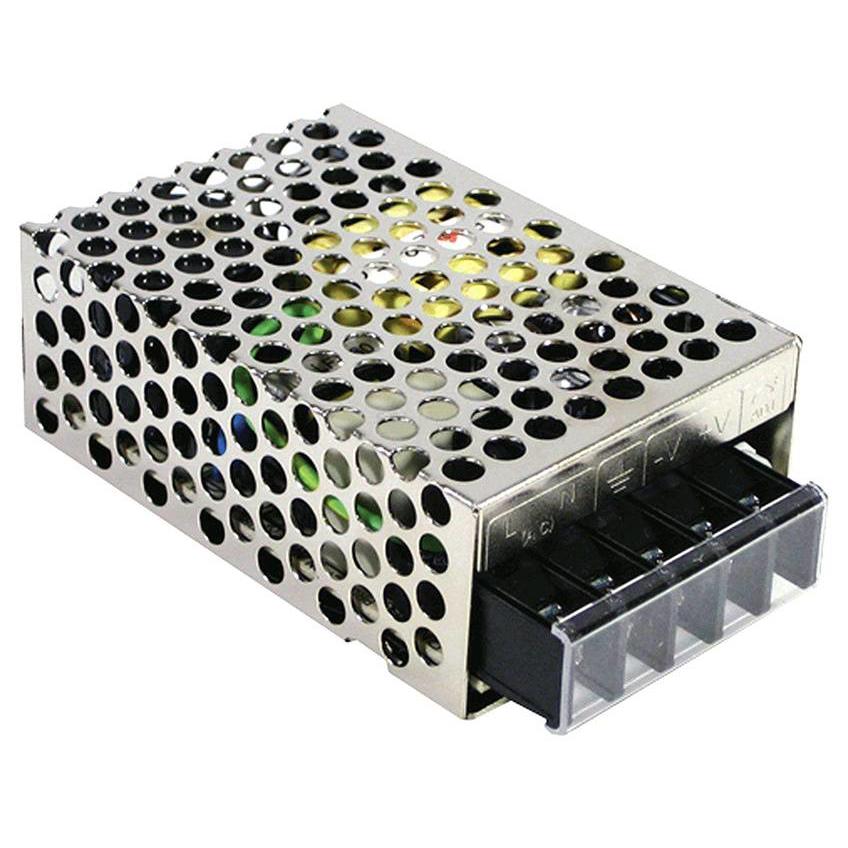

MEAN WELL SD-15A-05

质量

180.00g

Min. input voltage

9.2V DC

Input voltage (max.)

18V DC

No. of outputs

1x

Max. output current

3A

Output current (max.) - rounded

3A

Connections

Screw terminals

Dim

(L x W x H) 79.00 x 51.00 x 28.00 mm

Content

1pc(s)

Output current (min.)

0A

Output voltage (max.)

5V DC

Output voltage (min.)

5V DC

No. of inputs

1x

Output current (details)

3 A

Output Voltage-Channel 1

5 V

Maximum Operating Temperature

+ 60 C

Unit Weight

6.349313 oz

Minimum Operating Temperature

- 10 C

Factory Pack QuantityFactory Pack Quantity

60

Mounting Styles

Chassis

Manufacturer

鄙井

Brand

鄙井

Input Voltage-Max

18 V

Input Voltage-Min

9.2 V

RoHS

Details

系列

SD-15

类型

Synchronised

子类别

DC-DC Converter

深度

78mm

输出的数量

1 Output

输出功率

15 W

隔离电压

1.5kV

电源

15W

产品

Isolated

输入电压

9.2 V to 18 V

产品类别

Isolated DC/DC Converters - Chassis Mount

高度

28.00mm

长度

79.00mm

宽度

51.00mm
