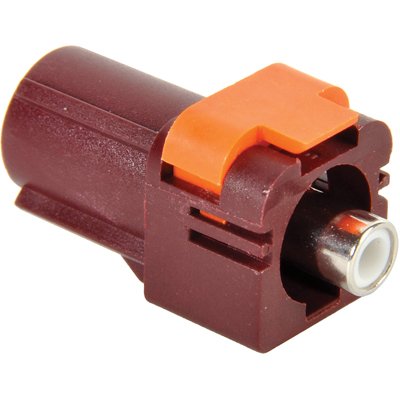

Molex 73403-6283

生命周期状态

Production (Last Updated: 4 months ago)

包装/外壳

SMB

触点镀层

Gold

底架

Cable

本体材质

Brass

面板安装

无

Contact Materials

Brass

Country of Origin

TW

Manufacturer Lifecycle Status

ACTIVE (Last Updated: 4 months ago)

Voltage, Rating

335 V

Terminate To

RG174/316 Cable

Body Orientation

Straight

Termination Method

Crimp

Mounting

电缆安装

RoHS-compliant

有

Manufacturer part #

734036283

Max. frequency

6GHz

Packaging type

Bag

Content

1pc(s)

Cable category

RG 174,RG 316

Product Depth (mm)

9.5(mm)

Product Diameter (mm)

Not Required(mm)

Mounting Styles

Cable

Rad Hardened

无

Insulation Materials

Polypropylene

Maximum Operating Temperature

+ 105 C

Unit Weight

0.106563 oz

Minimum Operating Temperature

- 40 C

Cable Types

RG-174, 316

RoHS

Details

Brand

Molex

Manufacturer

Molex

Factory Pack QuantityFactory Pack Quantity

1

Rohs Code

有

Manufacturer Part Number

73403-6283

Part Life Cycle Code

活跃

Samacsys Description

RF Connectors / Coaxial Connectors FAKRA II JACK STR KEY D BORDX VLT

Ihs Manufacturer

MOLEX LLC

Risk Rank

1.69

包装

Bulk

系列

73403

终端

Crimp

连接器类型

Coaxial, SMB

类型

Molex MOL DataCom & Specialty

最高工作温度

105 °C

最小工作温度

-40 °C

性别

Female

子类别

射频互连器件

方向

Straight

样式

Cable

Reach合规守则

unknown

频率

6 GHz

终端样式

Crimp

极性

Standard

绝缘电阻

5 GΩ

阻抗

50 Ω

导线/电缆种类

RG-174

本体镀层

Nickel

无卤素

低卤素

产品类别

RF Connectors / Coaxial Connectors

最高频率

6 GHz

本体饰面

Nickel

产品

Connectors

本体样式

Straight

产品类别

RF Connectors / Coaxial Connectors

产品长度

17 mm

无线电频率系列

SMB

知识产权评级

-

产品长度(mm)

17(mm)

产品高度(mm)

11.98(mm)

RoHS状态

符合RoHS标准
