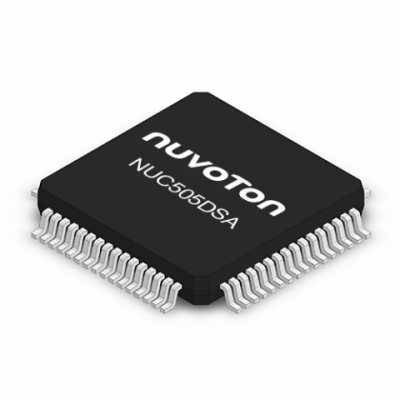

Nuvoton NUC505DSA

表面安装

YES

终端数量

64

Package Description

LFQFP,

Package Style

FLATPACK, LOW PROFILE, FINE PITCH

Supply Voltage-Nom

3.3 V

Supply Voltage-Min

3 V

Manufacturer Part Number

NUC505DSA

Clock Frequency-Max

12 MHz

Package Code

LFQFP

Package Shape

SQUARE

Manufacturer

Nuvoton Technology Corp

Part Life Cycle Code

活跃

Number of I/O Lines

34

Ihs Manufacturer

NUVOTON TECHNOLOGY CORP

Supply Voltage-Max

3.6 V

Risk Rank

5.71

Product Series

NUC505 Series

Number of I/Os

34

SRAM

128KB

ADC

5*12-bit

UART

3

Crypto

MTP

USB Host

FS

Audio Codec

ADC/DAC

Package

LQFP64

操作温度

-40~+85˚C

端子位置

QUAD

终端形式

鸥翼

端子间距

0.4 mm

Reach合规守则

compliant

频率

100MHz

内存大小

512KB

速度

100 MHz

uPs/uCs/外围ICs类型

MICROCONTROLLER, RISC

核心处理器

Cortex M4

位元大小

32

有ADC

YES

DMA 通道

YES

脉宽调制通道

YES

数模转换器通道

NO

SPI,SPI

2

USB装置

HS

脉宽调制

4*16-bit

工作电压

1.8~3.6V

宽度

7 mm

长度

7 mm
