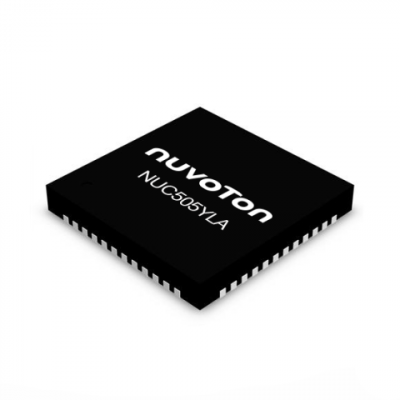

NUVOTON NUC505YLA

表面安装

YES

终端数量

48

Package Style

CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

Supply Voltage-Nom

3.3 V

Supply Voltage-Min

3 V

Manufacturer Part Number

NUC505YLA

Clock Frequency-Max

12 MHz

Package Code

HVQCCN

Package Shape

SQUARE

Manufacturer

Nuvoton Technology Corp

Part Life Cycle Code

活跃

Number of I/O Lines

18

Ihs Manufacturer

NUVOTON TECHNOLOGY CORP

Supply Voltage-Max

3.6 V

Risk Rank

5.72

Package

QFN48

Audio Codec

ADC/DAC

USB Host

FS

Crypto

MTP

UART

2

ADC

5*12-bit

SRAM

128KB

Number of I/Os

20

Product Series

NUC505 Series

操作温度

-40~+85˚C

端子位置

QUAD

终端形式

无铅

端子间距

0.5 mm

Reach合规守则

compliant

频率

100MHz

内存大小

512KB

速度

100 MHz

uPs/uCs/外围ICs类型

MICROCONTROLLER, RISC

核心处理器

Cortex M4

位元大小

32

有ADC

YES

DMA 通道

YES

脉宽调制通道

YES

数模转换器通道

NO

SPI,SPI

1

USB装置

HS

脉宽调制

-

工作电压

1.8~3.6V

宽度

7 mm

长度

7 mm
