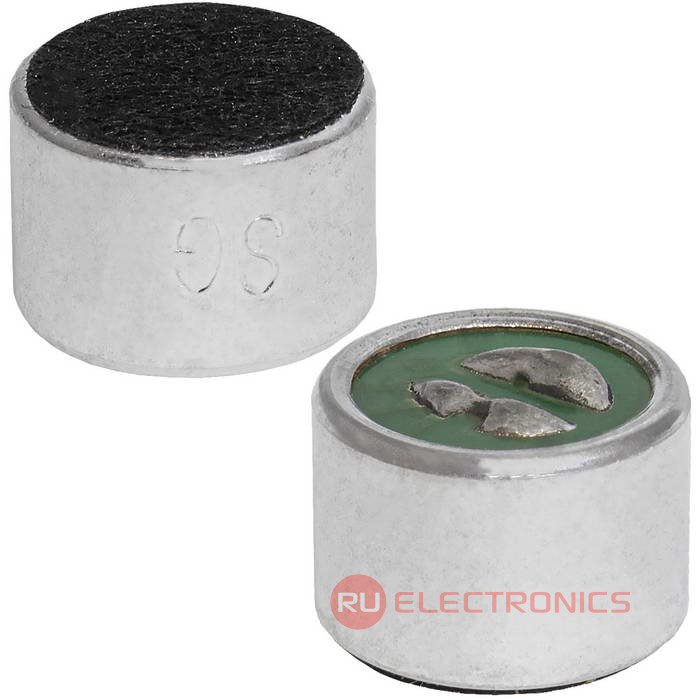

Ruichi ECM-60

  • 收藏
  • 对比

型号

ECM-60

品牌

Ruichi

utmel 编号

3465-ECM-60

商品类别

麦克风

封装

--

交货地

大陆

交期(工作日)

立即发货

ROHS

ECAD

简介

Electret microphone RUICHI ECM-60 - a microphone with a principle of operation similar to capacitor microphones, using an electret plate as the stationary capacitor electrode and voltage source. These materials are able to retain surface charge for a long time. Electret microphones are mainly installed in modern smartphones, laptops and intercoms due to their compact size. However, they are also used in recording studios and as noise level meters.

起订量

1最小包装量--

添加到询价列表
ECM-60
ECM-60 Ruichi Electret microphone RUICHI ECM-60 - a microphone with a principle of operation similar to capacitor microphones, using an electret plate as the stationary capacitor electrode and voltage source. These materials are able to retain surface charge for a long time. Electret microphones are mainly installed in modern smartphones, laptops and intercoms due to their compact size. However, they are also used in recording studios and as noise level meters.

请发送询价,我们将立即回复。

库存:

请发送询价,我们将立即回复。

*
验证码
在线咨询

ECM-60详情

Ruichi ECM-60重要参数规格及、参数值,及相似型号如下:

  • 参数名
    参数值
    全选
  • 参数名
    参数值
    全选
  • Gross Weight

    0.82

  • Transport Packaging Size/Quantity

    28.5*21*19/10000

  • Body diameter

    9.83 mm

  • Sound pressure level

    (max.) - 120 dB

  • Current consumption

    0.5 mA

  • Signal to Noise Ratio

    > 40 dB

  • Operating voltage range

    1.5-10 (Unom = 4.5) V

  • 类型

    Electret microphone ECM series

  • 阻抗

    low kOhm

  • Frequency range

    50 - 16000 Hz

  • 敏感度

    -56...-72 dB

  • Operating voltage

    1.5...10 V

  • 高度

    7.0 mm
