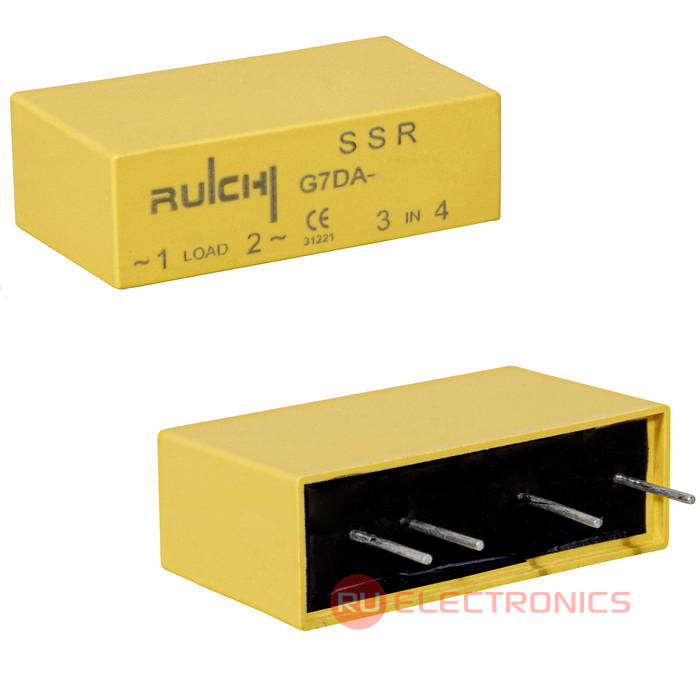

Ruichi G7DA-48 (Z)D3 8A/440V (3-32V)

Dielectric strength

1500 (50 Hz / 1 min) V

Operating ambient temperature

-25…+70 (non-condensing) °C

Load voltage

~440 V

Transport packaging size/quantity

43*24.5*24.5/500

Gross weight

18.60

类型

G7 series single-phase solid state relay

深度

33 mm

Insulation resistance

500 (at Uins.dc=500V) MOhm min

Leakage current

not more than 1.5 mA

Control mode

Z - Zero Crossing

Load current

8 A

Control current

6-35 mA max

Control voltage

3...32 (DC) V

Switching time

10 ms max

高度

22 mm

宽度

12.5 mm
