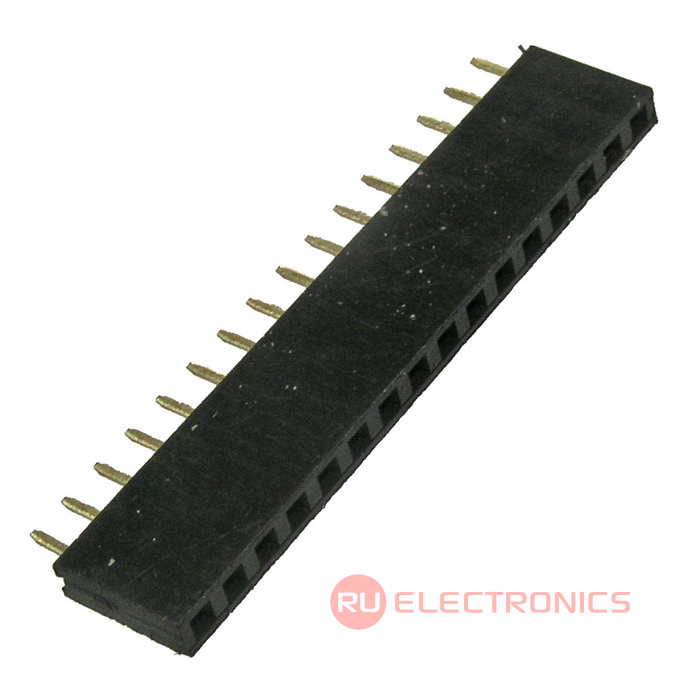

Ruichi PBS-1x16 (PBS-16) step 2.54 mm

Name: PBS-1x16 (PBS-16) step 2.54 mm
Brand: Ruichi
SKU: 3465-PBS-1x16 (PBS-16) step 2.54 mm
Availability: InStock
Rating: 5 (1 reviews)

收藏
对比

型号

PBS-1x16 (PBS-16) step 2.54 mm

品牌

Ruichi

utmel 编号

3465-PBS-1x16 (PBS-16) step 2.54 mm

商品类别

IC、晶体管插座

封装

交货地

大陆

交期（工作日）

立即发货

ROHS

ECAD

简介

Socket for PCB soldering, step 2.54 mm, surface mount. Made of glass fiber reinforced polymer. Contacts made of phosphor bronze, gold/plated with galvanic lead.

起订量

1最小包装量--

添加到询价列表

PBS-1x16 (PBS-16) step 2.54 mm Ruichi Socket for PCB soldering, step 2.54 mm, surface mount. Made of glass fiber reinforced polymer. Contacts made of phosphor bronze, gold/plated with galvanic lead.

请发送询价，我们将立即回复。

库存:

请发送询价，我们将立即回复。

* 联系人姓名

* 电话

* 邮箱

* 公司名称

* 数量

在线咨询

PBS-1x16 (PBS-16) step 2.54 mm详情

技术参数

Ruichi PBS-1x16 (PBS-16) step 2.54 mm重要参数规格及、参数值，及相似型号如下：

参数名

参数值

全选
参数名

参数值

全选
Mounting type

PCB soldering
材料

PBT
Housing material

PBT or polyester (UL 94V-0); standard - Nylon PA-46
Gross weight

1.46
Transport packaging size/quantity

33.5*26*38/5000
Dielectric strength

1000 (50 Hz, 1 min.) V
Contact pitch

2.54 mm
Connector type

single-row socket connector for PBS series pins for straight PCBs
深度

2.5 mm
Number of contacts

16
Contact resistance

20 mΩ max
Insulation resistance

1000 MΩ min
Operating temperature range

-40…+105 °C
高度

8.5 (housing) mm
宽度

40.64 mm
