YD63-02  0.5W   8ohm
YD63-02  0.5W   8ohm

注:图像仅供参考,请参阅产品规格

技术文档 技术文档

PDF列表 PDF文档列表
免费送样

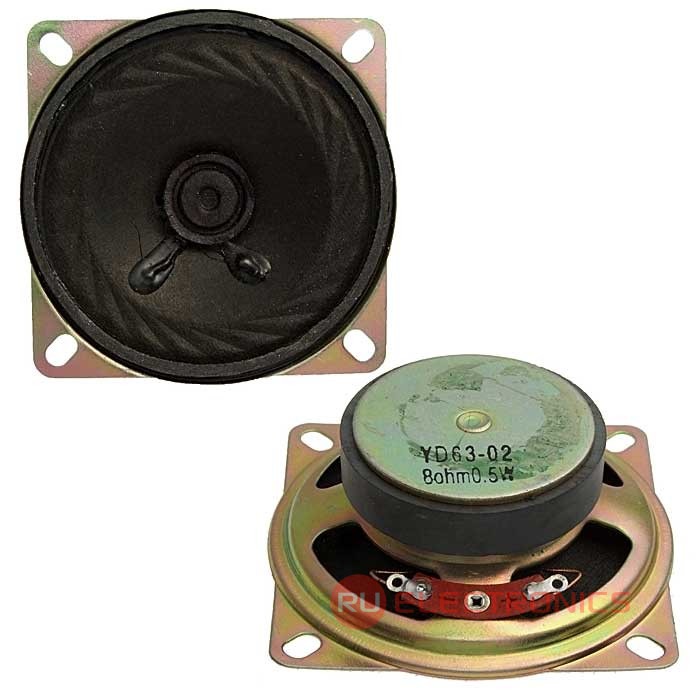

Ruichi YD63-02 0.5W 8ohm

  • 收藏
  • 对比

型号

YD63-02 0.5W 8ohm

品牌

Ruichi

utmel 编号

3465-YD63-02 0.5W 8ohm

商品类别

扬声器

封装

--

交货地

大陆

交期(工作日)

立即发货

ROHS

ECAD

简介

Ruichi YD63-02 Acoustic Speaker, 0.5W, 8 ohm - a device that converts electrical signals into sound by moving a coil with current in a constant magnetic field and then converting mechanical vibrations into air vibrations with the help of a diffuser.

起订量

1最小包装量--

添加到询价列表
YD63-02  0.5W   8ohm
YD63-02 0.5W 8ohm Ruichi Ruichi YD63-02 Acoustic Speaker, 0.5W, 8 ohm - a device that converts electrical signals into sound by moving a coil with current in a constant magnetic field and then converting mechanical vibrations into air vibrations with the help of a diffuser.

请发送询价,我们将立即回复。

库存:

请发送询价,我们将立即回复。

*
验证码
在线咨询

YD63-02 0.5W 8ohm详情

Ruichi YD63-02 0.5W 8ohm重要参数规格及、参数值,及相似型号如下:

  • 参数名
    参数值
    全选
  • 参数名
    参数值
    全选
  • Gross Weight

    81.00

  • Transport Package Size/Quantity

    52*33.5*20.5/300

  • Body Diameter

    63 mm

  • Magnet Diameter

    40 mm

  • Resonant Frequency

    450 Hz

  • Maximum Power

    0.5 W

  • Mounting Hole Distance (diagonal)

    50 x 50 mm

  • Allowable deviation of characteristics

    15 %

  • 类型

    YD63-02 Series Electrodynamics (Speaker) Head

  • 深度

    59.5 (flange to flange) mm

  • 阻抗

    8 Ohm

  • 频率范围

    450-12500 Hz

  • 敏感度

    89 dB

  • 高度

    26 mm

  • 宽度

    59.5 (flange to flange) mm

0个相似型号
