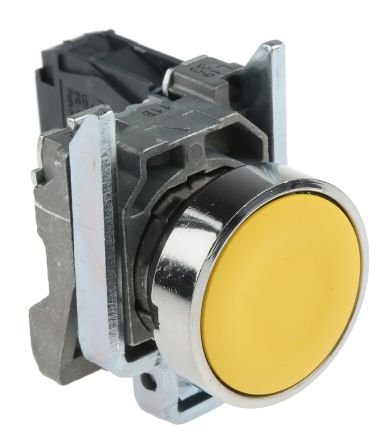

Schneider Electric XB4BA51

包装/外壳

120

底架

Panel

安装类型

面板安装

表面安装

NO

越来越多的功能

PANEL MOUNT

房屋材料

Metal

质量

80 g

本体材质

Chromium Plated Metal (Bezel)

形状

Round

Voltage Rating (AC)

600 V

Voltage Rating (DC)

600 V

Dim

(W x H x D) 30 x 47 x 52 mm

Recess diameter

22.5mm

Connections

Screws

Switching current (max.)

6A

Switch/button features

Planar

Unlocking mechanism

Push

Operation type

1-button

Min. temperature

-40°C

Lighting type

None

Content

1pc(s)

Print motif

None

Max. temperature

+70°C

Factory colour

Yellow

Maximum Operating Temperature

+70°C

Minimum Operating Temperature

-25°C

Illuminated

无

With front ring

有

Colour front ring

Chrome

Number of contacts as normally closed contact

0

Degree of protection (NEMA)

13

Degree of protection (IP)

IP66

Construction type lens

Round

Number of contacts as normally open contact

1

Number of contacts as change-over contact

0

Type of electric connection

Screw connection

Material front ring

Metal

Cap Color

Yellow

Unit Weight

2.821917 oz

Factory Pack QuantityFactory Pack Quantity

1

Mounting Styles

面板安装

Actuator Style

Round

Manufacturer

施耐德电气

Voltage Rating DC

600 VDC

Brand

施耐德电气

RoHS

Details

Actuator

Round

Package

Box

厂商

施耐德电气

Product Status

活跃

ElectricalLife

1,000,000 Cycles

Voltage Rating AC

120 V

Operating Temperature-Min

-25 °C

Operating Temperature-Max

70 °C

Rohs Code

有

Manufacturer Part Number

XB4BA51

Part Life Cycle Code

活跃

Ihs Manufacturer

SCHNEIDER ELECTRIC SA

Contact Current (DC) - Max

0.55 A

Risk Rank

2.3

Manufacturer Series

XB4BA51

包装

Bulk

系列

Harmony XB4

操作温度

-40°C ~ 70°C

终端

Screw

ECCN 代码

EAR99

类型

Harmony XB4BA51

定位的数量

2

最高工作温度

70 °C

最小工作温度

-25 °C

颜色

Yellow

附加功能

REFERENCE STANDARD: JIS; LROS; RINA; UL

HTS代码

8536.50.90.31

子类别

Switches

额定电流

6 A

入口保护

IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof

深度

52mm

Reach合规守则

compliant

终端样式

Screw

功能

momentary

执行器类型

Round, Button, Flush

电路

SPST-NO

开关功能

OFF - (ON)

面板开孔尺寸

Circular - 22.00mm Dia

颜色 - 执行器/盖

Yellow

照明电压（标称）

-

照明类型，颜色

-

密封

IK03; IP66

触点电压(DC)-最大值

125 V

终端类型

SCREW

投掷配置

SPST

机械寿命

10,000,000 Cycles

开关类型

按钮开关

触点额定电流

6 A

触点形式

SPST

端子类型

Screw

产品类别

按钮开关

触点电流(AC)-最大值

6 A

触点(AC)最大额定值R 负载

切换电压

240 V

触点(DC)最大额定值 R 负载

触点电压(AC)-最大值

120 V

开关动作

MOMENTARY

开关电流

3 A

操作力-最大值

3.8 N

触点配置

SPST

产品

标准开关

灯型

-

特征

-

产品类别

按钮开关

知识产权评级

IP66, IP67, IP69(IP69K)

高度

47 mm

长度

52 mm

宽度

30 mm

RoHS状态

符合RoHS标准

评级结果

IP66
