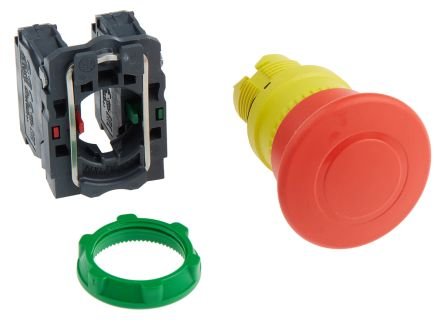

Schneider Electric XB5AT845

包装/外壳

120

触点镀层

Silver

底架

Flush, Panel

安装类型

面板安装

材料

Plastic

房屋材料

Plastic

质量

76 g

Voltage Rating (AC)

600 V

Voltage Rating (DC)

600 V

Dim

(L x W x H) 82 x 40 x 43 mm

Recess diameter

22.5mm

Connections

Screw terminals

Switching current (max.)

6A

Button Ø

40mm

Switch/button features

Front ring (steel),+ kill switch,round,reset function,lockable

Unlocking mechanism

Pull

Min. temperature

-40°C

Lighting type

None

Content

1pc(s)

Print motif

None

Max. temperature

+70°C

Factory colour

Red

Voltage, Rating

600 V ac, 600V dc

Illuminated

无

Number of contacts as normally closed contact

1

Degree of protection (NEMA)

Other

Degree of protection (IP)

IP66

Number of contacts as normally open contact

1

Maximum Operating Temperature

+ 70 C

Unit Weight

2.680821 oz

Minimum Operating Temperature

- 40 C

Factory Pack QuantityFactory Pack Quantity

1

Mounting Styles

Panel

Manufacturer

施耐德电气

Voltage Rating DC

600 VDC

Brand

施耐德电气

RoHS

Details

Actuator

Round, Mushroom

Package

Box

厂商

施耐德电气

Product Status

活跃

Voltage Rating AC

120 V

包装

Bulk

系列

Harmony XB5

操作温度

-40°C ~ 70°C

终端

Screw

类型

XB5AT845

定位的数量

2

颜色

Black, Red

子类别

Switches

额定电流

100 mA

入口保护

IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof

深度

43 mm

终端样式

Screw

功能

Mechanical lock,latch

工作电源电压

600 V

电路

DPST-NO/NC

开关功能

ON - (OFF), OFF - (ON)

面板开孔尺寸

Circular - 22.00mm Dia

照明电压（标称）

-

耐用性

300000 cycles

投掷配置

DPST, SPST

触点额定电流

6 A

触点形式

单刀双掷

产品类别

Emergency Stop Switches

包括

-

生命（周期）

1 Mcycles

头部直径

40 mm

开关电流

3 A

触点配置

SPST-NO, SPST-NC

产品

安全开关

特征

-

产品类别

Emergency Stop Switches / E-Stop Switches

知识产权评级

IP66

高度

43 mm

长度

81.5 mm

宽度

40 mm

达到SVHC

无SVHC

RoHS状态

符合RoHS标准

无铅

无铅

评级结果

IP54, IP66
