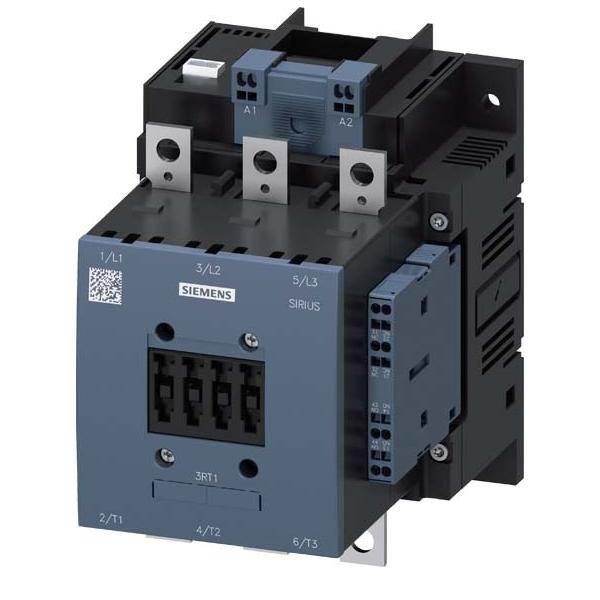

Siemens 3RT10552XB460LA2

安装类型

Chassis Mount, DIN Rail

厂商

Siemens

Package

Bulk

Product Status

活跃

Contact Materials

-

No. of pins

3-pin

Auxiliary contact type

2 makers,2 breakers

Nominal voltage

1000V AC

Connections

Screws

Dim

(W x H) 120 mm x 172 mm

Content

1pc(s)

RoHS-compliant

有

Rated operation power at AC-3, 400 V

75kW

Number of normally open contacts as main contact

3

Number of normally closed contacts as main contact

0

Number of auxiliary contacts as normally open contact

2

Number of auxiliary contacts as normally closed contact

2

Rated operation current Ie at AC-3, 400 V

150A

Rated operation current Ie at AC-1, 400 V

185A

Rated operation current Ie at AC-4, 400 V

132A

Rated operation power at AC-4, 400 V

75kW

Type of electrical connection of main circuit

Screw connection

Modular version

有

Rated operation power NEMA

91.937

Voltage type for actuating

DC

Rated control supply voltage at DC

24 - 24

系列

SIRIUS

操作温度

-40°C ~ 70°C

类型

S6

Contact type

3 makers

终端样式

螺旋端子

耐用性

1000 0000

触点形式

3PST-NO (3 Form A)

运行时间

75 ms

线圈电压

24VDC

切换电压

1000VAC - Max

线圈电流

13.3 A

发布时间

90 ms

必须运行电压

16.8 VDC

触点额定值(电流)

150 A

线圈功率

320W

必须释放电压

-

宽度

120mm

高度

172mm
