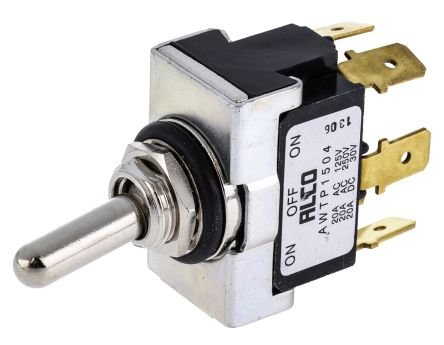

TE Connectivity AWTP1504

生命周期状态

Production (Last Updated: 1 week ago)

触点镀层

Silver

底架

Panel

安装类型

面板安装

终端数量

6

执行器材料

Brass

Contact Materials

Brass

Manufacturer Lifecycle Status

ACTIVE (Last Updated: 1 week ago)

Operating Temperature (Max)

70 °C

Voltage - Rated (AC)

250 V

Operating Temperature (Min)

-20 °C

Voltage Rating (AC)

125 V

Operating Temperature Max Deg. C

70C

Switch Configuration

开 关 开

Body Orientation

Straight

Product Depth (mm)

21(mm)

Actuator Length (mm)

17.5(mm)

Contact Resistance Max

10(mohm)

Operating Temp Range

-20C to 70C

Dielectric Strength

1500VAC

Seal Location

ACTUATOR/PANEL/N/A

Actuator Style

BATON LEVER

ActuatorColor

CHROME

Operating Temperature Min Deg. C

-20C

ElectricalLife

20000

AC Voltage Rating (Max)

250

Pole Throw Configuration

DPDT

DC Voltage Rating (Max)

30

RoHS

Compliant

Maximum Operating Temperature

+70°C

Minimum Operating Temperature

-20°C

Illuminated

Non-Illuminated

包装

Bulk

终端

Quick Connect, Tab

类型

Switch

子类别

Switches

额定电流

20 A

深度

21 mm

终端样式

快速连接

触点电阻

10 mΩ

绝缘电阻

1 GΩ

弱电

Compliant

投掷配置

DPDT

照明

Non Illuminated

最大额定电压（直流）

30 V

机械寿命

40 kcycles

触点额定电流

20 A

照明类型

Illuminated

螺纹尺寸

M12 X 1

端子类型

Tab

产品类别

拨动开关

工作温度范围

-20 → +70°C

最大额定电流

20@250VAC 30VDC(A)

触点配置

DPDT

套管类型

THREADED

知识产权评级

IP67

产品长度(mm)

33(mm)

高度

33 mm

长度

33 mm

宽度

19.5 mm

执行器长度

17.5 mm

产品高度(mm)

59.5(mm)

达到SVHC

无SVHC

RoHS状态

符合RoHS标准

评级结果

IP67
