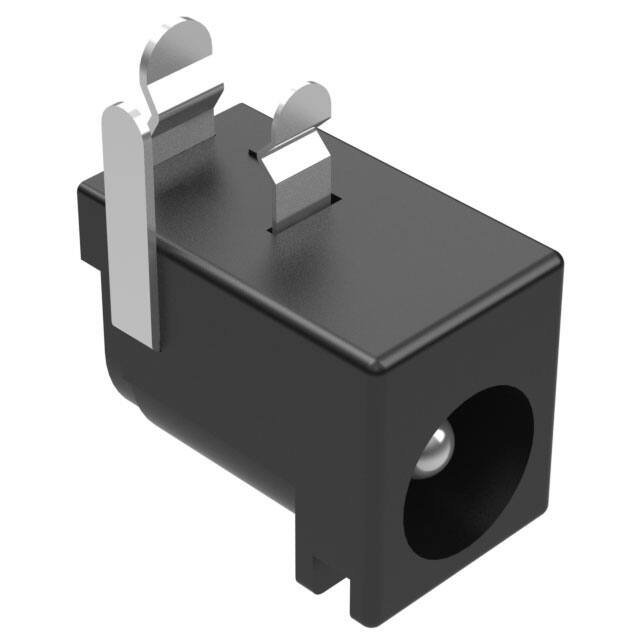

Tensility International Corp 54-00132

工厂交货时间

15 Weeks

安装类型

Through Hole, Right Angle

房屋材料

Polybutylene Terephthalate (PBT)

本体材质

Copper Alloy

触点材料 - 电镀

Silver

Contact Materials

Brass, Phosphor Bronze

Voltage Rated

48V

操作温度

-25°C~85°C

包装

Bulk

零件状态

活跃

湿度敏感性等级(MSL)

1 (Unlimited)

终端

Kinked Pin, Solder

连接器类型

Jack

性别

Male

额定电流

6A

屏蔽/屏蔽

Unshielded

绝缘颜色

Black

定位/联系数

2 Conductors, 3 Contacts

内部开关

Single Switch, Normally Closed

业界认可的配合直径

2.50mm ID (0.098), 5.50mm OD (0.217)

实际直径

0.098 (2.50mm ID), 0.217 (5.50mm OD)
