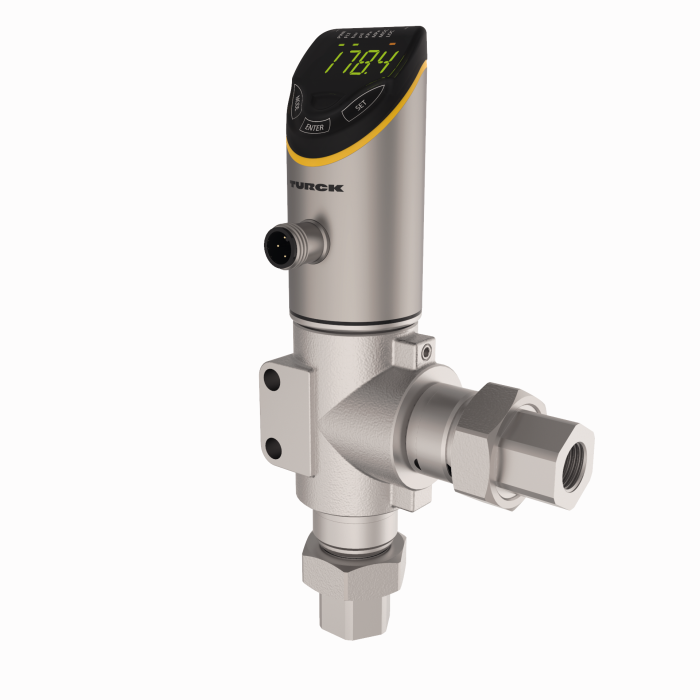

turck PS326-1D-02-LI2UPN8-H1141

Housing material

Stainless-steel/Plastic, 1.4404 (AISI 316L)/Grilamid TR90 UV

质量

1084 g

EAN

4047101534924

eCl@ss-Code (V5.1.4)

27200614 -/- Piezoresistive sensor (absolute and relative pressure)

Customs tariff number

90262020000

Country of origin

DE

Process connection

1/4″ NPT-18 female thread

Pressure range bar

0…1 bar

Pressure range psi

0…14.5 psi

Electrical output

Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link

Voltage output

0…10 V

Current output

4…20 mA

Materials (contact with media)

Stainless steel 1.4404 (AISI 316L), Al₂O₃, FKM

Medium temperature

-30…+80 °C

Ambient temperature

-40…+80 °C

Protection class

IP66/IP67/IP69K

Approvals

CE, Metrological certification (RUS), cULus

Manufacturer ID

100017553

Pressure type

Differential Pressure

设计

With display (integrated probe)

Communication protocol

IO-Link

Operating voltage

18…33 VDC

Electrical connection

Connector, M12 × 1
