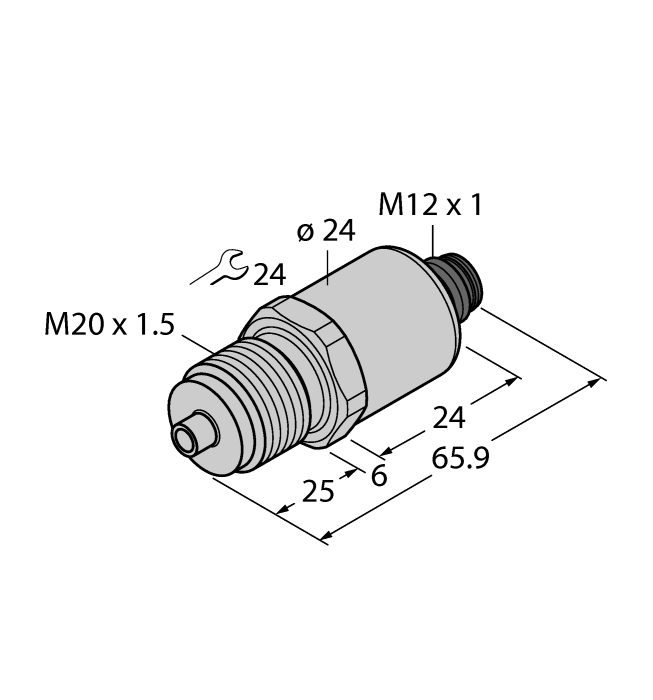

turck PT0.2V-1020-IOL-H1141

Housing material

Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0

质量

113 g

EAN

4047101530742

eCl@ss-Code (V5.1.4)

27200614 -/- Piezoresistive sensor (absolute and relative pressure)

Customs tariff number

90262020000

Country of origin

CH

Process connection

M20 × 1.5 male thread, front sealing and manometer (combi)

Manufacturer ID

100023098

Approvals

CE, Metrological certification (RUS), cULus

Protection class

IP67

Ambient temperature

-30…+85 °C

Medium temperature

-40…+125 °C

Pressure transducer material

Ceramic Al₂O₃

Electrical output

2 × switching output

Pressure range psi

-2.9…2.9 psi

Pressure range bar

-0.2…0.2 bar

Pressure type

相对压力

设计

Without display

Communication protocol

IO-Link

Operating voltage

18…33 VDC

Electrical connection

Connector, M12 × 1
