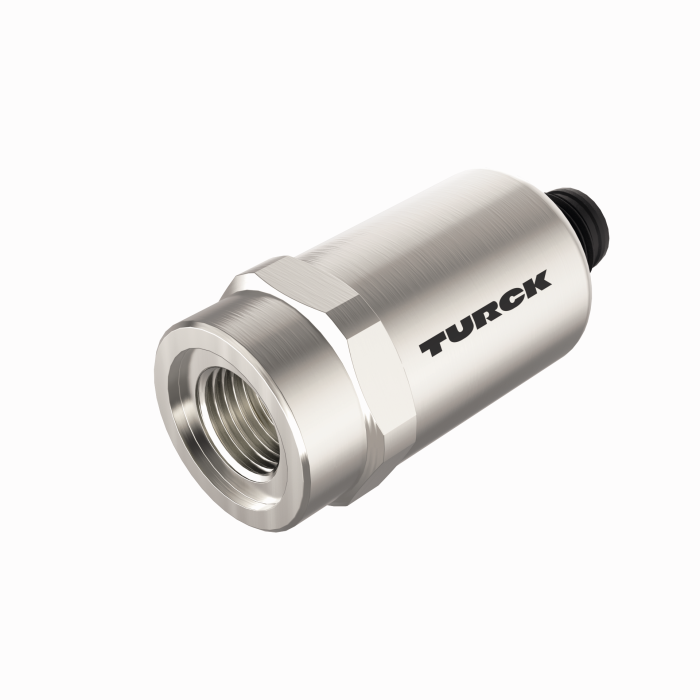

turck PT9V-2001-I2-H1141

Housing material

Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0

质量

96 g

EAN

4047101394870

eCl@ss-Code (V5.1.4)

27200614 -/- Piezoresistive sensor (absolute and relative pressure)

Customs tariff number

90262020000

Country of origin

CH

Process connection

G 1/4” female thread (front sealing)

Pressure range bar

-1…9 bar

Pressure range psi

-14.5…130.53 psi

Electrical output

Current output (2-wire)

Current output

4…20 mA

Pressure transducer material

Stainless steel 1.4016 (AISI 430)

Medium temperature

-40…+135 °C

Ambient temperature

-30…+85 °C

Protection class

IP67

Approvals

CE, Metrological certification (RUS), cULus

Manufacturer ID

6836102

Pressure type

相对压力

设计

Without display

Operating voltage

7…33 VDC

Electrical connection

Connector, M12 × 1
