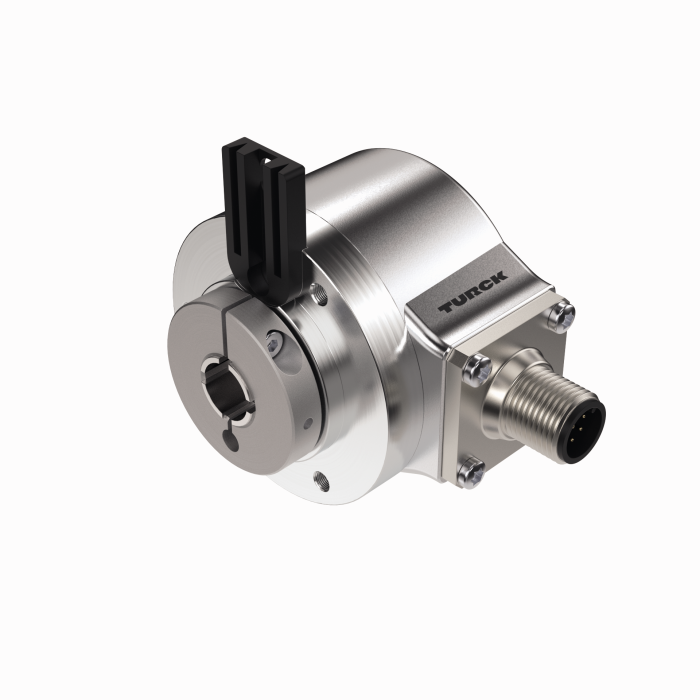

turck RI-12I10E-2B600-C10M

Housing material

Die-cast zinc

eCl@ss-Code (V5.1.4)

27270502 -/- Encoder, incremental

Encoder line

Industrial-Line

Shaft Type

Blind hole shaft

Shaft diameter D (mm)

10

Flange type

Flange with stator coupling

Resolution incremental

600  ppr

Ambient temperature

-40…+85 °C

Protection class housing

IP65

Protection class shaft

IP65

Protection class

IP67

Manufacturer ID

200005715

Output type

Incremental

Output function

Push-Pull/HTL, with inverted signals

Flange diameter

Ø  63 mm

Operating voltage

10…30 VDC

Electrical connection

Cable
