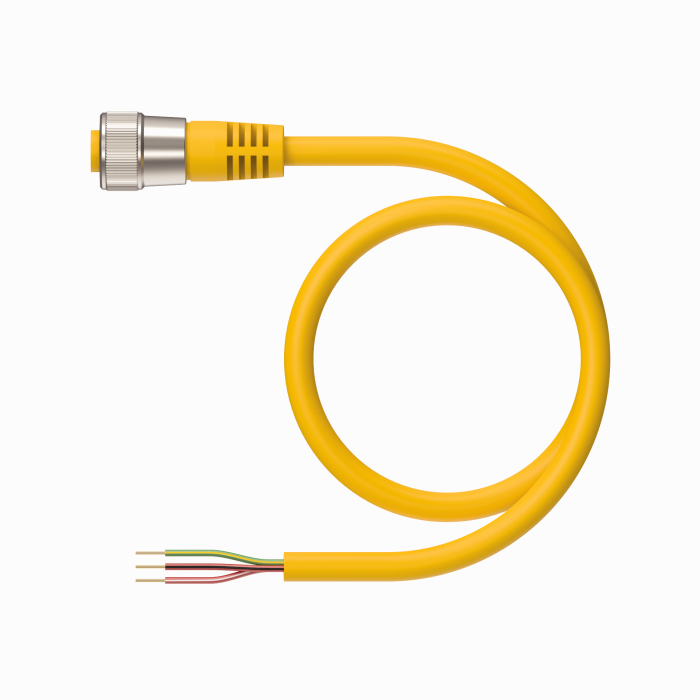

turck RKM 35-xM

eCl@ss-Code (V5.1.4)

27250107 -/- Connection cable sensor-actuator

Connector A

Female, 7/8″-16 UN, Straight

Manufacturer ID

777003118

Approvals

CSA C22.2 No. 182.3, CE, RoHS, UL Listed, UL 2238

Protection class (When coupled)

IP67, IP68, IP69, IP69K

Cable jacket

PVC, Yellow

Coupling nut

Brass, CuZn, Nickel-plated

Connector body

Plastic, TPU, Yellow

应用

Signal

导体数量

3

Number of contacts

3

电压

600 V

电流

10 A

设计

Single-ended

Cable diameter

Ø  10.01 mm
