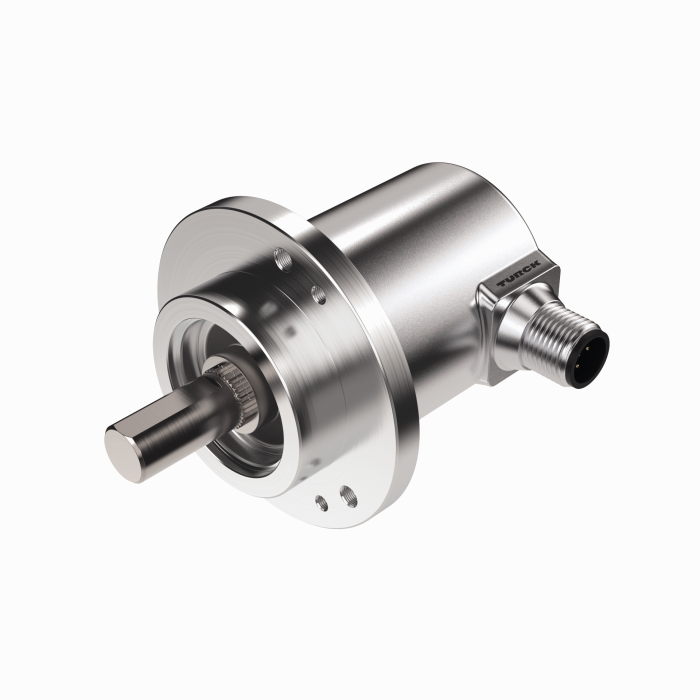

turck RM-116T10C-8BSARNS-H1151

Housing material

Die-cast zinc

Manufacturer ID

200006714

Protection class

IP65

Protection class shaft

IP65

Ambient temperature

-40…+85 °C

Voltage output

0…10 V

Flange type

Clamping flange

Shaft diameter D (mm)

10

Shaft Type

Solid shaft

Encoder line

Industrial-Line

eCl@ss-Code (V5.1.4)

27270501 -/- Encoder, absolute

Output type

Absolute multiturn

Output function

Analog output

Flange diameter

Ø  58 mm

Operating voltage

15…30 VDC

Electrical connection

Connector, M12 × 1
