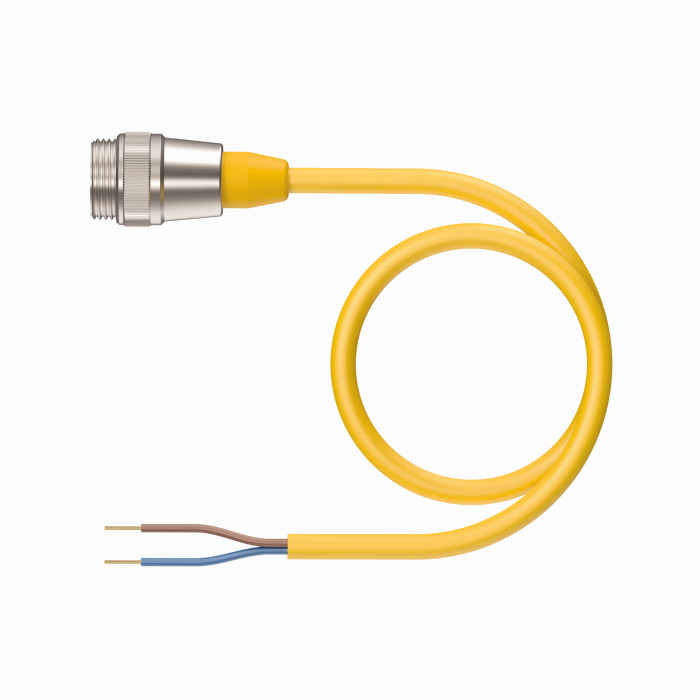

turck RSM 20-xM

eCl@ss-Code (V5.1.4)

27250107 -/- Connection cable sensor-actuator

Connector A

Male, 7/8″-16 UN, Straight

Connector body

Plastic, TPU, Yellow

Coupling nut

Brass, CuZn, Nickel-plated

Cable jacket

PVC, Yellow

Protection class (When coupled)

IP67, IP68, IP69, IP69K

Special Features

Tray cable

Approvals

UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS

Manufacturer ID

777003126

应用

Signal

导体数量

2

Number of contacts

2

电压

600 V

电流

9 A

设计

Single-ended

Cable diameter

Ø  6.2 mm
