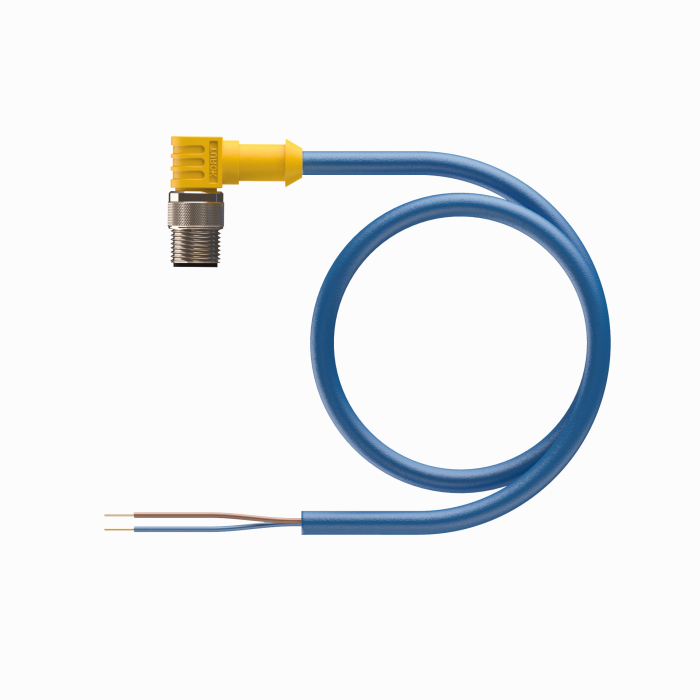

turck WS 4.21T-x

eCl@ss-Code (V5.1.4)

27250107 -/- Connection cable sensor-actuator

Connector A

Male, M12 × 1, Right angle, A-code

Connector body

Plastic, TPU, Yellow

Coupling nut

Brass, CuZn, Nickel-plated

Cable jacket

PVC, Blue

Protection class (When coupled)

IP68, IP69K

Special Features

High FlexC-trackSuitable for drag chain use

Approvals

UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS

Manufacturer ID

777000715

应用

Signal

导体数量

2

Number of contacts

4

电压

250 V

电流

4 A

设计

Single-ended

Cable diameter

Ø  5.13 mm
