wago 2000-3231

Name: 2000-3231
Brand: wago
SKU: 2685-2000-3231
Availability: InStock
Rating: 5 (1 reviews)

收藏
对比

型号

2000-3231

品牌

wago

utmel 编号

2685-2000-3231

商品类别

无类别的

封装

交货地

大陆

交期（工作日）

立即发货

ROHS

ECAD

简介

Triple-deck terminal block; Through/through/through terminal block; L/L/L; with marker carrier; suitable for Ex e II applications; for DIN-rail 35 x 15 and 35 x 7.5; 1 mm2; Push-in CAGE CLAMP?; 1,00 mm2; gray

起订量

1最小包装量--

添加到询价列表

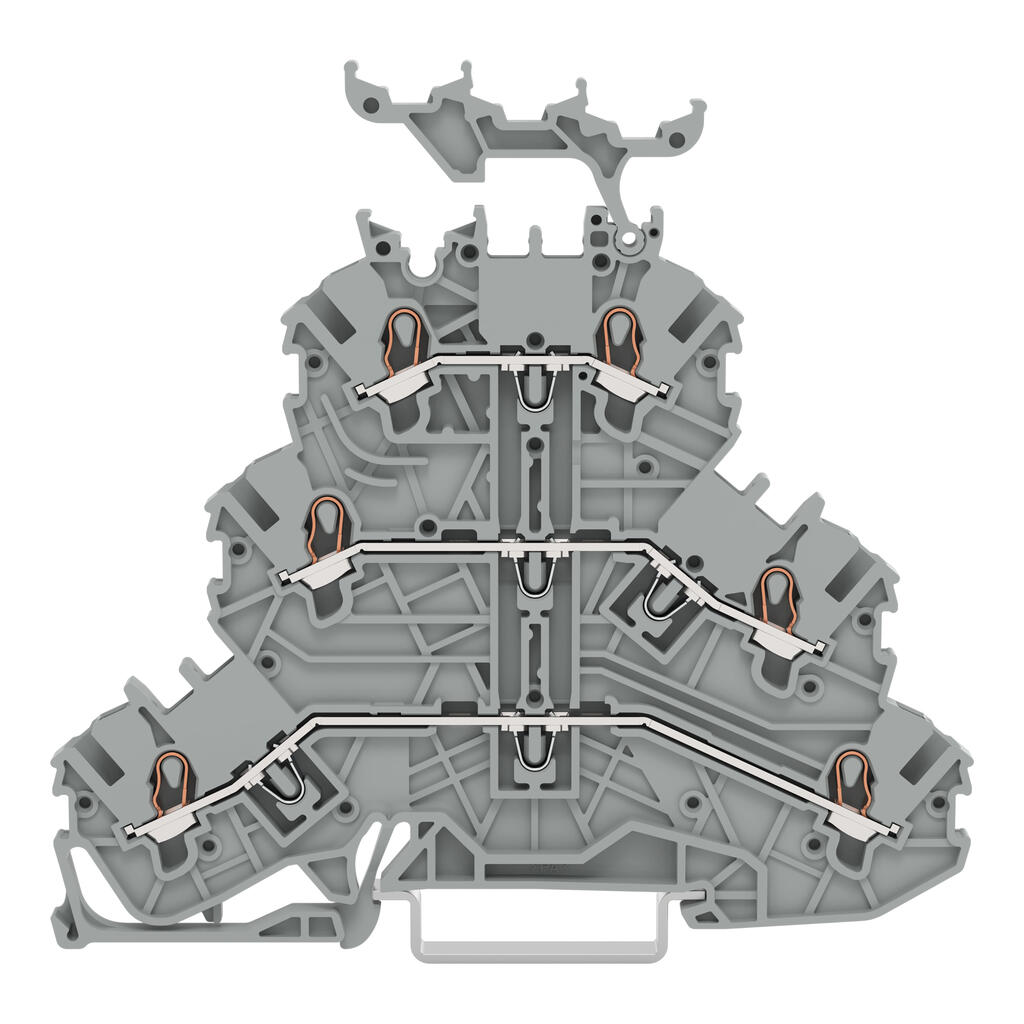

2000-3231 wago Triple-deck terminal block; Through/through/through terminal block; L/L/L; with marker carrier; suitable for Ex e II applications; for DIN-rail 35 x 15 and 35 x 7.5; 1 mm2; Push-in CAGE CLAMP?; 1,00 mm2; gray

请发送询价，我们将立即回复。

库存:

请发送询价，我们将立即回复。

* 联系人姓名

* 电话

* 邮箱

* 公司名称

* 数量

在线咨询

2000-3231详情

技术参数

wago 2000-3231重要参数规格及、参数值，及相似型号如下：

参数名

参数值

全选
参数名

参数值

全选
Mounting type

DIN-rail 35 x 15
质量

13.4g
RoHS Compliance Status

Compliant,No Exemption
Ratings per

IEC/EN 60664-1
Rated voltage (III / 3)

500V
Rated impulse voltage (III / 3)

6kV
Legend (ratings)

(III / 3) ? Overvoltage category III / Pollution degree 3
Reference hazardous areas

See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”
Number of connection points 2

3
Strip length

9 … 11?mm?/ 0.35 … 0.43?inches
Note (conductor cross-section)

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Fine-stranded conductor; with ferrule; push-in termination

0.5?mm2?/ 20?AWG
Fine-stranded conductor; with insulated ferrule

0.5 … 0.75?mm2?/ 20 … 18?AWG
Fine-stranded conductor

0.14 … 1.5?mm2?/ 24 … 16?AWG
Stranded conductor

0.14 … 1.5?mm2?/ 24 … 16?AWG
Solid conductor; push-in termination

0.5?mm2?/ 20?AWG
Solid conductor

0.14 … 1.5?mm2?/ 24 … 16?AWG
Nominal cross-section

1 mm2
Connectable conductor materials

Copper
Actuation direction 1

Operation parallel to conductor entry
Actuation type

Operating tool
Total number of connection points

3
Connection technology

Push-in CAGE CLAMP?
Resistance value for specified, current-dependent power loss

0.001Ω
Rated current I<sub>N</sub> for specified power loss

24A
Power loss, per pole (potential)

0.766W
Customs tariff number

85369010000
GTIN

4066966382532
Country of origin

PL
Packaging type

Box
PU (SPU)

40?pcs
ECCN

NO US CLASSIFICATION
ETIM 8.0

EC000897
ETIM 9.0

EC000897
Continuous operating temperature

-60 … +105?°C
Processing temperature

-35 … +85?°C
Fire load

0.281MJ
Flammability class per UL94

V0
Insulation material (main housing)

Polyamide (PA66)
Material group

I
Note (material data)

Information on material specifications can be found here
Marking level

Center/side marking
Potential Marking

L/L/L
Depth from upper-edge of DIN-rail

83.8?mm?/ 3.299?inches
Number of jumper slots

6
Total number of potentials

3
颜色

gray
Number of levels

3
Rated current

13.5A
高度

93.6?mm?/ 3.685?inches
宽度

3.5?mm?/ 0.138?inches
