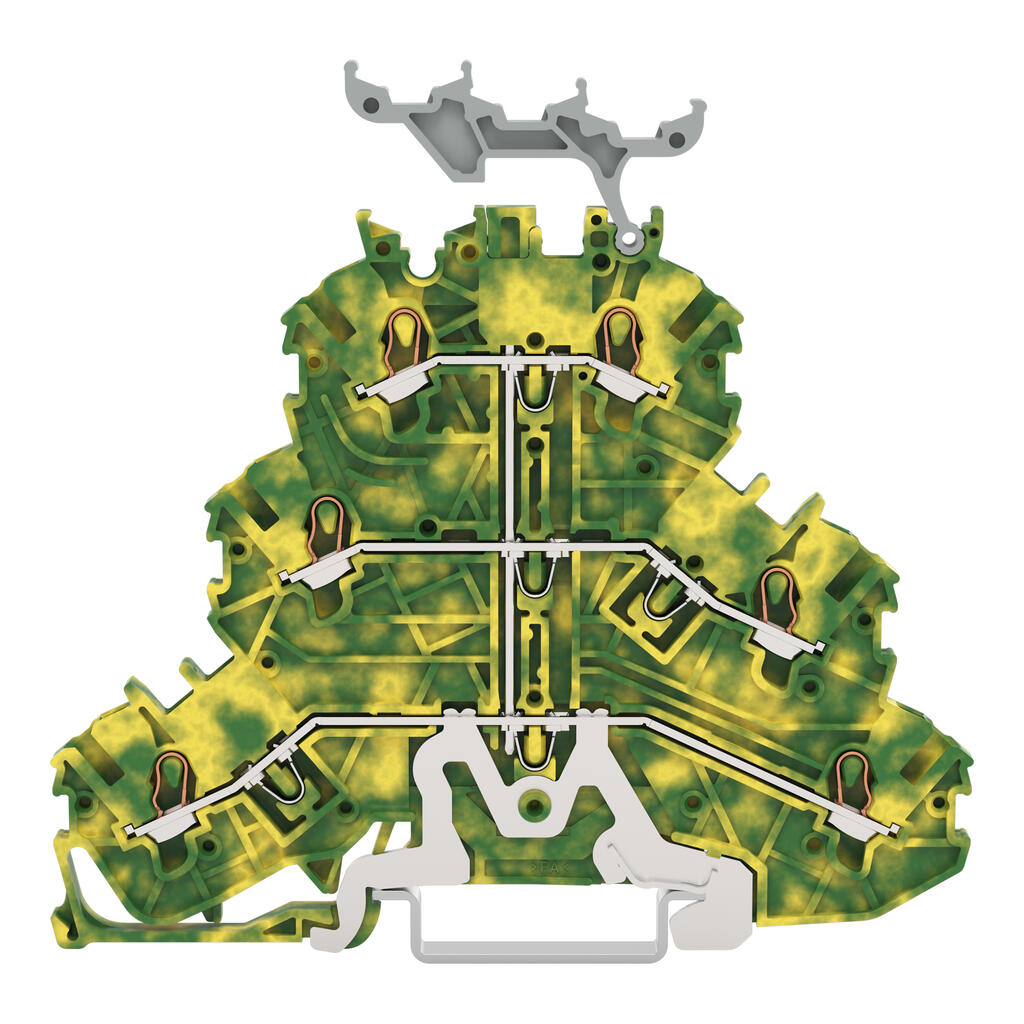

wago 2000-3237

Mounting type

DIN-rail 35 x 15

质量

16.1g

Total number of potentials

3

Number of jumper slots

5

Depth from upper-edge of DIN-rail

83.8?mm?/ 3.299?inches

Potential Marking

PE

Marking level

Center/side marking

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Fire load

0.275MJ

Processing temperature

-35 … +85?°C

Continuous operating temperature

-60 … +105?°C

ETIM 9.0

EC000897

ETIM 8.0

EC000897

ECCN

NO US CLASSIFICATION

Number of connection points 2

3

Strip length

9 … 11?mm?/ 0.35 … 0.43?inches

Note (conductor cross-section)

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

Fine-stranded conductor; with ferrule; push-in termination

0.5?mm2?/ 20?AWG

Fine-stranded conductor; with insulated ferrule

0.5 … 0.75?mm2?/ 20 … 18?AWG

Fine-stranded conductor

0.14 … 1.5?mm2?/ 24 … 16?AWG

Stranded conductor

0.14 … 1.5?mm2?/ 24 … 16?AWG

Solid conductor; push-in termination

0.5?mm2?/ 20?AWG

Solid conductor

0.14 … 1.5?mm2?/ 24 … 16?AWG

Nominal cross-section

1 mm2

Connectable conductor materials

Copper

Actuation direction 1

Operation parallel to conductor entry

Actuation type

Operating tool

Total number of connection points

3

Connection technology

Push-in CAGE CLAMP?

Reference hazardous areas

See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”

Legend (ratings)

(III / 3) ? Overvoltage category III / Pollution degree 3

RoHS Compliance Status

Compliant,No Exemption

Customs tariff number

85369010000

GTIN

4066966381153

Country of origin

PL

Packaging type

Box

PU (SPU)

40?pcs

颜色

green-yellow

Number of levels

3

宽度

3.5?mm?/ 0.138?inches

高度

93.6?mm?/ 3.685?inches
