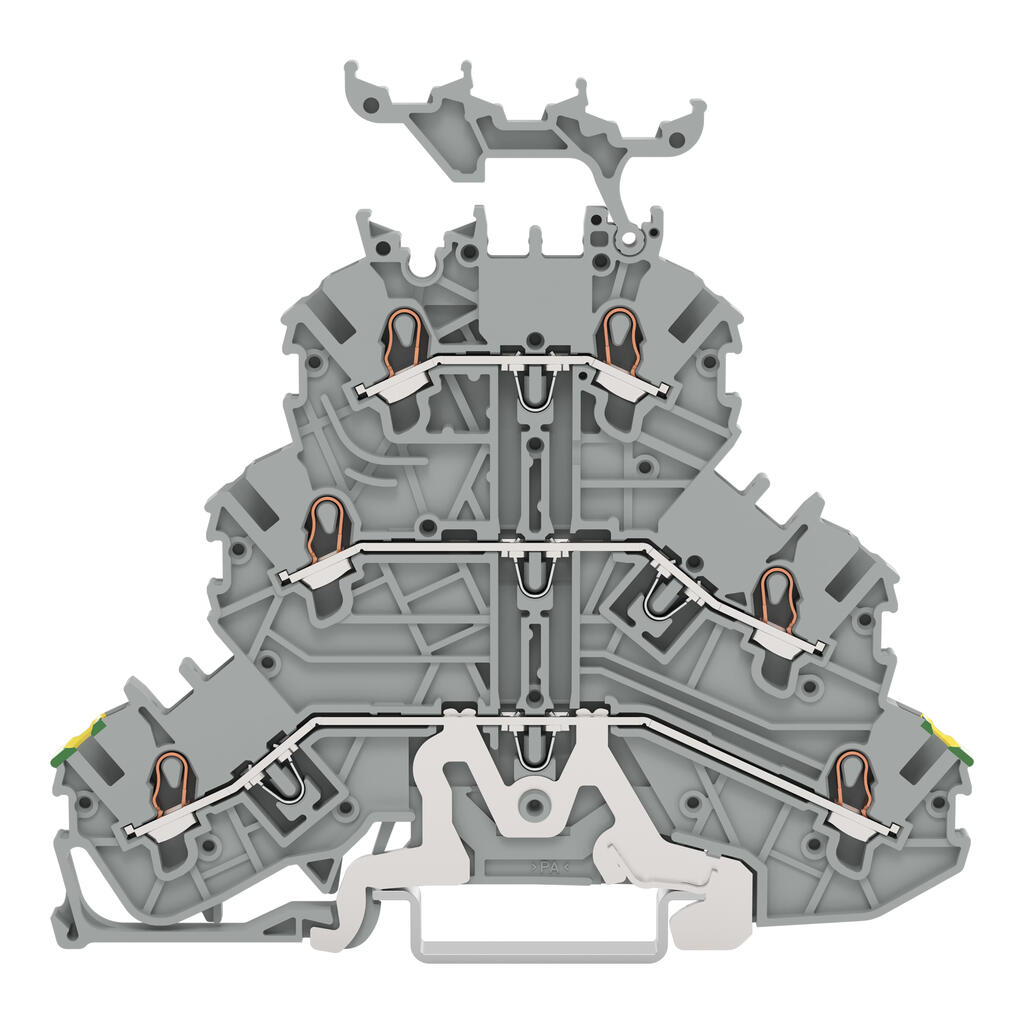

wago 2000-3257

Name: 2000-3257
Brand: wago
SKU: 2685-2000-3257
Availability: InStock
Rating: 5 (1 reviews)

收藏
对比

型号

2000-3257

品牌

wago

utmel 编号

2685-2000-3257

商品类别

无类别的

封装

交货地

大陆

交期（工作日）

立即发货

ROHS

ECAD

简介

Triple-deck terminal block; Ground conductor/through/through terminal block; 1 mm2; PE/L/L; suitable for Ex e II applications; with marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP?; 1,00 mm2; gray

起订量

1最小包装量--

添加到询价列表

2000-3257 wago Triple-deck terminal block; Ground conductor/through/through terminal block; 1 mm2; PE/L/L; suitable for Ex e II applications; with marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP?; 1,00 mm2; gray

请发送询价，我们将立即回复。

库存:

请发送询价，我们将立即回复。

* 联系人姓名

* 电话

* 邮箱

* 公司名称

* 数量

在线咨询

2000-3257详情

技术参数

wago 2000-3257重要参数规格及、参数值，及相似型号如下：

参数名

参数值

全选
参数名

参数值

全选
Mounting type

DIN-rail 35 x 15
质量

15.5g
Total number of potentials

3
Number of jumper slots

6
Depth from upper-edge of DIN-rail

83.8?mm?/ 3.299?inches
Potential Marking

PE/L/L
Marking level

Center/side marking
Note (material data)

Information on material specifications can be found here
Material group

I
Insulation material (main housing)

Polyamide (PA66)
Flammability class per UL94

V0
Fire load

0.271MJ
Number of connection points 2

3
Strip length

9 … 11?mm?/ 0.35 … 0.43?inches
Note (conductor cross-section)

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Fine-stranded conductor; with ferrule; push-in termination

0.5?mm2?/ 20?AWG
Fine-stranded conductor; with insulated ferrule

0.5 … 0.75?mm2?/ 20 … 18?AWG
Fine-stranded conductor

0.14 … 1.5?mm2?/ 24 … 16?AWG
Stranded conductor

0.14 … 1.5?mm2?/ 24 … 16?AWG
Solid conductor; push-in termination

0.5?mm2?/ 20?AWG
Solid conductor

0.14 … 1.5?mm2?/ 24 … 16?AWG
Nominal cross-section

1 mm2
Connectable conductor materials

Copper
Actuation direction 1

Operation parallel to conductor entry
Actuation type

Operating tool
Total number of connection points

3
Connection technology

Push-in CAGE CLAMP?
Resistance value for specified, current-dependent power loss

0.001Ω
Rated current I<sub>N</sub> for specified power loss

24A
Power loss, per pole (potential)

0.96W
Reference hazardous areas

See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”
Legend (ratings)

(III / 3) ? Overvoltage category III / Pollution degree 3
RoHS Compliance Status

Compliant,No Exemption
Customs tariff number

85369010000
GTIN

4066966386561
Country of origin

PL
Packaging type

Box
PU (SPU)

40?pcs
ECCN

NO US CLASSIFICATION
ETIM 8.0

EC000897
ETIM 9.0

EC000897
Continuous operating temperature

-60 … +105?°C
Processing temperature

-35 … +85?°C
颜色

gray
Number of levels

3
宽度

3.5?mm?/ 0.138?inches
高度

93.6?mm?/ 3.685?inches
