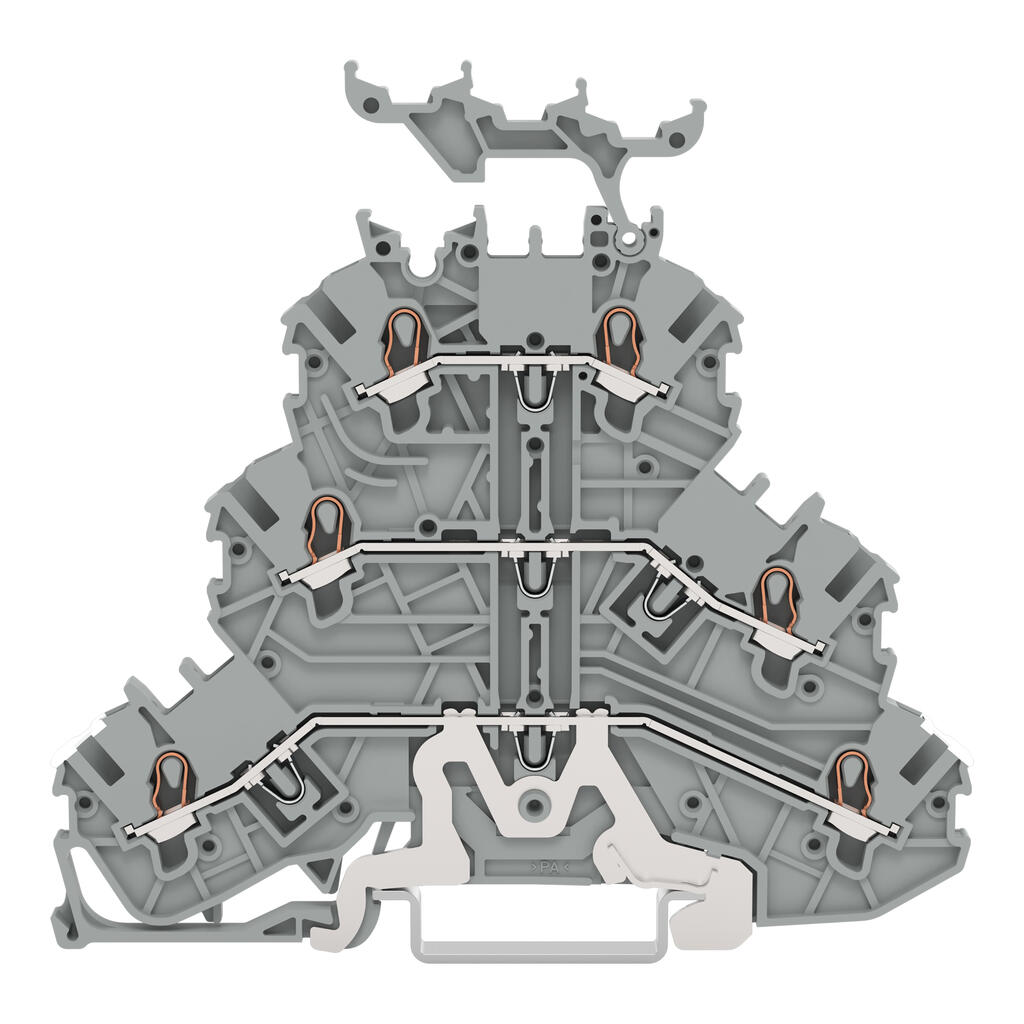

wago 2000-3258

Mounting type

DIN-rail 35 x 15

质量

15.5g

Total number of potentials

3

Number of jumper slots

6

Depth from upper-edge of DIN-rail

83.8?mm?/ 3.299?inches

Potential Marking

Shield/L/L

Marking level

Center/side marking

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Fire load

0.271MJ

Processing temperature

-35 … +85?°C

Continuous operating temperature

-60 … +105?°C

ETIM 9.0

EC000897

ETIM 8.0

EC000897

ECCN

NO US CLASSIFICATION

PU (SPU)

40?pcs

Packaging type

Box

Country of origin

PL

GTIN

4066966386554

Customs tariff number

85369010000

RoHS Compliance Status

Compliant,No Exemption

Ratings per

IEC/EN 60664-1

Rated voltage (III / 3)

500V

Rated impulse voltage (III / 3)

6kV

Legend (ratings)

(III / 3) ? Overvoltage category III / Pollution degree 3

Reference hazardous areas

See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”

Power loss, per pole (potential)

2.298W

Rated current I_N for specified power loss

24A

Resistance value for specified, current-dependent power loss

0.001Ω

Connection technology

Push-in CAGE CLAMP?

Total number of connection points

3

Actuation type

Operating tool

Actuation direction 1

Operation parallel to conductor entry

Connectable conductor materials

Copper

Nominal cross-section

1 mm2

Solid conductor

0.14 … 1.5?mm2?/ 24 … 16?AWG

Solid conductor; push-in termination

0.5?mm2?/ 20?AWG

Stranded conductor

0.14 … 1.5?mm2?/ 24 … 16?AWG

Fine-stranded conductor

0.14 … 1.5?mm2?/ 24 … 16?AWG

Fine-stranded conductor; with insulated ferrule

0.5 … 0.75?mm2?/ 20 … 18?AWG

Fine-stranded conductor; with ferrule; push-in termination

0.5?mm2?/ 20?AWG

Note (conductor cross-section)

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

Strip length

9 … 11?mm?/ 0.35 … 0.43?inches

Number of connection points 2

3

颜色

gray

Number of levels

3

Rated current

13.5A

宽度

3.5?mm?/ 0.138?inches

高度

93.6?mm?/ 3.685?inches
