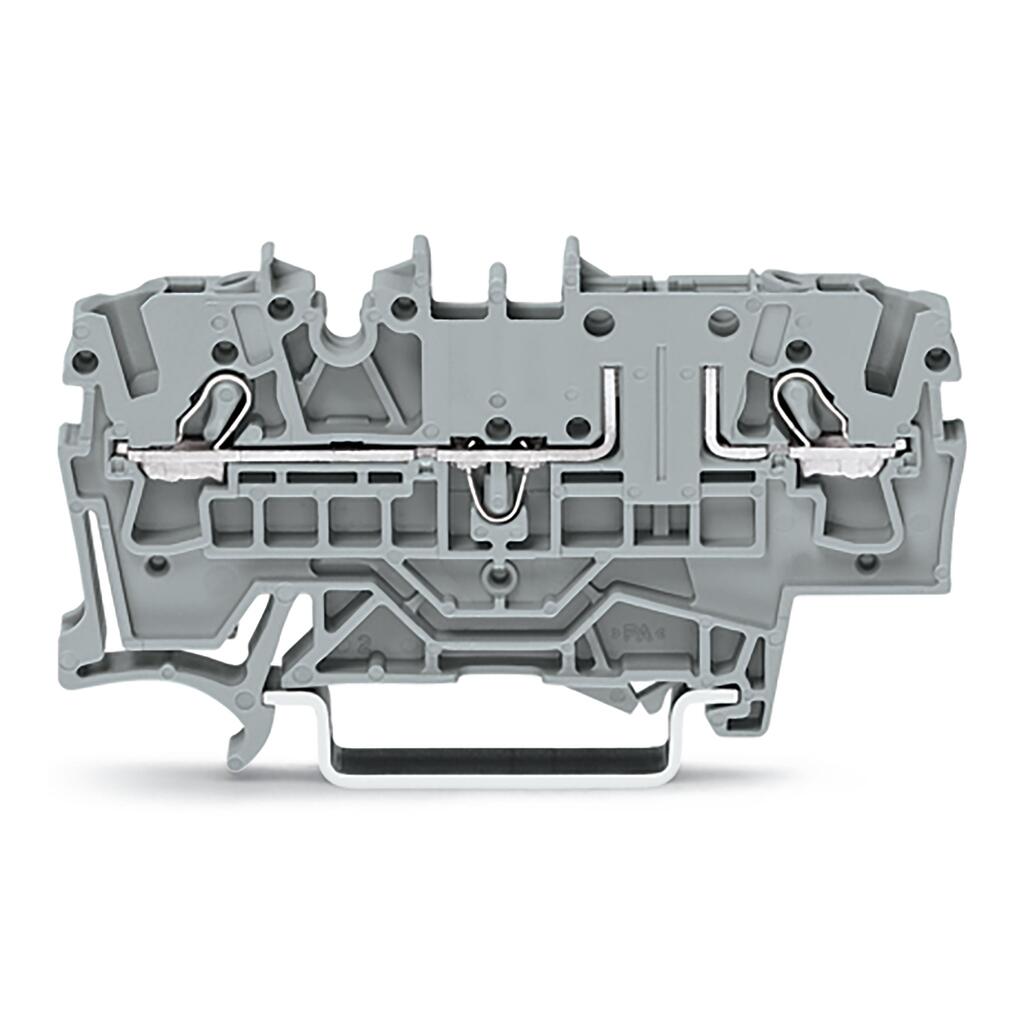

wago 2002-1661/099-000

Mounting type

DIN-35 rail

质量

9g

Clamping units

2

Total number of potentials

2

Number of jumper slots

2

Depth from upper-edge of DIN-rail

32.9?mm?/ 1.295?inches

Marking level

Center/side marking

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Rated voltage UL (Use Group B)

300V

Rated current UL (Use Group B)

15A

Rated voltage UL (Use Group C)

300V

Rated current UL (Use Group C)

15A

Rated voltage CSA (Use Group B)

300V

Rated current CSA (Use Group B)

15A

Rated voltage CSA (Use Group C)

300V

Rated current CSA (Use Group C)

15A

Reference hazardous areas

See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”

Rated voltage EN (Ex e II)

440V

Rated current (Ex e II)

17A

Power loss, per pole (potential)

0.341W

Rated current I_N for specified power loss

16A

Resistance value for specified, current-dependent power loss

0.001Ω

Connection technology

Push-in CAGE CLAMP?

Actuation type

Operating tool

Connectable conductor materials

Copper

Nominal cross-section

2.5 mm2

Solid conductor

0.25 … 4?mm2?/ 22 … 12?AWG

Solid conductor; push-in termination

0.75 … 4?mm2?/ 18 … 12?AWG

Fine-stranded conductor

0.25 … 4?mm2?/ 22 … 12?AWG

Fine-stranded conductor; with insulated ferrule

0.25 … 2.5?mm2?/ 22 … 14?AWG

Fine-stranded conductor; with ferrule; push-in termination

1 … 2.5?mm2?/ 18 … 14?AWG

Note (conductor cross-section)

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

Strip length

10 … 12?mm?/ 0.39 … 0.47?inches

Wiring direction

Front-entry wiring

Approvals per

CSA 22.2 No 158

Legend (ratings)

(III / 3) ? Overvoltage category III / Pollution degree 3

Rated impulse voltage (III / 3)

6kV

Rated voltage (III / 3)

400V

Ratings per

ATEX: KIWA 17 ATEX 0030 U / IECEx: KIWA 17.0014U (Ex ec IIC Gc)

RoHS Compliance Status

Compliant,No Exemption

Customs tariff number

85369010000

GTIN

4055143897563

Country of origin

DE

Packaging type

Box

PU (SPU)

50?pcs

ECCN

NO US CLASSIFICATION

ETIM 8.0

EC000897

ETIM 9.0

EC000897

Product Group

22 (TOPJOB S)

Continuous operating temperature

-60 … +105?°C

Processing temperature

-35 … +85?°C

Fire load

0.218MJ

Flammability class per UL94

V0

颜色

gray

Number of levels

1

Rated current

16A

宽度

5.2?mm?/ 0.205?inches

高度

66.1?mm?/ 2.602?inches
