wago 2002-1764

Name: 2002-1764
Brand: wago
SKU: 2685-2002-1764
Availability: InStock
Rating: 5 (1 reviews)

收藏
对比

型号

2002-1764

品牌

wago

utmel 编号

2685-2002-1764

商品类别

无类别的

封装

交货地

大陆

交期（工作日）

立即发货

ROHS

ECAD

简介

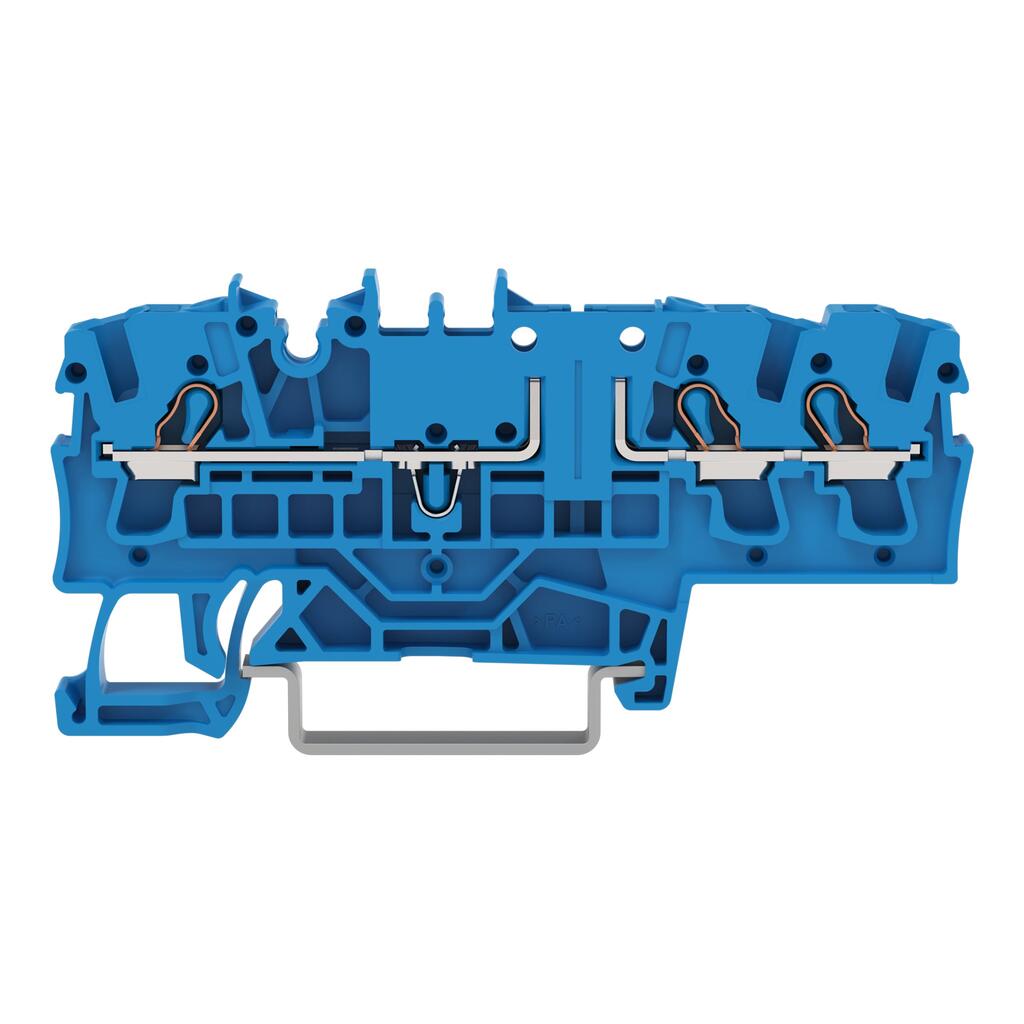

3-conductor carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm2; Push-in CAGE CLAMP?; 2,50 mm2; blue

起订量

1最小包装量--

添加到询价列表

2002-1764 wago 3-conductor carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm2; Push-in CAGE CLAMP?; 2,50 mm2; blue

请发送询价，我们将立即回复。

库存:

请发送询价，我们将立即回复。

* 联系人姓名

* 电话

* 邮箱

* 公司名称

* 数量

在线咨询

2002-1764详情

技术参数

wago 2002-1764重要参数规格及、参数值，及相似型号如下：

参数名

参数值

全选
参数名

参数值

全选
Mounting type

DIN-35 rail
质量

8.2g
Clamping units

3
Total number of potentials

2
Number of jumper slots

2
Depth from upper-edge of DIN-rail

32.9?mm?/ 1.295?inches
Marking level

Center/side marking
Note (material data)

Information on material specifications can be found here
Material group

I
Insulation material (main housing)

Polyamide (PA66)
Flammability class per UL94

V0
Fire load

0.219MJ
Processing temperature

-35 … +85?°C
Continuous operating temperature

-60 … +105?°C
ETIM 9.0

EC000897
ETIM 8.0

EC000897
ECCN

NO US CLASSIFICATION
PU (SPU)

50?pcs
Packaging type

Box
Country of origin

CN
GTIN

4066966323955
Customs tariff number

85369010000
RoHS Compliance Status

Compliant,No Exemption
Ratings per

ATEX: KIWA 17 ATEX 0030 U / IECEx: KIWA 17.0014U (Ex ec IIC Gc)
Rated voltage (III / 3)

400V
Rated impulse voltage (III / 3)

6kV
Legend (ratings)

(III / 3) ? Overvoltage category III / Pollution degree 3
Approvals per

CSA 22.2 No 158
Rated voltage UL (Use Group B)

300V
Rated current UL (Use Group B)

15A
Rated voltage UL (Use Group C)

300V
Rated current UL (Use Group C)

15A
Rated voltage CSA (Use Group B)

300V
Rated current CSA (Use Group B)

15A
Rated voltage CSA (Use Group C)

300V
Rated current CSA (Use Group C)

15A
Reference hazardous areas

See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”
Rated voltage EN (Ex e II)

440V
Rated current (Ex e II)

17A
Power loss, per pole (potential)

0.341W
Rated current I<sub>N</sub> for specified power loss

16A
Resistance value for specified, current-dependent power loss

0.001Ω
Connection technology

Push-in CAGE CLAMP?
Actuation type

Operating tool
Connectable conductor materials

Copper
Nominal cross-section

2.5 mm2
Solid conductor

0.25 … 4?mm2?/ 22 … 12?AWG
Solid conductor; push-in termination

0.75 … 4?mm2?/ 18 … 12?AWG
Fine-stranded conductor

0.25 … 4?mm2?/ 22 … 12?AWG
Fine-stranded conductor; with insulated ferrule

0.25 … 2.5?mm2?/ 22 … 14?AWG
Fine-stranded conductor; with ferrule; push-in termination

1 … 2.5?mm2?/ 18 … 14?AWG
Note (conductor cross-section)

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length

10 … 12?mm?/ 0.39 … 0.47?inches
Wiring direction

Front-entry wiring
颜色

blue
Number of levels

1
Rated current

16A
宽度

5.2?mm?/ 0.205?inches
高度

76.8?mm?/ 3.024?inches
