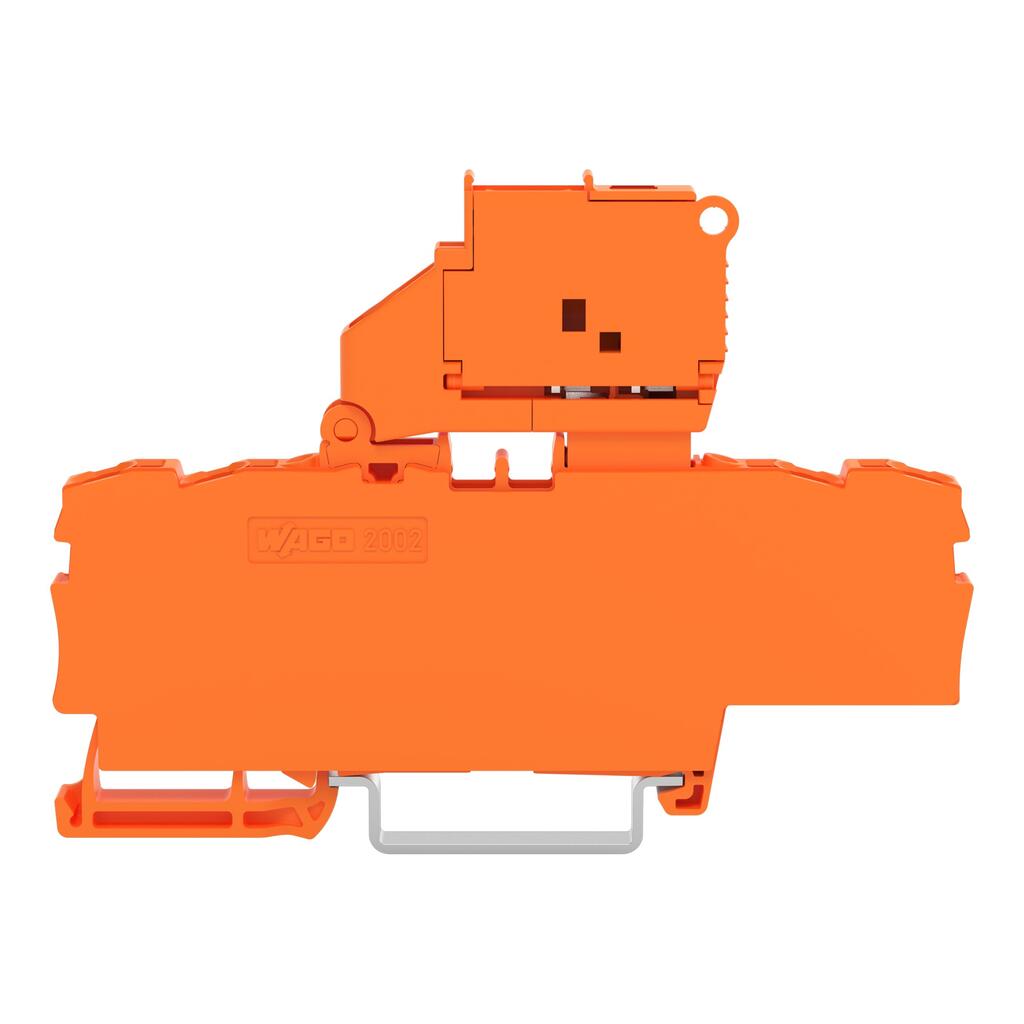

wago 2002-1812/1000-867

Mounting type

DIN-35 rail

质量

16.5g

Clamping units

4

Total number of potentials

1

Number of jumper slots

2

Depth from upper-edge of DIN-rail

57.6?mm?/ 2.268?inches

Marking level

Center/side marking

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Fire load

0.273MJ

Processing temperature

-35 … +85?°C

Continuous operating temperature

-60 … +105?°C

ETIM 9.0

EC000899

ETIM 8.0

EC000899

ECCN

NO US CLASSIFICATION

PU (SPU)

50?pcs

Packaging type

Box

Country of origin

CN

GTIN

4066966312966

Customs tariff number

85369095000

CAS-No.

1303-86-2

REACH Candidate List Substance

Diboron trioxide

RoHS Compliance Status

Compliant,With Exemption

RoHS Exemption

7(a)

SCIP notification number (Austria)

44db66a5-ebc3-4397-a37d-eb4c7d7a5d54

SCIP notification number (Belgium)

f70498e2-5d04-4a3e-b853-1c3cfab25991

SCIP notification number (Bulgaria)

2f29fff2-3510-46f5-9ce5-5c777d7c74d0

SCIP notification number (Czech Republic)

92f3fcb1-71ea-47d0-8d14-16ae45d549ff

SCIP notification number (Denmark)

3932c604-e83b-4890-a7e8-b9d30b9e86ac

SCIP notification number (Finland)

29aa2bf9-7970-4e3e-bfca-3ac84aea3f6a

SCIP notification number (France)

03848425-5bef-4688-81d6-c46ad301bca2

SCIP notification number (Germany)

642fc993-90c8-4dda-88c1-8b06c4462bec

SCIP notification number (Hungary)

492c0e98-ff14-4122-800f-392358dfe5b5

SCIP notification number (Italy)

19ea2768-90e8-4471-bfb3-cb6d902e7070

SCIP notification number (Netherlands)

1851e9f1-cf7c-49f3-b0cb-a35bf0d77ac3

SCIP notification number (Poland)

26c38b69-98b7-4d17-8bbe-990f57d9f056

SCIP notification number (Romania)

c0b298c3-a53d-4861-8052-25f6aed697f8

SCIP notification number (Sweden)

77e7f120-ad63-41c7-b1d0-b56da40c2b87

Ratings per

ATEX: KIWA 17 ATEX 0030 U / IECEx: KIWA 17.0014U (Ex ec IIC Gc)

Rated voltage (III / 3)

250V

Rated impulse voltage (III / 3)

6kV

Blown fuse indication

120 V

Legend (ratings)

(III / 3) ? Overvoltage category III / Pollution degree 3

Ratings (note)

Electrical ratings are given by the fuse and blown fuse indication.

Rated current (note)

Leakage current in case of a blown fuse: LED 2 mA

Approvals per

CSA 22.2 No 158

Rated voltage UL (Use Group B)

120V

Rated current UL (Use Group B)

10A

Rated voltage UL (Use Group C)

120V

Rated current UL (Use Group C)

10A

Rated voltage UL (Use Group D)

120V

Rated current UL (Use Group D)

10A

Rated voltage CSA (Use Group B)

250V

Rated current CSA (Use Group B)

6.3A

Rated voltage CSA (Use Group C)

120V

Rated current CSA (Use Group C)

6.3A

Reference hazardous areas

See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”

Rated voltage EN (Ex e II)

120V

Rated current (Ex e II)

6.3A

Power loss (max.) P_{l (max.)} (note)

When selecting glass cartridge fuses, make sure that the maximum power loss listed below is not exceeded. The power loss is determined according to IEC or EN?60947-7-3/VDE 0611-6 at 23°C. The temperature rise of the terminal block must be checked according to their application and mounting. Higher ambient temperatures represent an additional impact on miniature fuses. Therefore, in such applications, the rated current must be reduced if necessary. More details are available from the manufacturers.

Power loss P_l max. overload and short-circuit protection (individual arrangement)

1.6W

Power loss P_l max. overload and short-circuit protection (group arrangement)

1.6W

Power loss P_l max. short-circuit protection (individual arrangement)

2.5W

Power loss P_l max. short-circuit protection (group arrangement)

2.5W

Fuse receptacle

pivoting

Connection technology

Push-in CAGE CLAMP?

Actuation type

Operating tool

Connectable conductor materials

Copper

Nominal cross-section

2.5 mm2

Solid conductor

0.25 … 4?mm2?/ 22 … 12?AWG

Solid conductor; push-in termination

0.75 … 4?mm2?/ 18 … 12?AWG

Fine-stranded conductor

0.25 … 4?mm2?/ 22 … 12?AWG

Fine-stranded conductor; with insulated ferrule

0.25 … 2.5?mm2?/ 22 … 14?AWG

Fine-stranded conductor; with ferrule; push-in termination

1 … 2.5?mm2?/ 18 … 14?AWG

Note (conductor cross-section)

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

Strip length

10 … 12?mm?/ 0.39 … 0.47?inches

Wiring direction

Front-entry wiring

颜色

orange

Number of levels

1

Fuse type

Cylindrical fuse; 5 x 20 mm

Rated current

6.3A

宽度

6.2?mm?/ 0.244?inches

高度

87.5?mm?/ 3.445?inches
