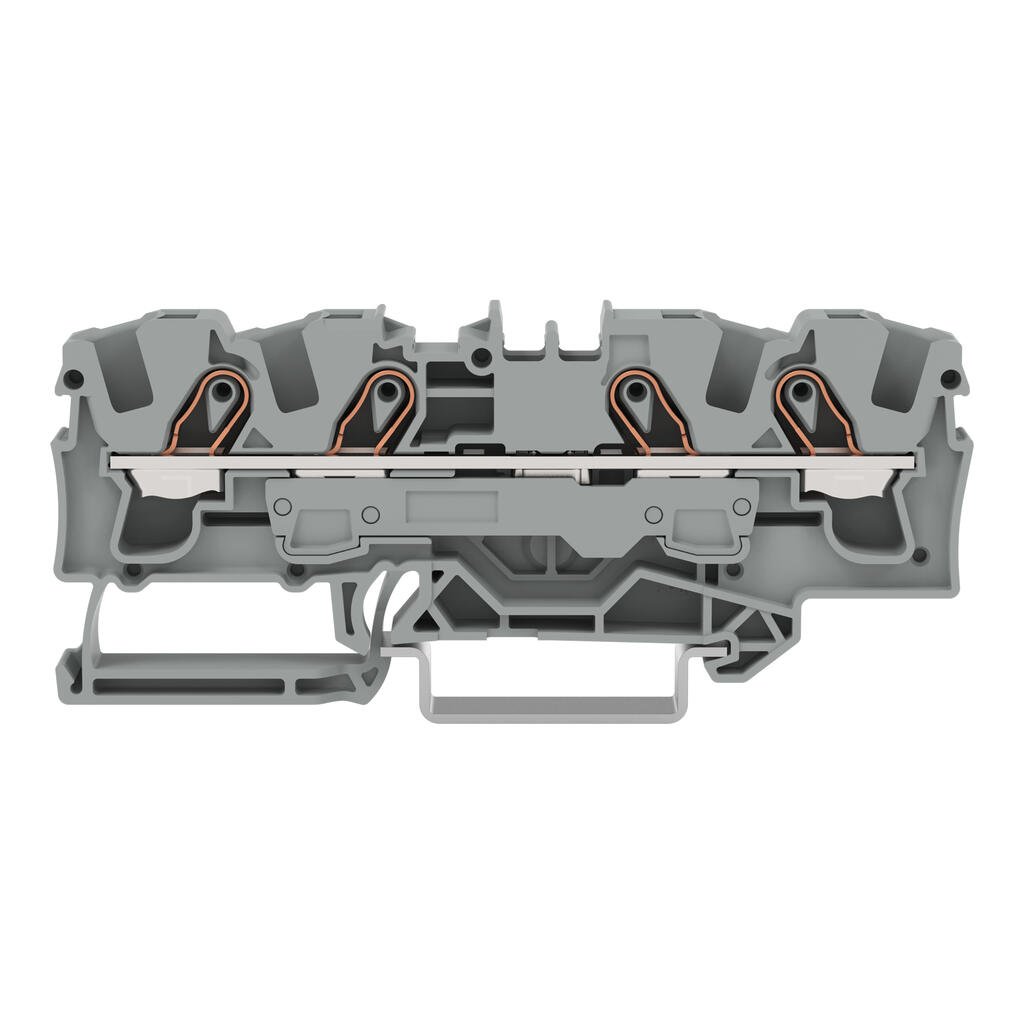

wago 2006-1402

Mounting type

DIN-35 rail

质量

16.3g

Clamping units

4

Total number of potentials

1

Number of jumper slots

2

Depth from upper-edge of DIN-rail

32.9 mm / 1.295 inches

Marking level

Center/side marking

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Fire load

0.284MJ

Processing temperature

-35 … +85 °C

Continuous operating temperature

-60 … +105 °C

ECCN

NO US CLASSIFICATION

PU (SPU)

25 pcs

Packaging type

Box

Country of origin

DE

GTIN

4066966596595

Customs tariff number

85369010000

RoHS Compliance Status

Compliant,No Exemption

Ratings per

ATEX: PTB 05 ATEX 1030 U / IECEx: PTB 05.0014U (Ex eb IIC Gb)

Rated voltage (III / 3)

800V

Rated impulse voltage (III / 3)

8kV

Current at conductor cross-section (max.) mm2

53A

Legend (ratings)

(III / 3) ? Overvoltage category III / Pollution degree 3

Approvals per

CSA 22.2 No 158

Rated voltage UL (Use Group B)

600V

Rated current UL (Use Group B)

50A

Rated voltage UL (Use Group C)

600V

Rated current UL (Use Group C)

50A

Rated voltage CSA (Use Group B)

600V

Rated current CSA (Use Group B)

50A

Rated voltage CSA (Use Group C)

600V

Rated current CSA (Use Group C)

50A

Reference hazardous areas

See application instructions in section “Knowledge andDownloads – Documentation – Additional Information: Technical Section; Technical Explications”

Rated voltage EN (Ex e II)

550V

Rated current (Ex e II)

36A

Rated current (Ex e II) with jumper

33A

Rated current I_N for specified power loss

41A

Connection technology

Push-in CAGE CLAMP?

Actuation type

Operating tool

Connectable conductor materials

Copper

Nominal cross-section

6 mm2

Solid conductor

0.5 … 10 mm2 / 20 … 8 AWG

Solid conductor; push-in termination

2.5 … 10 mm2 / 14 … 8 AWG

Stranded conductor

0.5 … 10 mm2 / 20 … 8 AWG

Fine-stranded conductor

0.5 … 10 mm2 / 20 … 8 AWG

Fine-stranded conductor; with insulated ferrule

0.5 … 6 mm2 / 20 … 10 AWG

Fine-stranded conductor; with ferrule; push-in termination

2.5 … 6 mm2 / 16 … 10 AWG

Note (conductor cross-section)

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

Strip length

13 … 15 mm / 0.51 … 0.59 inches

Wiring direction

Front-entry wiring

颜色

orange

深度

39.5 mm / 1.555 inches

Number of levels

1

Rated current

41A

宽度

7.5 mm / 0.295 inches

高度

89.3 mm / 3.516 inches
