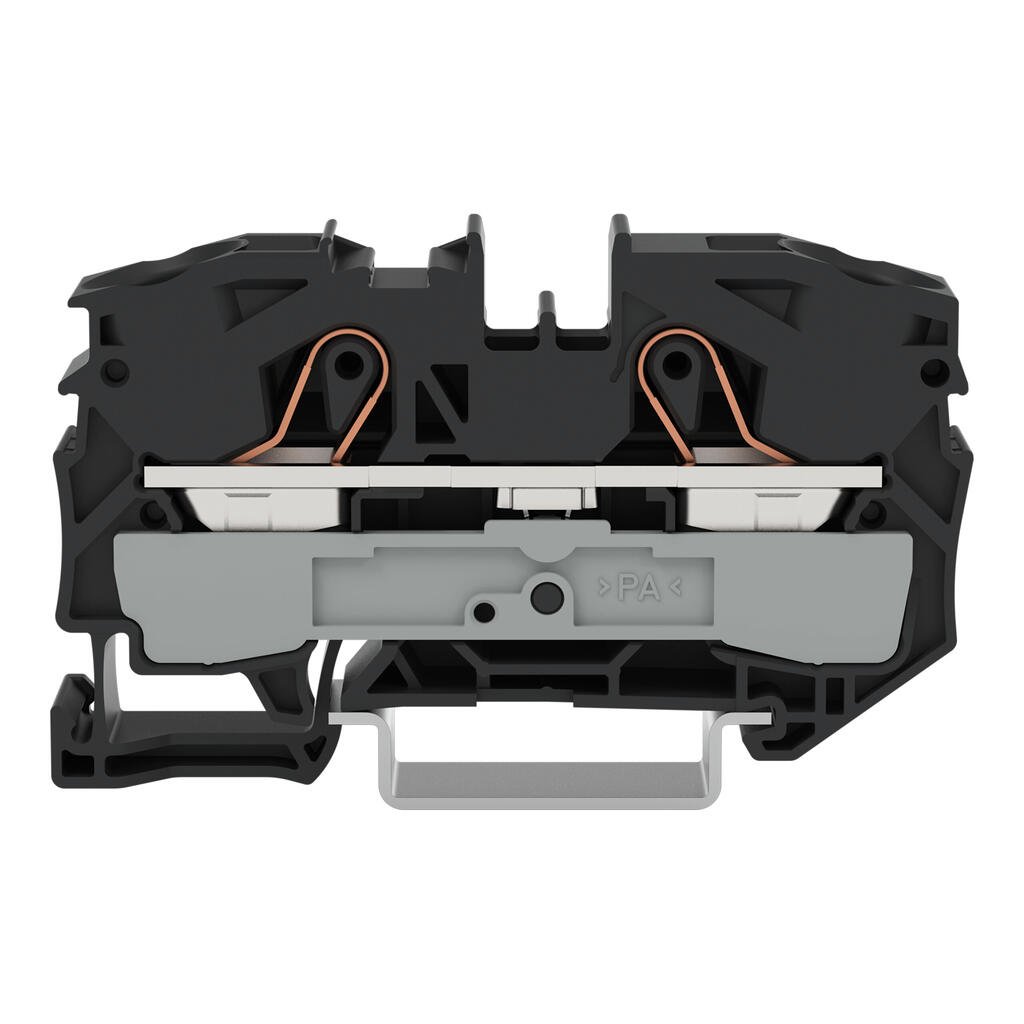

wago 2016-1205

Mounting type

DIN-35 rail

质量

22.6g

Clamping units

2

Total number of potentials

1

Number of jumper slots

2

Depth from upper-edge of DIN-rail

36.9?mm?/ 1.453?inches

Marking level

Center/side marking

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Fire load

0.447MJ

Processing temperature

-35 … +85?°C

Continuous operating temperature

-60 … +105?°C

ETIM 9.0

EC000897

ETIM 8.0

EC000897

ECCN

NO US CLASSIFICATION

PU (SPU)

20?pcs

Packaging type

Box

Country of origin

DE

GTIN

4066966311594

Customs tariff number

85369010000

RoHS Compliance Status

Compliant,No Exemption

Ratings per

ATEX: PTB 05 ATEX 1031 U / IECEx: PTB 05.0015U (Ex eb IIC Gb)

Rated voltage (III / 3)

800V

Rated impulse voltage (III / 3)

8kV

Current at conductor cross-section (max.) mm2

90A

Legend (ratings)

(III / 3) ? Overvoltage category III / Pollution degree 3

Rated current (note)

15 mm high DIN-35 rails shall be used for a current load higher than 76 A!

Approvals per

CSA 22.2 No 158

Rated voltage UL (Use Group B)

600V

Rated current UL (Use Group B)

85A

Rated voltage UL (Use Group C)

600V

Rated current UL (Use Group C)

85A

Rated voltage CSA (Use Group B)

600V

Rated current CSA (Use Group B)

80A

Rated voltage CSA (Use Group C)

600V

Rated current CSA (Use Group C)

80A

Reference hazardous areas

See application instructions in section “Knowledge andDownloads – Documentation – Additional Information: Technical Section; Technical Explications”

Rated voltage EN (Ex e II)

550V

Rated current (Ex e II)

70A

Rated current (Ex e II) with jumper

67A

Power loss, per pole (potential)

2.426W

Rated current I_N for specified power loss

76A

Resistance value for specified, current-dependent power loss

0Ω

Connection technology

Push-in CAGE CLAMP?

Actuation type

Operating tool

Connectable conductor materials

Copper

Nominal cross-section

16 mm2

Solid conductor

0.5 … 16?mm2?/ 20 … 6?AWG

Solid conductor; push-in termination

6 … 16?mm2?/ 14 … 6?AWG

Fine-stranded conductor

0.5 … 25?mm2?/ 20 … 4?AWG

Fine-stranded conductor; with insulated ferrule

0.5 … 16?mm2?/ 20 … 6?AWG

Fine-stranded conductor; with ferrule; push-in termination

6 … 16?mm2?/ 10 … 6?AWG

Note (conductor cross-section)

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.AWG specifications were converted according to IEC.

Strip length

18 … 20?mm?/ 0.71 … 0.79?inches

Wiring direction

Front-entry wiring

颜色

black

深度

43.5 mm / 1.713 inches

Number of levels

1

Rated current

76A

宽度

12?mm?/ 0.472?inches

高度

69.8?mm?/ 2.748?inches
