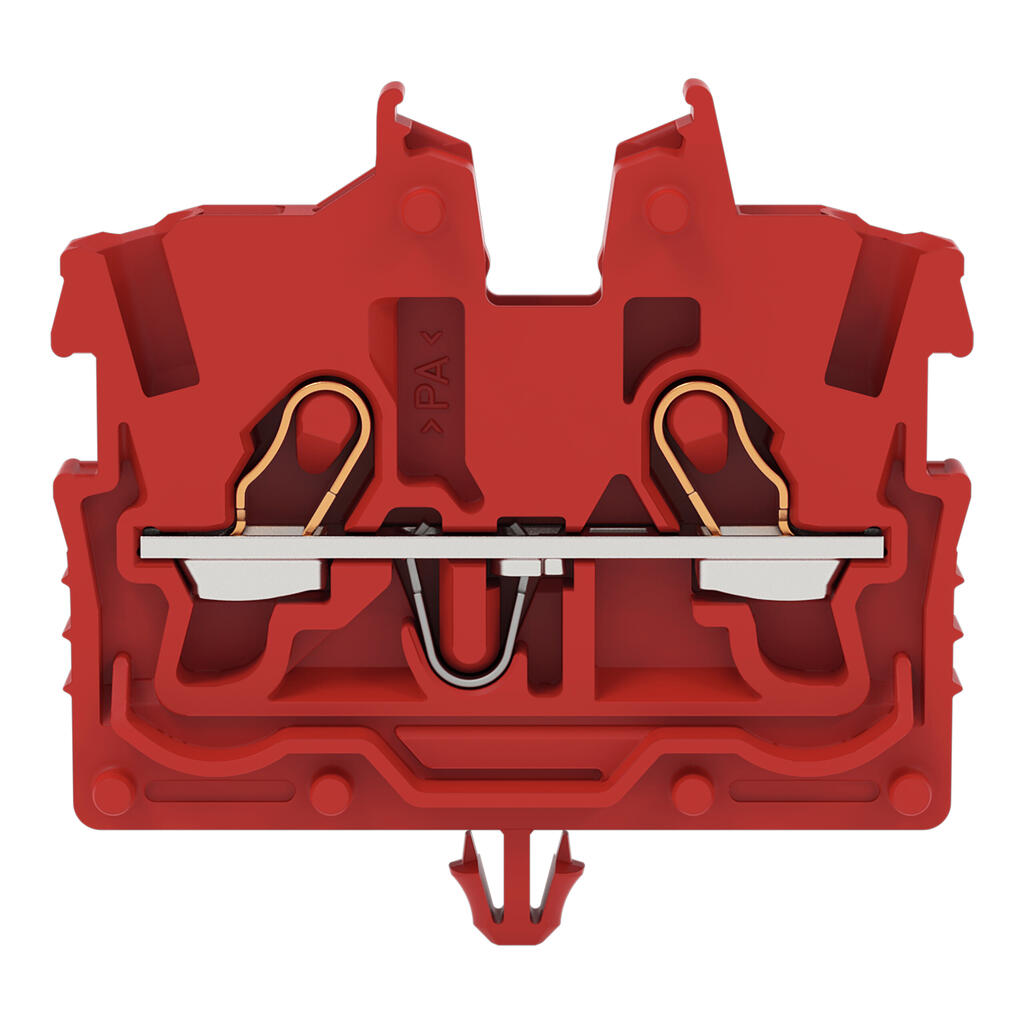

wago 2050-313

Mounting type

Snap-in foot

质量

2.4g

Clamping units

2

Total number of potentials

1

Number of jumper slots

1

Height from the surface

27.2?mm?/ 1.071?inches

Marking level

Center/side marking

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Fire load

0.047MJ

Processing temperature

-35 … +85?°C

Continuous operating temperature

-60 … +105?°C

ETIM 9.0

EC001284

ETIM 8.0

EC001284

ECCN

NO US CLASSIFICATION

PU (SPU)

100?pcs

Packaging type

Box

Country of origin

IN

GTIN

4066966312683

Customs tariff number

85369010000

RoHS Compliance Status

Compliant,No Exemption

Ratings per

ATEX: PTB 19 ATEX 1019 U / IECEx: PTB 19.0050U (Ex eb IIC Gb)

Rated voltage (III / 3)

500V

Rated impulse voltage (III / 3)

6kV

Current at conductor cross-section (max.) mm2

17.5A

Legend (ratings)

(III / 3) ? Overvoltage category III / Pollution degree 3

Approvals per

CSA 22.2 No 158

Rated voltage UL (Use Group B)

300V

Rated current UL (Use Group B)

10A

Rated voltage UL (Use Group C)

300V

Rated current UL (Use Group C)

10A

Rated voltage CSA (Use Group B)

300V

Rated current CSA (Use Group B)

10A

Rated voltage CSA (Use Group C)

300V

Rated current CSA (Use Group C)

10A

Reference hazardous areas

See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”

Rated voltage EN (Ex e II)

352V

Rated current (Ex e II)

13.5A

Rated current (Ex e II) with jumper

12A

Power loss, per pole (potential)

0.434W

Rated current I_N for specified power loss

13.5A

Resistance value for specified, current-dependent power loss

0.002Ω

Connection technology

Push-in CAGE CLAMP?

Actuation type

Operating tool

Connectable conductor materials

Copper

Nominal cross-section

1 mm2

Solid conductor

0.14 … 1.5?mm2?/ 24 … 16?AWG

Solid conductor; push-in termination

0.5 … 1.5?mm2?/ 20 … 16?AWG

Fine-stranded conductor

0.14 … 1.5?mm2?/ 24 … 16?AWG

Fine-stranded conductor; with insulated ferrule

0.14 … 1 mm2 / 24 … 18 AWG

Fine-stranded conductor; with uninsulated ferrule

0.14 … 1 mm2 / 24 … 18 AWG

Fine-stranded conductor; with ferrule; push-in termination

0.5 … 1 mm2 / 20 … 18 AWG

Note (conductor cross-section)

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

Strip length

9 … 11?mm?/ 0.35 … 0.43?inches

Wiring direction

Front-entry wiring

颜色

red

深度

33.2?mm?/ 1.307?inches

Number of levels

1

Rated current

13.5A

宽度

3.5?mm?/ 0.138?inches
