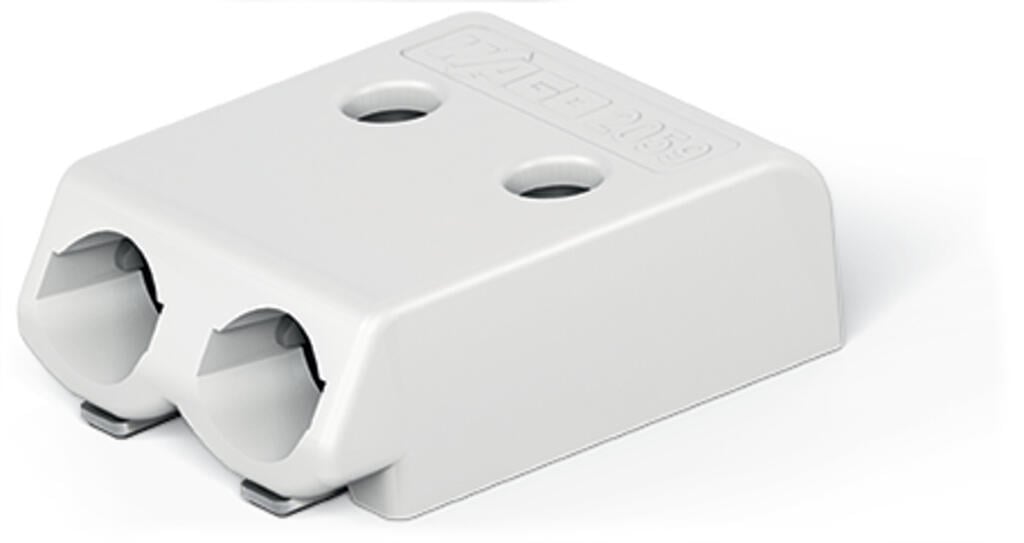

wago 2059-302/998-603

Contact plating

Tin

质量

0.2g

Recommendation

Recommendation for stencil:150 μm material thickness; Pattern layout identical to solder pad layout

Clamping units

2

Total number of potentials

2

Number of connection types

1

Pin spacing

3 mm / 0.118 inches

Reel diameter of tape-and-reel packaging

380mm

Tape width

16mm

PCB contact

SMD

Solder pin arrangement

over the entire terminal strip (in-line)

Number of solder pins per potential

2

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyphthalamide (PPA GF)

Flammability class per UL94

V0

Contact Materials

Copper alloy

Fire load

0.005MJ

Limit temperature range

-60 … +105 °C

ETIM 9.0

EC001284

ETIM 8.0

EC001284

ECCN

NO US CLASSIFICATION

PU (SPU)

29400 (2450) pcs

Packaging type

Box

Country of origin

CH

GTIN

4066966483178

Customs tariff number

85369010000

RoHS Compliance Status

Compliant,No Exemption

Ratings per

IEC/EN 60664-1

Rated voltage (III / 3)

63V

Rated impulse voltage (III / 3)

2.5kV

Rated voltage (III/2)

160V

Rated surge voltage (III/2)

2.5kV

Nominal voltage (II/2)

320V

Rated surge voltage (II/2)

2.5kV

Legend (ratings)

(III / 2) ? Overvoltage category III / Pollution degree 2

Rated voltage (UL 1977)

250V

Rated current UL 1977

3A

Connection technology

PUSH WIRE?

Actuation type

Operating tool

Solid conductor

0.14 … 0.34 mm2 / 26 … 22 AWG

Note (conductor cross-section)

For conductors (26 AWG) that are not rigid enough, the clamping unit must be opened using an operating tool.

Strip length

4 … 5.5 mm / 0.16 … 0.22 inches

Conductor connection direction to PCB

0°

Solid conductor 2

0.5 mm2 / 20 AWG

Note (conductor cross-section) 2

No reconnection of smaller conductor cross-sections (0.5 mm2/20 AWG)

Strip length 2

6 … 7.5 mm / 0.24 … 0.3 inches

Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment

DIN EN 50155 (VDE 0115-200):2022-06

Spectrum/Installation location

Service life test, Category?1, Class?A/B

Function test with noise-like vibration

Test passed according to Section 8 of the standard

Acceleration

5g (highest test level used for all axes)

Test duration per axis

5 h

Test directions

X, Y and Z axes

Monitoring for contact faults/interruptions

Passed

Voltage drop measurement before and after each axis

Passed

Simulated service life test through increased levels of noise-like vibration

Test passed according to Section 9 of the standard

Extended test scope: Monitoring for contact faults/interruptions

Passed

Extended test scope: Voltage drop measurement before and after each axis

Passed

Shock test

Test passed according to Section 10 of the standard

Shock form

Half sine

Shock duration

30 ms

Number of shocks per axis

3 pos. und 3 neg.

Vibration and shock stress for rolling stock equipment

Passed

颜色

white

深度

7.9 mm / 0.311 inches

频率

f1= 5 Hz to f2= 150 Hz

注意

Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, solder paste), trial runs are recommended to ensure product and process compatibility under actual manufacturing conditions.

Number of levels

1

Number of poles

2

Rated current

3A

宽度

5.9 mm / 0.232 inches

高度

2.7 mm / 0.106 inches
