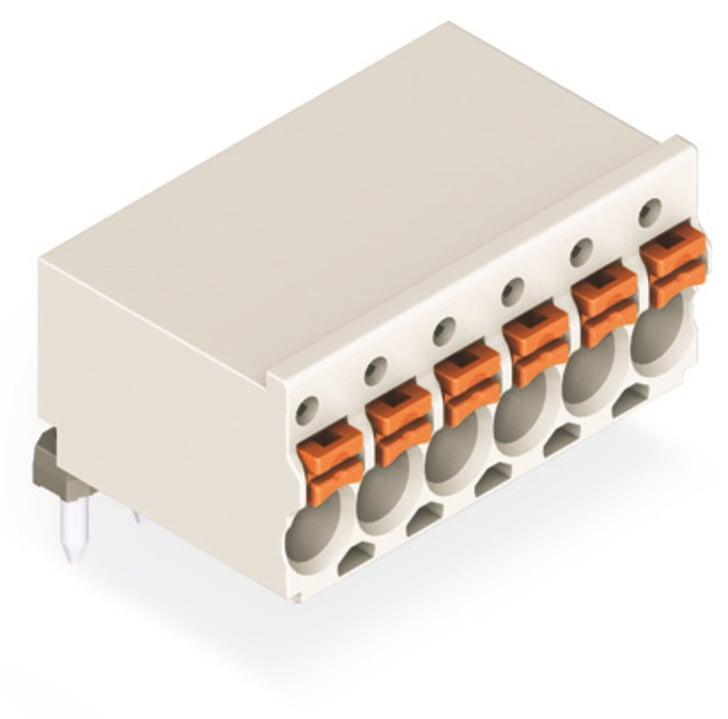

wago 2091-2372/200-000

Contact plating

Silver

质量

1.6g

Safety information

ThepicoMAX?Pluggable Connection Systemincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.

Safety information 2

The use of ferrules is recommended for applications with higher requirements.Effective cable securing must be used to prevent undue force on the clamping unit.

Clamping units

2

Total number of potentials

2

Number of connection types

1

Pin spacing

3.5 mm / 0.138 inches

Solder pin length

2.4mm

Solder pin diameter

1mm

Plated through-hole diameter (THR)

1.2(+0.1)mm

Variable coding

无

Anti-rotation protection

有

Contact type (pluggable connector)

Female connector/socket

Connector (connection type)

for PCB

Mismating protection

无

Plugging without loss of pin spacing

有

Mating direction to the PCB

0°

Locking of plug-in connection

none

PCB contact

THR

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyphthalamide (PPA GF)

Flammability class per UL94

V0

Clamping spring material

Chrome-nickel spring steel (CrNi)

Contact Materials

Electrolytic copper (ECu)

Fire load

0.021MJ

Limit temperature range

-60 … +100 °C

Processing temperature

-35 … +60 °C

ETIM 9.0

EC002637

ETIM 8.0

EC002637

ECCN

NO US CLASSIFICATION

PU (SPU)

200 pcs

Packaging type

Box

Country of origin

DE

GTIN

4066966541731

Customs tariff number

85366990990

RoHS Compliance Status

Compliant,No Exemption

Ratings per

IEC/EN 60664-1

Rated voltage (III / 3)

160V

Rated impulse voltage (III / 3)

2.5kV

Rated voltage (III/2)

160V

Rated surge voltage (III/2)

2.5kV

Nominal voltage (II/2)

320V

Rated surge voltage (II/2)

2.5kV

Legend (ratings)

(III / 2) ? Overvoltage category III / Pollution degree 2

Approvals per

UL 1059

Rated voltage UL (Use Group B)

300V

Rated current UL (Use Group B)

10A

Rated voltage UL (Use Group D)

300V

Rated current UL (Use Group D)

10A

Connection technology

Push-in CAGE CLAMP?

Actuation type

Push-button

Actuation direction 1

Operation parallel to conductor entry

Solid conductor

0.2 … 1.5 mm2 / 24 … 14 AWG

Fine-stranded conductor

0.2 … 1.5 mm2 / 24 … 14 AWG

Fine-stranded conductor; with insulated ferrule

0.25 … 0.75 mm2

Fine-stranded conductor; with uninsulated ferrule

0.25 … 1.5 mm2

Strip length

8 … 9 mm / 0.31 … 0.35 inches

Conductor connection direction to PCB

0°

颜色

light gray

深度

14 mm / 0.551 inches

Number of levels

1

Number of poles

2

Rated current

10A

宽度

7 mm / 0.276 inches

高度

11.4 mm / 0.449 inches
