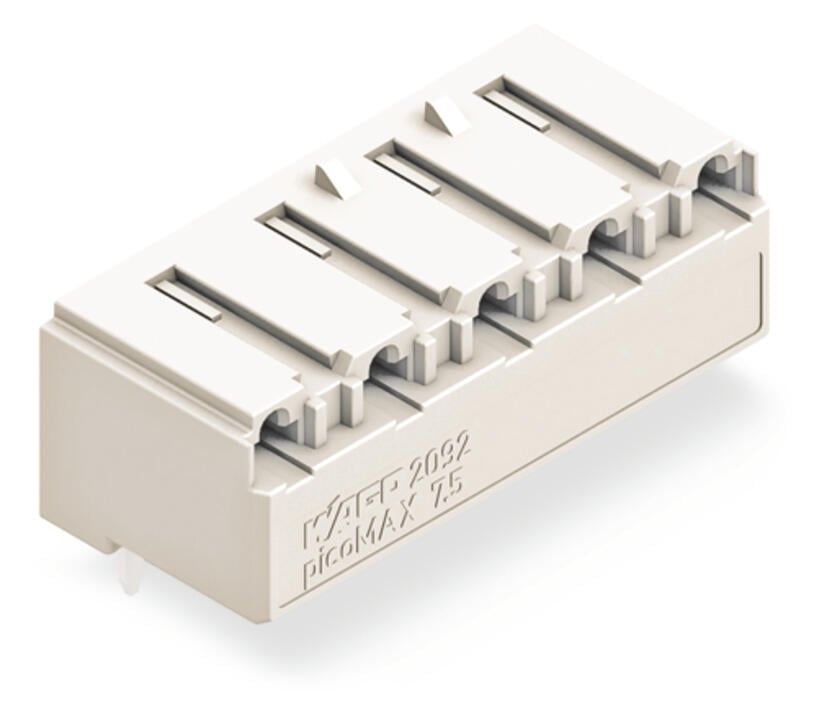

wago 2092-3325/200-000

Contact plating

Tin

质量

6.2g

Safety information

ThepicoMAX?Pluggable Connection Systemincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.

Clamping units

5

Total number of potentials

5

Number of connection types

1

Pin spacing

7.5 mm / 0.295 inches

Height from the surface

13.6 mm / 0.535 inches

Solder pin length

2.4mm

Solder pin dimensions

0.4 x 1.3 mm

Plated through-hole diameter (THR)

1.5(+0.1)mm

Variable coding

有

Anti-rotation protection

有

Contact type (pluggable connector)

Female connector/socket

Connector (connection type)

for PCB

Mismating protection

无

Plugging without loss of pin spacing

有

Mating direction to the PCB

0°

Locking of plug-in connection

none

PCB contact

THR

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyphthalamide (PPA GF)

Flammability class per UL94

V0

Contact Materials

Copper alloy

MSL per J-STD 020D

1

Limit temperature range

-60 … +100 °C

Processing temperature

-35 … +60 °C

ECCN

NO US CLASSIFICATION

PU (SPU)

100 pcs

Packaging type

Box

Country of origin

DE

GTIN

4055143910255

Customs tariff number

85366990990

RoHS Compliance Status

Compliant,No Exemption

Ratings per

IEC/EN 60664-1

Rated voltage (III / 3)

400V

Rated impulse voltage (III / 3)

6kV

Rated voltage (III/2)

630V

Rated surge voltage (III/2)

6kV

Nominal voltage (II/2)

1000V

Rated surge voltage (II/2)

6kV

Rated current UL (Use Group D)

10A

Rated voltage UL (Use Group D)

300V

Rated current UL (Use Group B)

15A

Rated voltage UL (Use Group B)

300V

Approvals per

UL 1059

Legend (ratings)

(III / 2) ? Overvoltage category III / Pollution degree 2

颜色

light gray

深度

15.4 mm / 0.606 inches

Number of levels

1

Number of poles

5

Rated current

16A

宽度

27.5 mm / 1.083 inches

高度

16 mm / 0.63 inches
