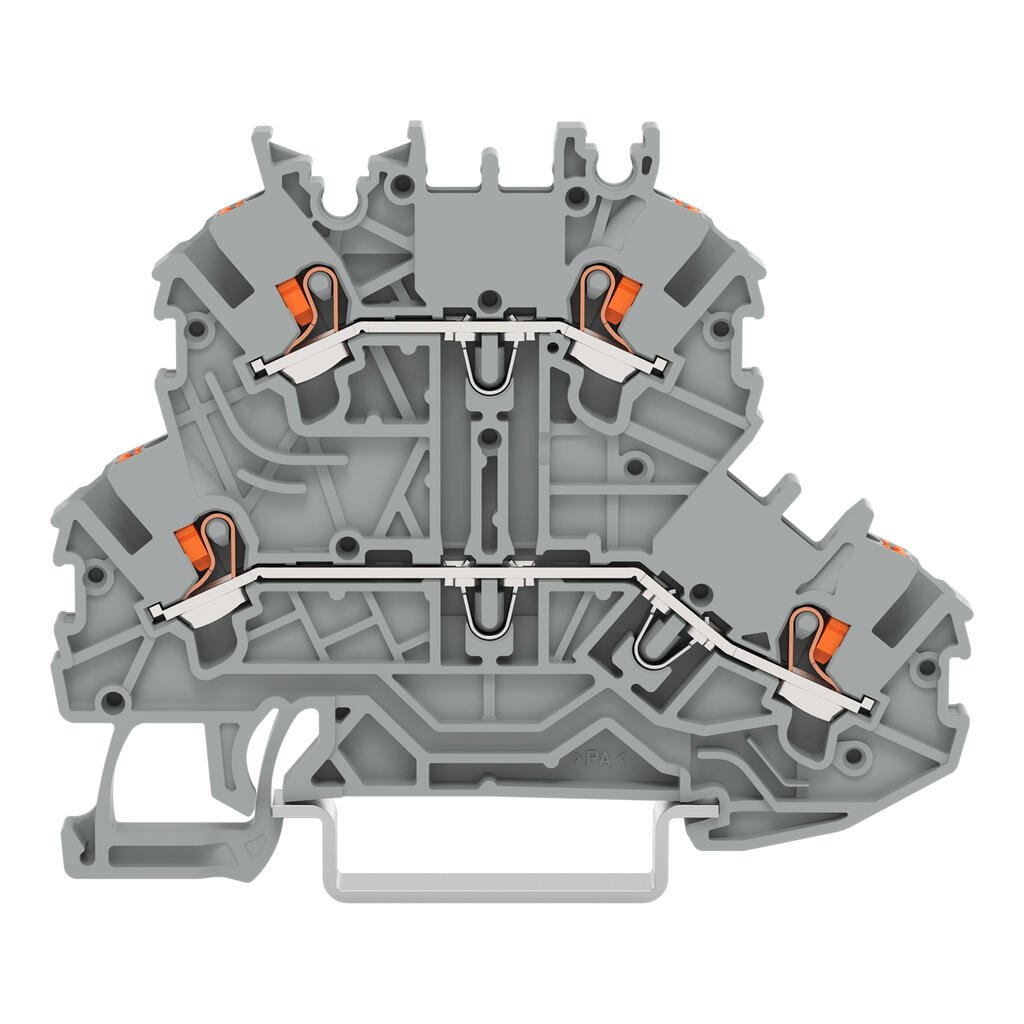

wago 2200-2201/352-000

Name: 2200-2201/352-000
Brand: wago
SKU: 2685-2200-2201/352-000
Availability: InStock
Rating: 5 (1 reviews)

收藏
对比

型号

2200-2201/352-000

品牌

wago

utmel 编号

2685-2200-2201/352-000

商品类别

无类别的

封装

交货地

大陆

交期（工作日）

立即发货

ROHS

ECAD

简介

Double-deck terminal block; with push-button; Through/through terminal block; L/L; without marker carrier; Conductor entry (lower deck), black marking; Conductor entry (upper deck), red marking; for DIN-rail 35 x 15 and 35 x 7.5; 1 mm2; Push-in CAGE CLAMP?; 1,00 mm2; gray

起订量

1最小包装量--

添加到询价列表

2200-2201/352-000 wago Double-deck terminal block; with push-button; Through/through terminal block; L/L; without marker carrier; Conductor entry (lower deck), black marking; Conductor entry (upper deck), red marking; for DIN-rail 35 x 15 and 35 x 7.5; 1 mm2; Push-in CAGE CLAMP?; 1,00 mm2; gray

请发送询价，我们将立即回复。

库存:

请发送询价，我们将立即回复。

* 联系人姓名

* 电话

* 邮箱

* 公司名称

* 数量

在线咨询

2200-2201/352-000详情

技术参数

PDF文档

wago 2200-2201/352-000重要参数规格及、参数值，及相似型号如下：

参数名

参数值

全选
参数名

参数值

全选
Mounting type

DIN-35 rail
质量

7.6g
Clamping units

4
Total number of potentials

2
Number of jumper slots

4
Depth from upper-edge of DIN-rail

51.7 mm / 2.035 inches
Potential Marking

L/L
Marking level

Center/side marking
Note (material data)

Information on material specifications can be found here
Material group

I
Insulation material (main housing)

Polyamide (PA66)
Flammability class per UL94

V0
Fire load

0.172MJ
Processing temperature

-35 … +85 °C
Continuous operating temperature

-60 … +105 °C
ECCN

NO US CLASSIFICATION
PU (SPU)

50 pcs
Packaging type

Box
Country of origin

IN
GTIN

4066966488449
Customs tariff number

85369010000
RoHS Compliance Status

Compliant,No Exemption
Ratings per

ATEX: PTB 11 ATEX 1041 U / IECEx: PTB 11.0093U (Ex eb IIC Gb)
Rated voltage (III / 3)

500V
Rated impulse voltage (III / 3)

6kV
Current at conductor cross-section (max.) mm2

16A
Legend (ratings)

(III / 3) ? Overvoltage category III / Pollution degree 3
Approvals per

CSA 22.2 No 158
Rated voltage UL (Use Group B)

300V
Rated current UL (Use Group B)

10A
Rated voltage UL (Use Group C)

300V
Rated current UL (Use Group C)

10A
Rated voltage CSA (Use Group B)

300V
Rated current CSA (Use Group B)

10A
Rated voltage CSA (Use Group C)

300V
Rated current CSA (Use Group C)

10A
Number of connection points 2

2
Wiring direction

Front-entry wiring
Strip length

9 … 11 mm / 0.35 … 0.43 inches
Note (conductor cross-section)

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Fine-stranded conductor; with ferrule; push-in termination

0.5 … 0.75 mm2 / 20 … 18 AWG
Fine-stranded conductor; with insulated ferrule

0.14 … 0.75 mm2 / 24 … 18 AWG
Fine-stranded conductor

0.14 … 1.5 mm2 / 24 … 16 AWG
Solid conductor; push-in termination

0.5 … 1.5 mm2 / 20 … 16 AWG
Solid conductor

0.14 … 1.5 mm2 / 24 … 16 AWG
Nominal cross-section

1 mm2
Connectable conductor materials

Copper
Actuation type

Push-button
Total number of connection points

2
Connection technology

Push-in CAGE CLAMP?
Resistance value for specified, current-dependent power loss

0.002Ω
Rated current I<sub>N</sub> for specified power loss

13.5A
Power loss, per pole (potential)

0.434W
Rated current (Ex e II) with jumper

12A
Rated current (Ex e II)

13A
Rated voltage EN (Ex e II)

320V
Reference hazardous areas

See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”
颜色

gray
Number of levels

2
Rated current

13.5A
宽度

3.5 mm / 0.138 inches
高度

69.7 mm / 2.744 inches
