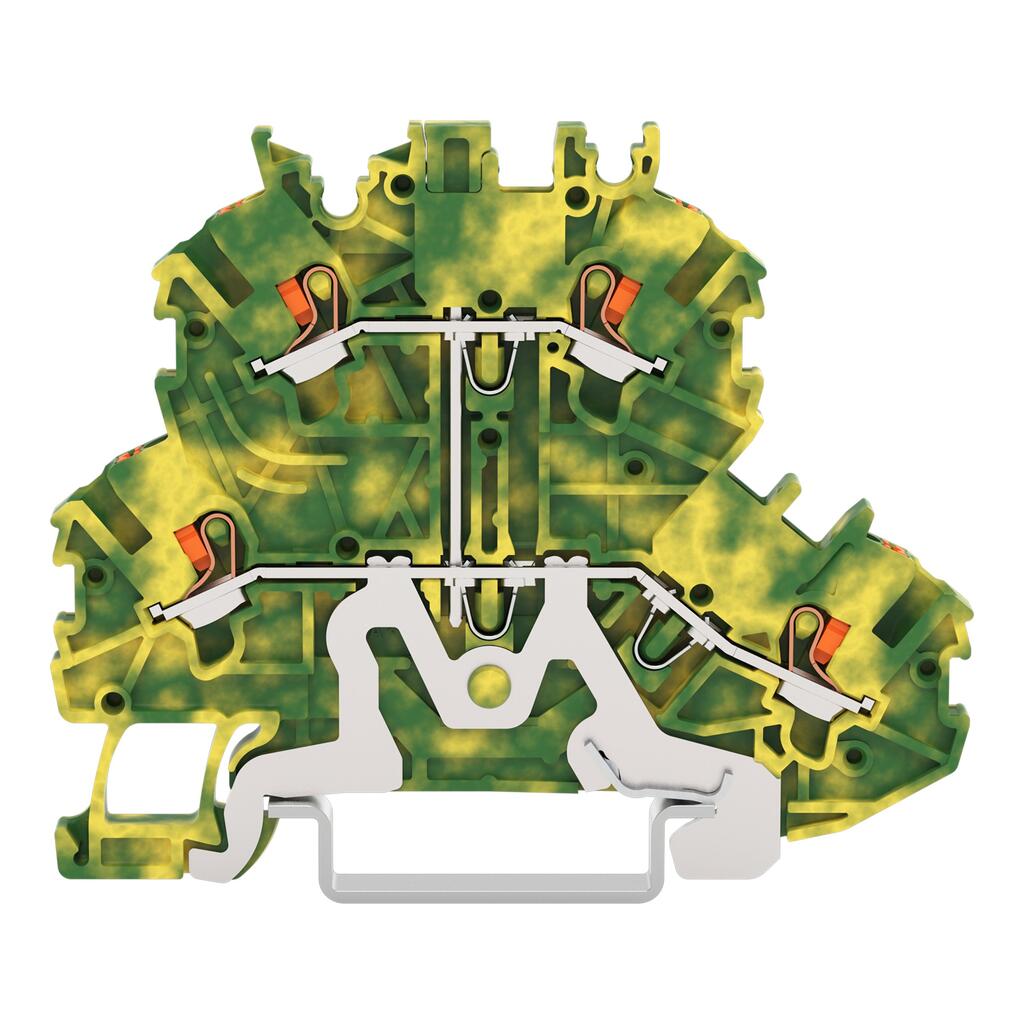

wago 2200-2207

Mounting type

DIN-35 rail

质量

10g

Clamping units

4

Total number of potentials

2

Number of jumper slots

4

Depth from upper-edge of DIN-rail

51.7 mm / 2.035 inches

Potential Marking

PE

Marking level

Center/side marking

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Fire load

0.165MJ

Processing temperature

-35 … +85 °C

Continuous operating temperature

-60 … +105 °C

ETIM 9.0

EC000897

ETIM 8.0

EC000897

ECCN

NO US CLASSIFICATION

PU (SPU)

50 pcs

Packaging type

Box

Country of origin

IN

GTIN

4066966478839

Customs tariff number

85369010000

RoHS Compliance Status

Compliant,No Exemption

Reference hazardous areas

See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”

Power loss, per pole (potential)

0.434W

Rated current I_N for specified power loss

13.5A

Resistance value for specified, current-dependent power loss

0.002Ω

Connection technology

Push-in CAGE CLAMP?

Total number of connection points

2

Actuation type

Push-button

Connectable conductor materials

Copper

Nominal cross-section

1 mm2

Solid conductor

0.14 … 1.5 mm2 / 24 … 16 AWG

Solid conductor; push-in termination

0.5 … 1.5 mm2 / 20 … 16 AWG

Fine-stranded conductor

0.14 … 1.5 mm2 / 24 … 16 AWG

Fine-stranded conductor; with insulated ferrule

0.14 … 0.75 mm2 / 24 … 18 AWG

Fine-stranded conductor; with ferrule; push-in termination

0.5 … 0.75 mm2 / 20 … 18 AWG

Note (conductor cross-section)

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

Strip length

9 … 11 mm / 0.35 … 0.43 inches

Wiring direction

Front-entry wiring

Number of connection points 2

2

颜色

green-yellow

Number of levels

2

宽度

3.5 mm / 0.138 inches

高度

69.7 mm / 2.744 inches
