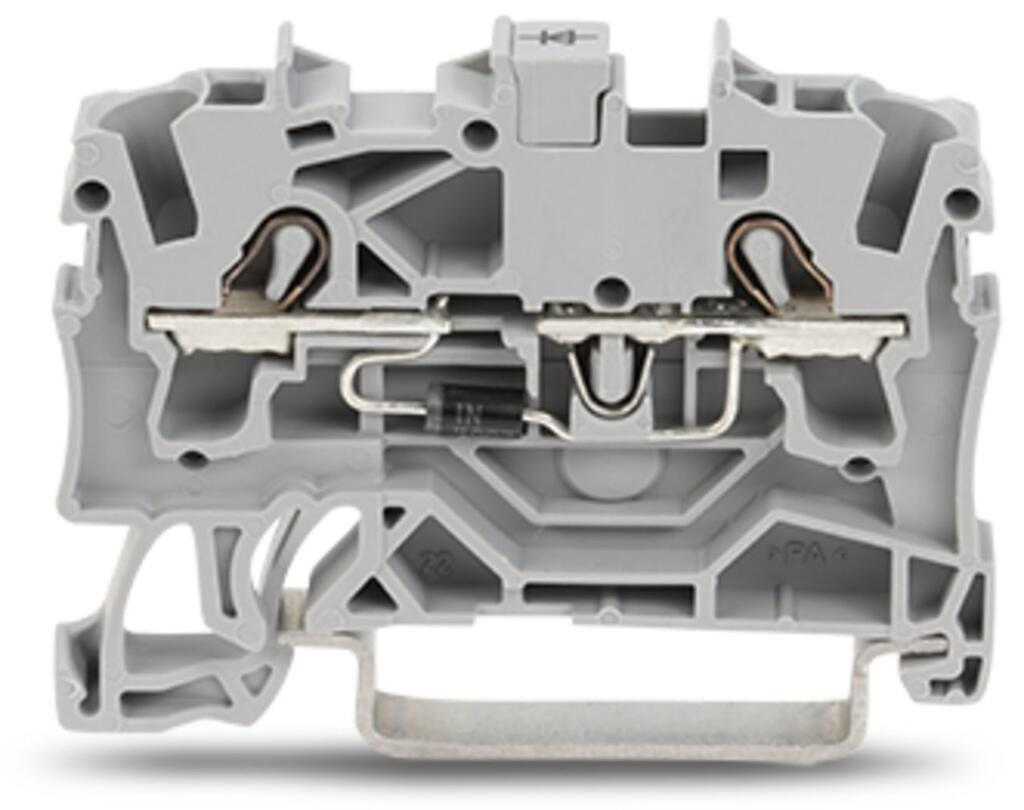

wago 2202-1211/1000-411

Mounting type

DIN-35 rail

质量

6.8g

Clamping units

2

Total number of potentials

1

Number of jumper slots

1

Depth from upper-edge of DIN-rail

32.9?mm?/ 1.295?inches

Marking level

Center/side marking

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Fire load

0.149MJ

ActuatorColor

orange

Processing temperature

-35 … +85?°C

Continuous operating temperature

-60 … +105?°C

ETIM 9.0

EC000903

ETIM 8.0

EC000903

ECCN

NO US CLASSIFICATION

PU (SPU)

100?pcs

Packaging type

Box

Country of origin

DE

GTIN

4066966324150

Customs tariff number

85369010000

CAS-No.

7439-92-1

REACH Candidate List Substance

2,2'',6,6''-tetrabromo-4,4''-isopropylidenediphenol

RoHS Compliance Status

Compliant,With Exemption

RoHS Exemption

7(a)

SCIP notification number (Austria)

a83cceac-1344-4943-bc17-415dd3e8fbe8

SCIP notification number (Belgium)

932cf6e8-425f-4fb4-a3e7-1dcd98c92ff1

SCIP notification number (Czech Republic)

71915083-35ae-4d26-ae91-91f335a905ff

SCIP notification number (Denmark)

e2d903b2-cc6a-47cf-aea0-bf98a55ec1c4

SCIP notification number (Finland)

991f5ffb-1665-48b8-b7d5-99bcd2c6c161

SCIP notification number (Germany)

a2206811-3d8e-4b3b-ab81-8fd7b36694f9

SCIP notification number (Netherlands)

79f35165-1625-4e46-9ced-e25ff37f33e9

SCIP notification number (Poland)

7e51abf9-fed6-48fd-877a-b184ff5c7417

SCIP notification number (Romania)

2e94e96c-274b-4078-98bd-3021b7506526

SCIP notification number (Sweden)

e8e196c4-40dc-43c5-928b-60e931c4d1a6

Nominal voltage

250V

Continuous current (max.)

500 mA

Connection technology

Push-in CAGE CLAMP?

Actuation type

Push-button

Connectable conductor materials

Copper

Nominal cross-section

2.5 mm2

Solid conductor

0.25 … 4?mm2?/ 22 … 12?AWG

Solid conductor; push-in termination

0.75 … 4?mm2?/ 18 … 12?AWG

Fine-stranded conductor

0.25 … 4?mm2?/ 22 … 12?AWG

Fine-stranded conductor; with insulated ferrule

0.25 … 2.5?mm2?/ 22 … 14?AWG

Fine-stranded conductor; with ferrule; push-in termination

1 … 2.5?mm2?/ 18 … 14?AWG

Note (conductor cross-section)

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

Strip length

10 … 12?mm?/ 0.39 … 0.47?inches

Wiring direction

Front-entry wiring

Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment

DIN EN 50155 (VDE 0115-200):2022-06

Spectrum/Installation location

Service life test, Category?1, Class?A/B

Function test with noise-like vibration

Test passed according to Section 8 of the standard

Acceleration

5g (highest test level used for all axes)

Test duration per axis

5 h

Test directions

X, Y and Z axes

Monitoring for contact faults/interruptions

Passed

Voltage drop measurement before and after each axis

Passed

Simulated service life test through increased levels of noise-like vibration

Test passed according to Section 9 of the standard

Extended test scope: Monitoring for contact faults/interruptions

Passed

Extended test scope: Voltage drop measurement before and after each axis

Passed

Shock test

Test passed according to Section 10 of the standard

Shock form

Half sine

Shock duration

30 ms

Number of shocks per axis

3 pos. und 3 neg.

Vibration and shock stress for rolling stock equipment

Passed

颜色

gray

频率

f1= 5 Hz to f2= 150 Hz

Number of levels

1

Reverse voltage

1,000V

宽度

5.2?mm?/ 0.205?inches

高度

48.5?mm?/ 1.909?inches
