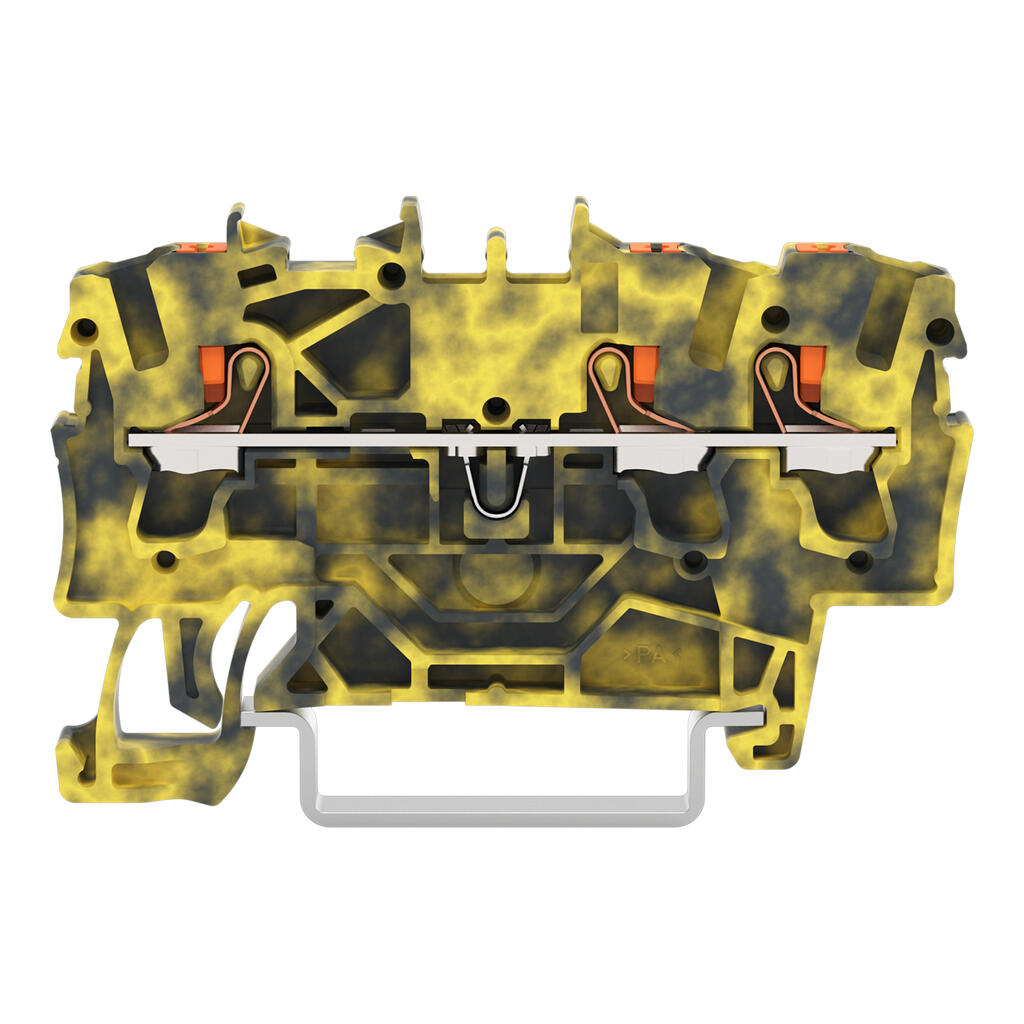

wago 2202-1301/000-053

Mounting type

DIN-35 rail

质量

6.4g

Clamping units

3

Total number of potentials

1

Number of jumper slots

2

Depth from upper-edge of DIN-rail

32.9 mm / 1.295 inches

Marking level

Center/side marking

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Fire load

0.156MJ

ActuatorColor

orange

Processing temperature

-35 … +85 °C

Continuous operating temperature

-60 … +105 °C

ETIM 9.0

EC000897

ETIM 8.0

EC000897

ECCN

NO US CLASSIFICATION

PU (SPU)

100 pcs

Packaging type

Box

Country of origin

DE

GTIN

4066966471588

Customs tariff number

85369010000

RoHS Compliance Status

Compliant,No Exemption

Ratings per

ATEX: PTB 18 ATEX 1005 U / IECEx: PTB 18.0012U (Ex eb IIC Gb)

Rated voltage (III / 3)

800V

Rated impulse voltage (III / 3)

8kV

Legend (ratings)

(III / 3) ? Overvoltage category III / Pollution degree 3

Approvals per

CSA 22.2 No 158

Rated voltage UL (Use Group B)

600V

Rated current UL (Use Group B)

20A

Rated voltage UL (Use Group C)

600V

Rated current UL (Use Group C)

20A

Rated voltage CSA (Use Group B)

600V

Rated current CSA (Use Group B)

20A

Rated voltage CSA (Use Group C)

600V

Rated current CSA (Use Group C)

20A

Reference hazardous areas

See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”

Simulated service life test through increased levels of noise-like vibration

Test passed according to Section 9 of the standard

Extended test scope: Monitoring for contact faults/interruptions

Passed

Extended test scope: Voltage drop measurement before and after each axis

Passed

Shock test

Test passed according to Section 10 of the standard

Shock form

Half sine

Shock duration

30 ms

Number of shocks per axis

3 pos. und 3 neg.

Vibration and shock stress for rolling stock equipment

Passed

Voltage drop measurement before and after each axis

Passed

Monitoring for contact faults/interruptions

Passed

Test directions

X, Y and Z axes

Test duration per axis

5 h

Acceleration

5g (highest test level used for all axes)

Function test with noise-like vibration

Test passed according to Section 8 of the standard

Spectrum/Installation location

Service life test, Category?1, Class?A/B

Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment

DIN EN 50155 (VDE 0115-200):2022-06

Wiring direction

Front-entry wiring

Strip length

10 … 12 mm / 0.39 … 0.47 inches

Note (conductor cross-section)

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

Fine-stranded conductor; with ferrule; push-in termination

1 … 2.5 mm2 / 18 … 14 AWG

Fine-stranded conductor; with insulated ferrule

0.25 … 2.5 mm2 / 22 … 14 AWG

Fine-stranded conductor

0.25 … 4 mm2 / 22 … 12 AWG

Solid conductor; push-in termination

0.75 … 4 mm2 / 18 … 12 AWG

Solid conductor

0.25 … 4 mm2 / 22 … 12 AWG

Nominal cross-section

2.5 mm2

Connectable conductor materials

Copper

Actuation type

Push-button

Connection technology

Push-in CAGE CLAMP?

Resistance value for specified, current-dependent power loss

0.001Ω

Rated current I_N for specified power loss

24A

Power loss, per pole (potential)

0.766W

Rated current (Ex e II) with jumper

20A

Rated current (Ex e II)

22A

Rated voltage EN (Ex e II)

550V

颜色

dark gray/yellow

深度

39.5 mm / 1.555 inches

频率

f1= 5 Hz to f2= 150 Hz

Number of levels

1

Rated current

24A

宽度

5.2 mm / 0.205 inches

高度

59.2 mm / 2.33 inches
