wago 2202-1411/1000-411

Name: 2202-1411/1000-411
Brand: wago
SKU: 2685-2202-1411/1000-411
Availability: InStock
Rating: 5 (1 reviews)

收藏
对比

型号

2202-1411/1000-411

品牌

wago

utmel 编号

2685-2202-1411/1000-411

商品类别

无类别的

封装

交货地

大陆

交期（工作日）

立即发货

ROHS

ECAD

简介

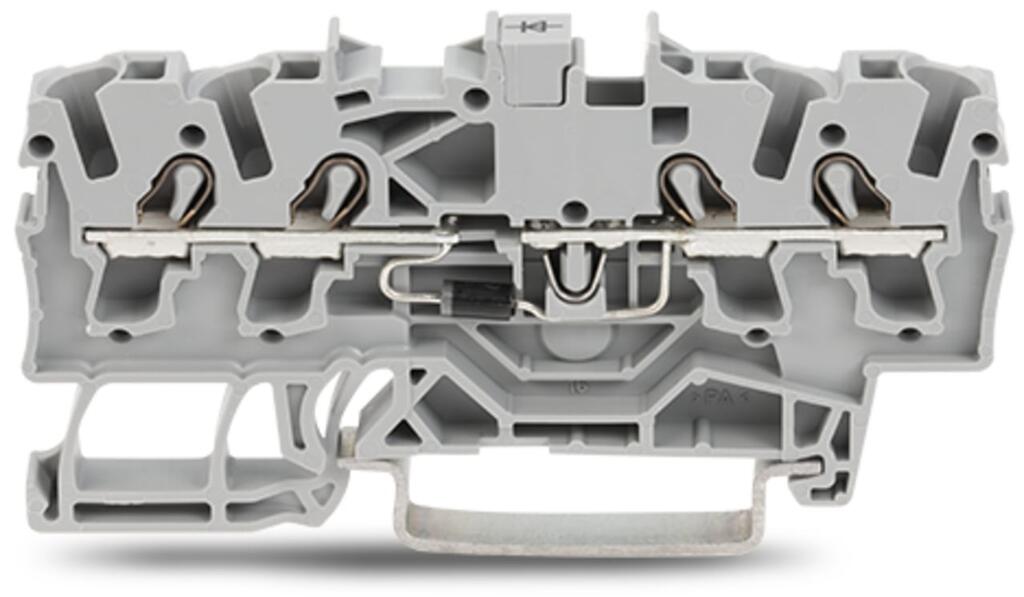

Component terminal block; 4-conductor; with diode 1N4007; anode, right side; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm2; Push-in CAGE CLAMP?; 2,50 mm2; gray

起订量

1最小包装量--

添加到询价列表

2202-1411/1000-411 wago Component terminal block; 4-conductor; with diode 1N4007; anode, right side; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm2; Push-in CAGE CLAMP?; 2,50 mm2; gray

请发送询价，我们将立即回复。

库存:

请发送询价，我们将立即回复。

* 联系人姓名

* 电话

* 邮箱

* 公司名称

* 数量

在线咨询

2202-1411/1000-411详情

技术参数

PDF文档

wago 2202-1411/1000-411重要参数规格及、参数值，及相似型号如下：

参数名

参数值

全选
参数名

参数值

全选
Mounting type

DIN-35 rail
质量

9.5g
Clamping units

4
Total number of potentials

1
Number of jumper slots

1
Depth from upper-edge of DIN-rail

32.9 mm / 1.295 inches
Marking level

Center/side marking
Note (material data)

Information on material specifications can be found here
Material group

I
Insulation material (main housing)

Polyamide (PA66)
Flammability class per UL94

V0
Fire load

0.204MJ
Processing temperature

-35 … +85 °C
Continuous operating temperature

-60 … +105 °C
ECCN

NO US CLASSIFICATION
PU (SPU)

100?pcs
Packaging type

Box
Country of origin

DE
GTIN

4066966324372
Customs tariff number

85369010000
CAS-No.

7439-92-1
REACH Candidate List Substance

2,2'',6,6''-tetrabromo-4,4''-isopropylidenediphenol
RoHS Compliance Status

Compliant,With Exemption
RoHS Exemption

7(a)
SCIP notification number (Austria)

3c691788-369b-43ec-b42f-5db17d60cdca
SCIP notification number (Belgium)

30942c14-b2f1-4cb9-9f64-8d4aee120c08
SCIP notification number (Czech Republic)

81b6ee72-0129-4f10-839f-0940827af361
SCIP notification number (Denmark)

8f0c93cb-2023-40cc-9703-dc9a0db84cbe
SCIP notification number (Finland)

48b74016-22e2-4316-ae13-3c7924abe61d
SCIP notification number (Germany)

f1c6b127-08e5-42b7-bfda-923b9217902a
SCIP notification number (Netherlands)

b28cce8d-9cbc-4ad8-9a79-fc70245a885a
SCIP notification number (Poland)

6a8ca9e9-1a3a-413f-9679-ac9dd7b14be6
SCIP notification number (Romania)

172168fb-b497-4a03-8a41-e7bc49d31c90
SCIP notification number (Sweden)

ddd423a4-1fd4-4d64-b5ae-c9cd2ce335d2
Nominal voltage

250V
Continuous current (max.)

500 mA
Connection technology

Push-in CAGE CLAMP?
Actuation type

Push-button
Connectable conductor materials

Copper
Nominal cross-section

2.5 mm2
Solid conductor

0.25 … 4 mm2 / 22 … 12 AWG
Solid conductor; push-in termination

0.75 … 4 mm2 / 18 … 12 AWG
Fine-stranded conductor

0.25 … 4 mm2 / 22 … 12 AWG
Fine-stranded conductor; with insulated ferrule

0.25 … 2.5 mm2 / 22 … 14 AWG
Fine-stranded conductor; with ferrule; push-in termination

1 … 2.5 mm2 / 18 … 14 AWG
Note (conductor cross-section)

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length

10 … 12 mm / 0.39 … 0.47 inches
Wiring direction

Front-entry wiring
颜色

gray
Number of levels

1
Reverse voltage

1,000V
宽度

5.2 mm / 0.205 inches
高度

69.9 mm / 2.752 inches
