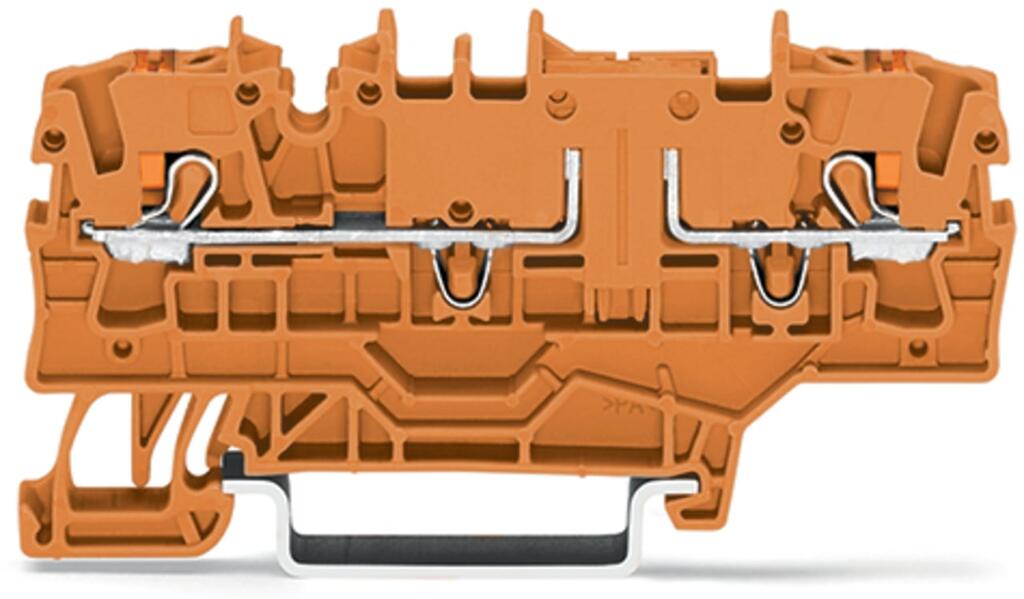

wago 2202-1902

Mounting type

DIN-35 rail

Clamping units

2

Total number of potentials

1

Number of jumper slots

3

Depth from upper-edge of DIN-rail

32.9?mm?/ 1.295?inches

Marking level

Center/side marking

Note (material data)

Information on material specifications can be found here

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

ActuatorColor

orange

ETIM 9.0

EC000897

ETIM 8.0

EC000897

ECCN

NO US CLASSIFICATION

RoHS Compliance Status

Compliant,No Exemption

Ratings per

ATEX: PTB 20 ATEX 1007 U / IECEx: PTB 20.0013U (Ex ec IIC Gc)

Rated voltage (III / 3)

400V

Rated impulse voltage (III / 3)

6kV

Legend (ratings)

(III / 3) ? Overvoltage category III / Pollution degree 3

Approvals per

CSA 22.2 No 158

Rated voltage UL (Use Group B)

300V

Rated current UL (Use Group B)

15A

Rated voltage UL (Use Group C)

300V

Rated current UL (Use Group C)

15A

Rated voltage CSA (Use Group B)

300V

Rated current CSA (Use Group B)

15A

Rated voltage CSA (Use Group C)

300V

Rated current CSA (Use Group C)

15A

Reference hazardous areas

See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”

Rated voltage EN (Ex e II)

440V

Rated current (Ex e II)

17A

Connection technology

Push-in CAGE CLAMP?

Actuation type

Push-button

Connectable conductor materials

Copper

Nominal cross-section

2.5 mm2

Solid conductor

0.25 … 4?mm2?/ 22 … 12?AWG

Solid conductor; push-in termination

0.75 … 4?mm2?/ 18 … 12?AWG

Fine-stranded conductor

0.25 … 4?mm2?/ 22 … 12?AWG

Fine-stranded conductor; with insulated ferrule

0.25 … 2.5?mm2?/ 22 … 14?AWG

Fine-stranded conductor; with ferrule; push-in termination

1 … 2.5?mm2?/ 18 … 14?AWG

Note (conductor cross-section)

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

Strip length

10 … 12?mm?/ 0.39 … 0.47?inches

Wiring direction

Front-entry wiring

颜色

orange

深度

39.5 mm / 1.555 inches

Number of levels

1

Rated current

16A

宽度

5.2?mm?/ 0.205?inches

高度

72.9?mm?/ 2.87?inches
