wago 2202-2232

Name: 2202-2232
Brand: wago
SKU: 2685-2202-2232
Availability: InStock
Rating: 5 (1 reviews)

收藏
对比

型号

2202-2232

品牌

wago

utmel 编号

2685-2202-2232

商品类别

无类别的

封装

交货地

大陆

交期（工作日）

立即发货

ROHS

ECAD

简介

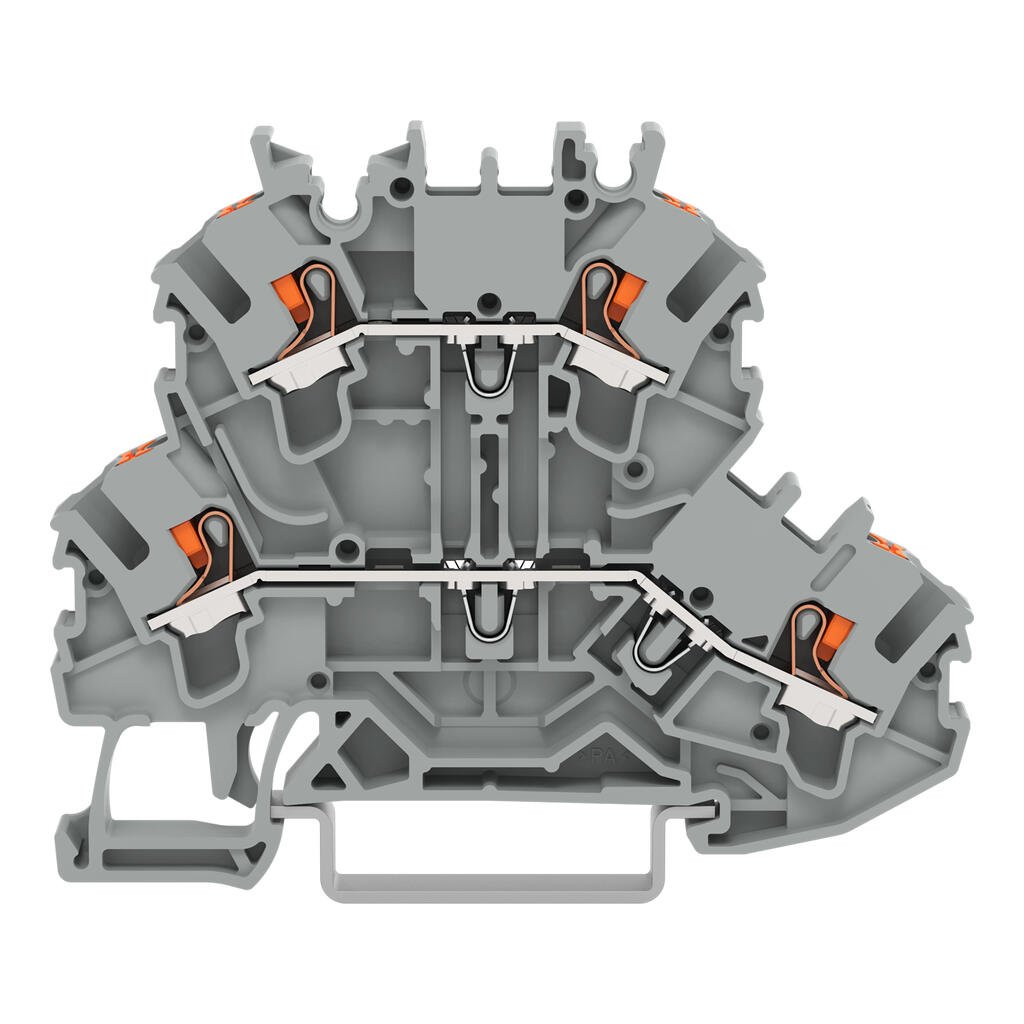

Double-deck terminal block; with push-button; Through/through terminal block; N/L; with marker carrier; suitable for Ex e II applications; Blue conductor entry lower deck; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm2; Push-in CAGE CLAMP?; 2,50 mm2; gray

起订量

1最小包装量--

添加到询价列表

2202-2232 wago Double-deck terminal block; with push-button; Through/through terminal block; N/L; with marker carrier; suitable for Ex e II applications; Blue conductor entry lower deck; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm2; Push-in CAGE CLAMP?; 2,50 mm2; gray

请发送询价，我们将立即回复。

库存:

请发送询价，我们将立即回复。

* 联系人姓名

* 电话

* 邮箱

* 公司名称

* 数量

在线咨询

2202-2232详情

技术参数

PDF文档

wago 2202-2232重要参数规格及、参数值，及相似型号如下：

参数名

参数值

全选
参数名

参数值

全选
Mounting type

DIN-rail 35 x 15
质量

10.6g
Clamping units

4
Total number of potentials

2
Number of jumper slots

4
Depth from upper-edge of DIN-rail

64.3 mm / 2.531 inches
Potential Marking

N/L
Marking level

Center/side marking
Note (material data)

Information on material specifications can be found here
Material group

I
Insulation material (main housing)

Polyamide (PA66)
Flammability class per UL94

V0
Fire load

0.241MJ
Processing temperature

-35 … +85 °C
Continuous operating temperature

-60 … +105 °C
ETIM 9.0

EC000897
ETIM 8.0

EC000897
ECCN

NO US CLASSIFICATION
PU (SPU)

50 pcs
Packaging type

Box
Country of origin

PL
GTIN

4066966426625
Customs tariff number

85369010000
RoHS Compliance Status

Compliant,No Exemption
Ratings per

IEC/EN 60947-7-1
Rated voltage (III / 3)

500V
Rated impulse voltage (III / 3)

6kV
Current at conductor cross-section (max.) mm2

28A
Reference hazardous areas

See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”
Power loss, per pole (potential)

0.766W
Rated current I<sub>N</sub> for specified power loss

23A
Resistance value for specified, current-dependent power loss

0.001Ω
Connection technology

Push-in CAGE CLAMP?
Total number of connection points

2
Actuation type

Push-button
Connectable conductor materials

Copper
Nominal cross-section

2.5 mm2
Solid conductor

0.25 … 4 mm2 / 22 … 12 AWG
Solid conductor; push-in termination

1 mm2 / 18 AWG
Stranded conductor

0.25 … 4 mm2 / 22 … 12 AWG
Fine-stranded conductor

0.25 … 4 mm2 / 22 … 12 AWG
Fine-stranded conductor; with insulated ferrule

1 … 2.5 mm2 / 18 … 12 AWG
Fine-stranded conductor; with ferrule; push-in termination

1 mm2 / 18 AWG
Note (conductor cross-section)

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length

10 … 12 mm / 0.39 … 0.47 inches
Wiring direction

Front-entry wiring
Number of connection points 2

2
颜色

gray
Number of levels

2
Rated current

23A
宽度

5.2 mm / 0.205 inches
高度

69.7 mm / 2.744 inches
