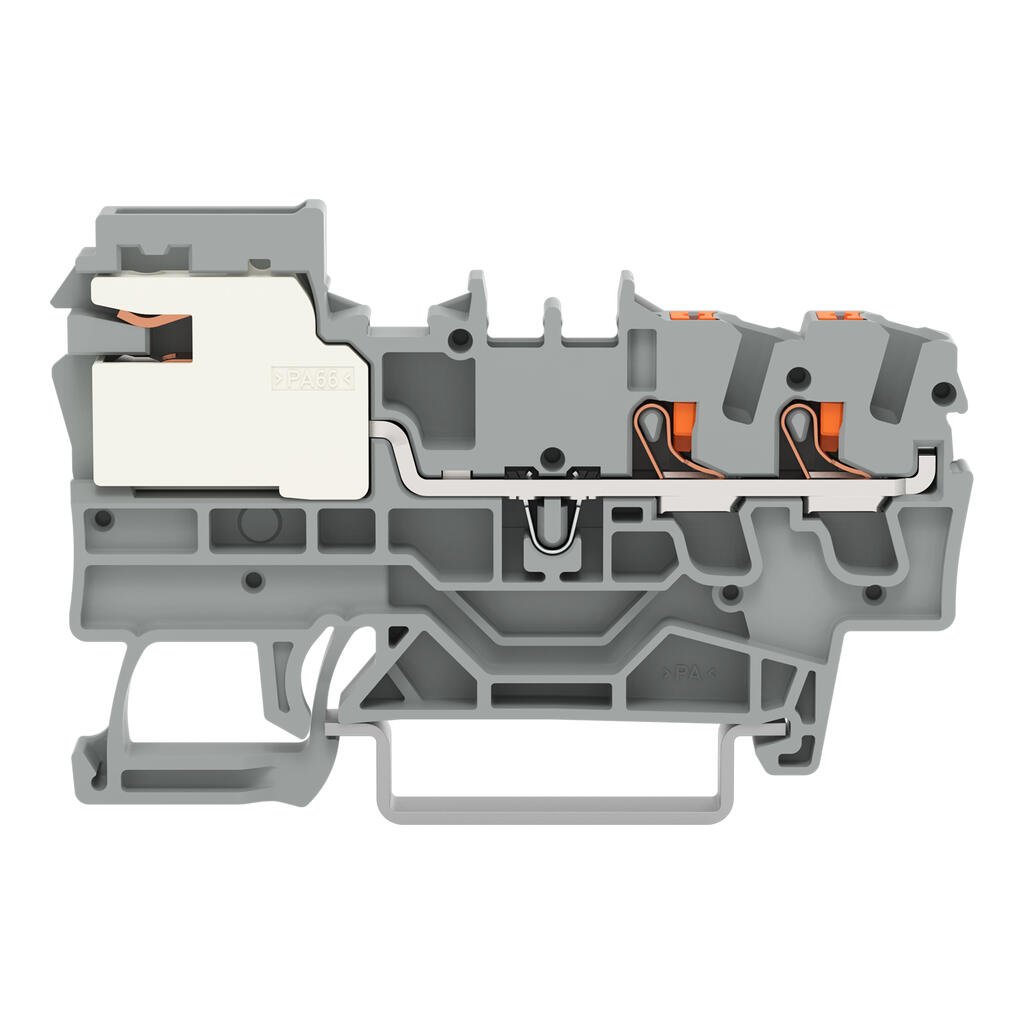

wago 2202-7211

Mounting type

DIN-35 rail

质量

10.1g

Clamping units

2

Total number of potentials

1

Number of jumper slots

2

Depth from upper-edge of DIN-rail

38.1 mm / 1.5 inches

Marking level

Center/side marking

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Fire load

0.184MJ

Processing temperature

-35 … +85 °C

Continuous operating temperature

-60 … +105 °C

ETIM 9.0

EC001257

ETIM 8.0

EC001257

ECCN

NO US CLASSIFICATION

PU (SPU)

50 pcs

Packaging type

Box

Country of origin

PL

GTIN

4066966511222

Customs tariff number

85369010000

RoHS Compliance Status

Compliant,No Exemption

Ratings per

IEC/EN 60947-7-1

Rated voltage (III / 3)

250V

Rated impulse voltage (III / 3)

4kV

Current at conductor cross-section (max.) mm2

31A

Legend (ratings)

(III / 3) ? Overvoltage category III / Pollution degree 3

Power loss, per pole (potential)

1.362W

Rated current I_N for specified power loss

31A

Resistance value for specified, current-dependent power loss

0.001Ω

Connection technology

Push-in CAGE CLAMP?

Actuation type

Push-button

Connectable conductor materials

Copper

Nominal cross-section

2.5 mm2

Solid conductor

0.25 … 4 mm2 / 22 … 12 AWG

Solid conductor; push-in termination

1 … 4 mm2 / 17 … 12 AWG

Fine-stranded conductor

0.25 … 4 mm2 / 22 … 12 AWG

Fine-stranded conductor; with insulated ferrule

0.25 … 2.5 mm2 / 22 … 14 AWG

Fine-stranded conductor; with ferrule; push-in termination

1 … 2.5 mm2 / 18 … 14 AWG

Note (conductor cross-section)

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

Strip length

10 … 12 mm / 0.39 … 0.47 inches

Wiring direction

Front-entry wiring

颜色

gray

Number of levels

1

Rated current

24A

宽度

5.2 mm / 0.205 inches

高度

67.3 mm / 2.65 inches
