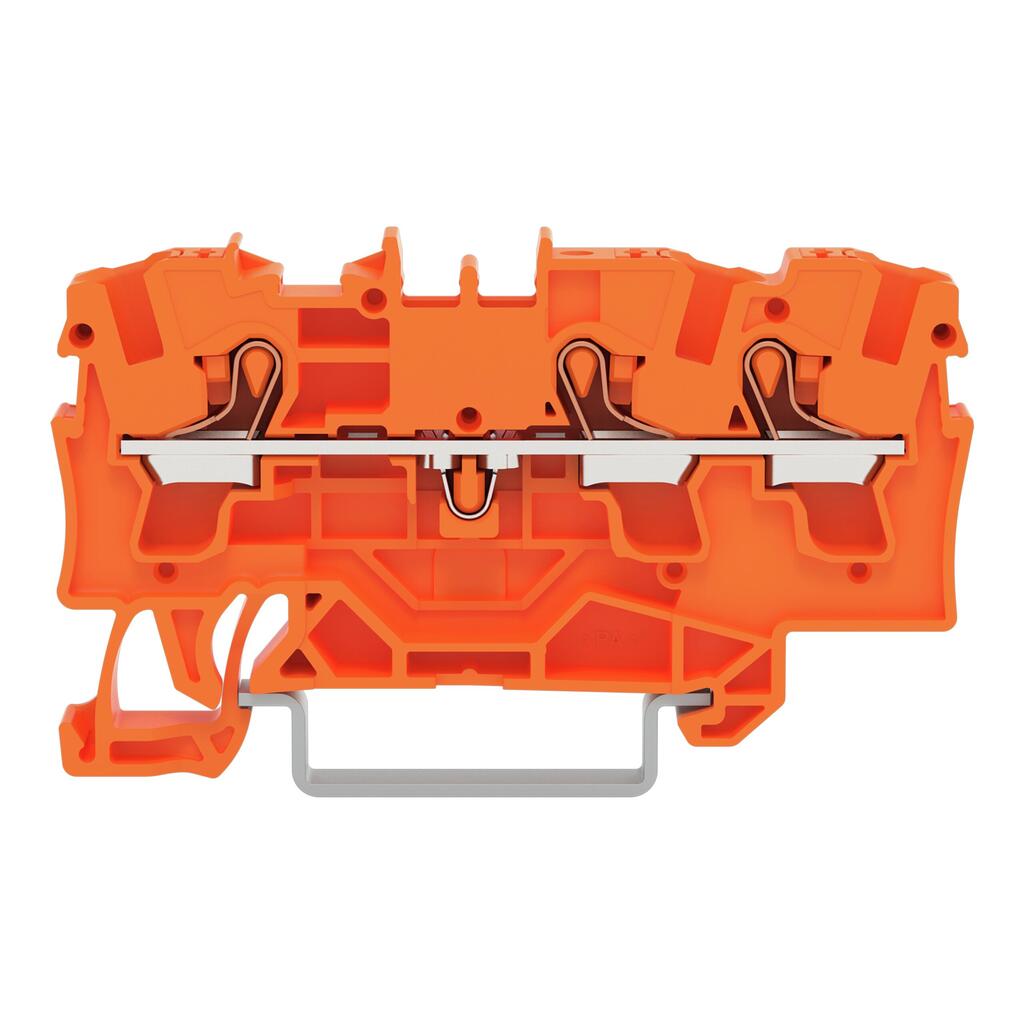

wago 2204-1302

Mounting type

DIN-35 rail

质量

9.1g

Marking level

Center/side marking

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Depth from upper-edge of DIN-rail

32.9?mm?/ 1.295?inches

Clamping units

3

Total number of potentials

1

Number of jumper slots

2

Nominal cross-section

4 mm2

Solid conductor

0.5 … 6?mm2?/ 20 … 10?AWG

Flammability class per UL94

V0

Fire load

0.195MJ

ActuatorColor

orange

Processing temperature

-35 … +85?°C

Continuous operating temperature

-60 … +105?°C

ETIM 9.0

EC000897

ETIM 8.0

EC000897

ECCN

NO US CLASSIFICATION

PU (SPU)

50?pcs

Packaging type

Box

Country of origin

DE

GTIN

4066966268072

Customs tariff number

85369010000

RoHS Compliance Status

Compliant,No Exemption

Ratings per

ATEX: PTB 18 ATEX 1006 U / IECEx: PTB 18.0013U (Ex eb IIC Gb)

Rated voltage (III / 3)

800V

Rated impulse voltage (III / 3)

8kV

Current at conductor cross-section (max.) mm2

41A

Legend (ratings)

(III / 3) ? Overvoltage category III / Pollution degree 3

Approvals per

CSA 22.2 No 158

Rated voltage UL (Use Group B)

600V

Rated current UL (Use Group B)

30A

Rated voltage UL (Use Group C)

600V

Rated current UL (Use Group C)

30A

Rated voltage CSA (Use Group B)

600V

Rated current CSA (Use Group B)

30A

Rated voltage CSA (Use Group C)

600V

Solid conductor; push-in termination

1 … 6?mm2?/ 14 … 10?AWG

Fine-stranded conductor

0.5 … 6?mm2?/ 20 … 10?AWG

Fine-stranded conductor; with insulated ferrule

0.5 … 4?mm2?/ 20 … 12?AWG

Fine-stranded conductor; with ferrule; push-in termination

1.5 … 4?mm2?/ 18 … 12?AWG

Note (conductor cross-section)

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

Strip length

11 … 13?mm?/ 0.43 … 0.51?inches

Wiring direction

Front-entry wiring

Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment

DIN EN 50155 (VDE 0115-200):2022-06

Spectrum/Installation location

Service life test, Category?1, Class?A/B

Function test with noise-like vibration

Test passed according to Section 8 of the standard

Acceleration

5g (highest test level used for all axes)

Test duration per axis

5 h

Test directions

X, Y and Z axes

Monitoring for contact faults/interruptions

Passed

Voltage drop measurement before and after each axis

Passed

Simulated service life test through increased levels of noise-like vibration

Test passed according to Section 9 of the standard

Extended test scope: Monitoring for contact faults/interruptions

Passed

Extended test scope: Voltage drop measurement before and after each axis

Passed

Shock test

Test passed according to Section 10 of the standard

Shock form

Half sine

Shock duration

30 ms

Number of shocks per axis

3 pos. und 3 neg.

Vibration and shock stress for rolling stock equipment

Passed

Rated current CSA (Use Group C)

30A

Reference hazardous areas

See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”

Rated voltage EN (Ex e II)

550V

Rated current (Ex e II)

31A

Rated current (Ex e II) with jumper

30A

Power loss, per pole (potential)

1.024W

Rated current I_N for specified power loss

32A

Resistance value for specified, current-dependent power loss

0.001Ω

Connection technology

Push-in CAGE CLAMP?

Actuation type

Push-button

Connectable conductor materials

Copper

颜色

orange

深度

39.5 mm / 1.555 inches

频率

f1= 5 Hz to f2= 150 Hz

Number of levels

1

Rated current

32A

高度

65.5?mm?/ 2.579?inches

宽度

6.2?mm?/ 0.244?inches
