wago 2206-1622

Name: 2206-1622
Brand: wago
SKU: 2685-2206-1622
Availability: InStock
Rating: 5 (1 reviews)

收藏
对比

型号

2206-1622

品牌

wago

utmel 编号

2685-2206-1622

商品类别

无类别的

封装

交货地

大陆

交期（工作日）

立即发货

ROHS

ECAD

简介

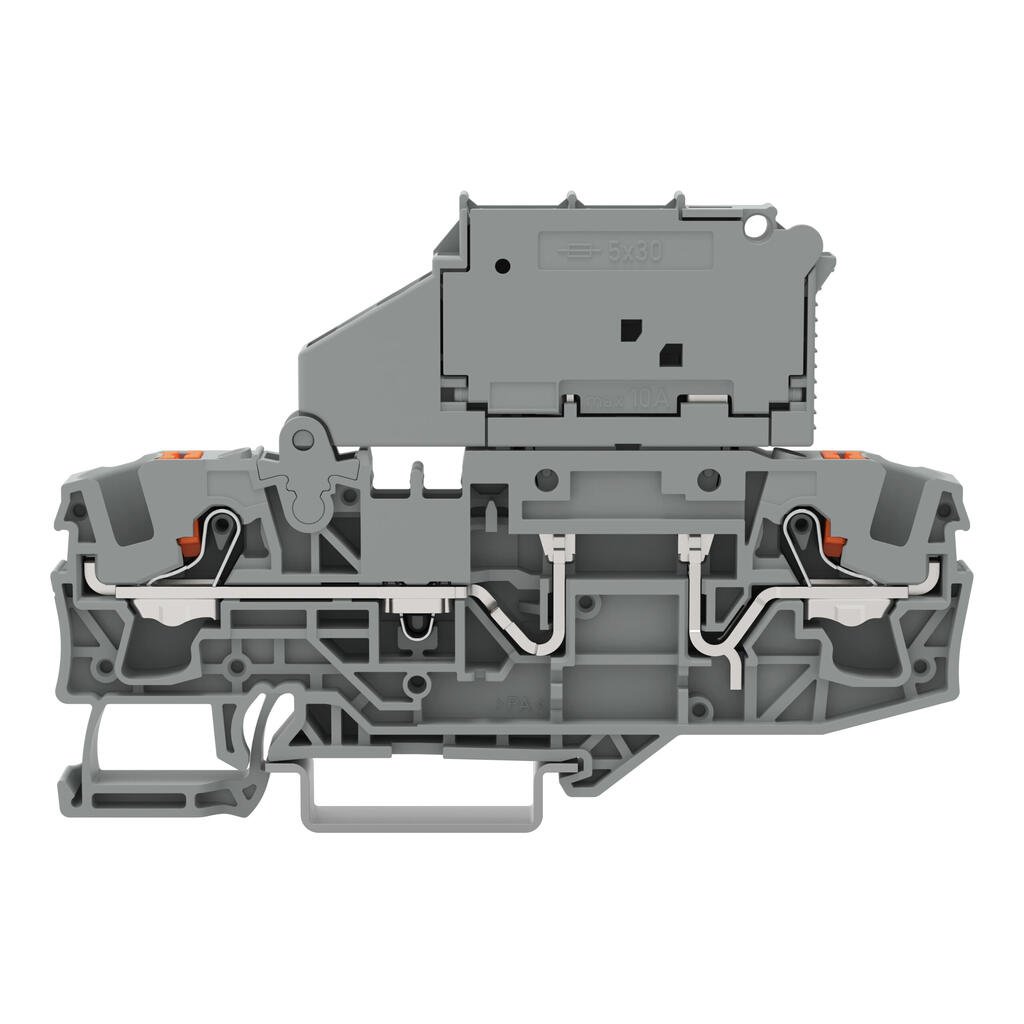

2-conductor fuse terminal block; with pivoting fuse holder; for 5 x 30 mm miniature metric fuse; with push-button; without blown fuse indication; for DIN-rail 35 x 15 and 35 x 7.5; 6 mm2; Push-in CAGE CLAMP?; 6,00 mm2; orange

起订量

1最小包装量--

添加到询价列表

2206-1622 wago 2-conductor fuse terminal block; with pivoting fuse holder; for 5 x 30 mm miniature metric fuse; with push-button; without blown fuse indication; for DIN-rail 35 x 15 and 35 x 7.5; 6 mm2; Push-in CAGE CLAMP?; 6,00 mm2; orange

请发送询价，我们将立即回复。

库存:

请发送询价，我们将立即回复。

* 联系人姓名

* 电话

* 邮箱

* 公司名称

* 数量

在线咨询

2206-1622详情

技术参数

PDF文档

wago 2206-1622重要参数规格及、参数值，及相似型号如下：

参数名

参数值

全选
参数名

参数值

全选
Mounting type

DIN-35 rail
质量

24.9g
Clamping units

2
Total number of potentials

1
Depth from upper-edge of DIN-rail

59?mm?/ 2.323?inches
Marking level

Center/side marking
Note (material data)

Information on material specifications can be found here
Material group

I
Insulation material (main housing)

Polyamide (PA66)
Flammability class per UL94

V0
Fire load

0.473MJ
ActuatorColor

orange
Processing temperature

-35 … +85?°C
Continuous operating temperature

-60 … +105?°C
ETIM 9.0

EC000899
ETIM 8.0

EC000899
ECCN

NO US CLASSIFICATION
PU (SPU)

25?pcs
Packaging type

Box
Country of origin

PL
GTIN

4066966306088
Customs tariff number

85369095000
RoHS Compliance Status

Compliant,No Exemption
Ratings per

IEC/EN 60947-7-3
Rated voltage (III / 3)

800V
Rated impulse voltage (III / 3)

8kV
Legend (ratings)

(III / 3) ? Overvoltage category III / Pollution degree 3
Ratings (note)

Electrical ratings are given by the fuse.
Approvals per

CSA 22.2 No 158
Rated voltage CSA (Use Group B)

600V
Rated current CSA (Use Group B)

15A
Rated voltage CSA (Use Group C)

600V
Rated current CSA (Use Group C)

15A
Power loss Pl max. overload and short-circuit protection (individual arrangement)

1.6W
Power loss Pl max. overload and short-circuit protection (group arrangement)

1.6W
Power loss Pl max. short-circuit protection (individual arrangement)

2.5W
Power loss Pl max. short-circuit protection (group arrangement)

2.5W
Fuse receptacle

pivoting
Connection technology

Push-in CAGE CLAMP?
Actuation type

Push-button
Connectable conductor materials

Copper
Nominal cross-section

6 mm2
Solid conductor

0.5 … 10?mm2?/ 20 … 8?AWG
Solid conductor; push-in termination

1 … 10?mm2?/ 14 … 8?AWG
Fine-stranded conductor

0.5 … 10?mm2?/ 20 … 8?AWG
Fine-stranded conductor; with insulated ferrule

0.5 … 6?mm2?/ 20 … 10?AWG
Fine-stranded conductor; with ferrule; push-in termination

2.5 … 6?mm2?/ 16 … 10?AWG
Note (conductor cross-section)

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length

13 … 15?mm?/ 0.51 … 0.59?inches
Wiring direction

Front-entry wiring
颜色

orange
Number of levels

1
Fuse type

Cylindrical fuse; 5 x 30 mm
Rated current

10A
宽度

7.5?mm?/ 0.295?inches
高度

96.3?mm?/ 3.791?inches
