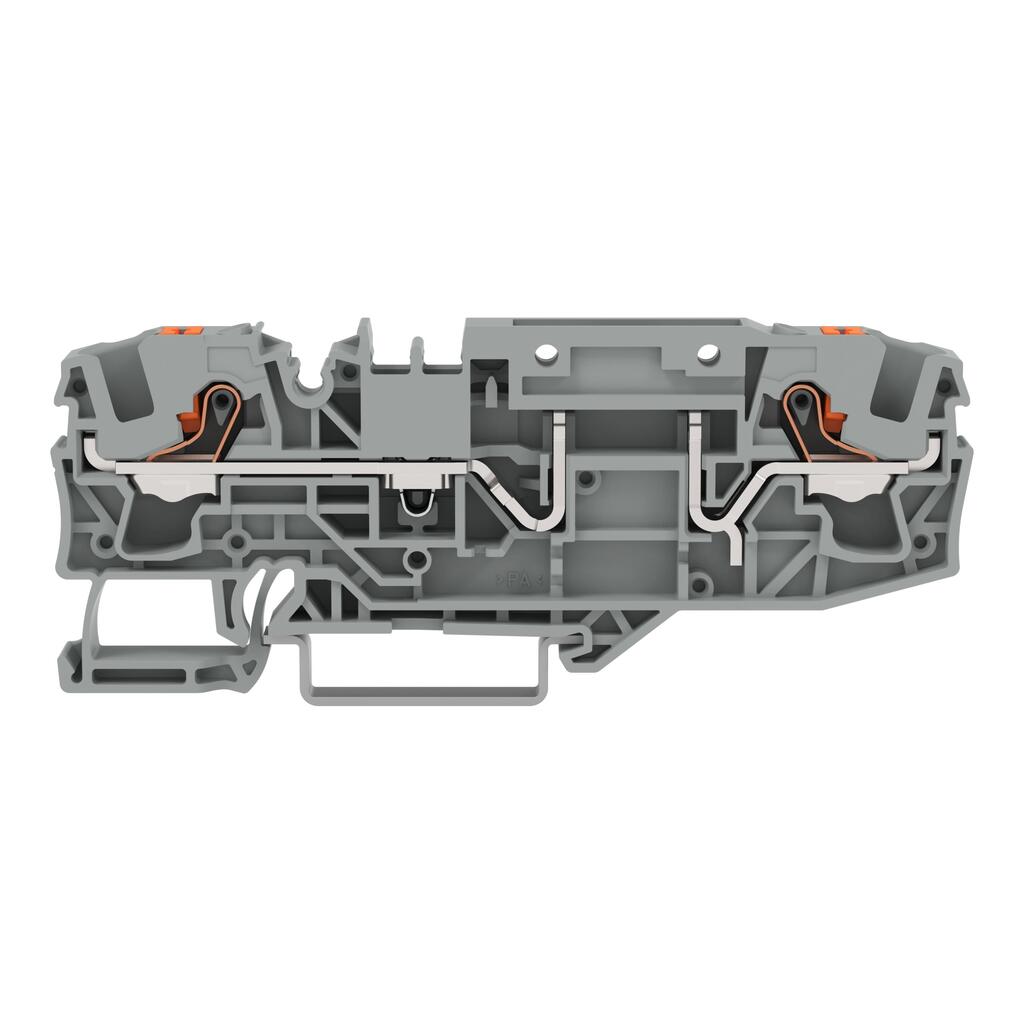

wago 2206-1664

Name: 2206-1664
Brand: wago
SKU: 2685-2206-1664
Availability: InStock
Rating: 5 (1 reviews)

收藏
对比

型号

2206-1664

品牌

wago

utmel 编号

2685-2206-1664

商品类别

无类别的

封装

交货地

大陆

交期（工作日）

立即发货

ROHS

ECAD

简介

2-conductor carrier terminal block; with push-button; for DIN-rail 35 x 15 and 35 x 7.5; 6 mm2; Push-in CAGE CLAMP?; 6,00 mm2; blue

起订量

1最小包装量--

添加到询价列表

2206-1664 wago 2-conductor carrier terminal block; with push-button; for DIN-rail 35 x 15 and 35 x 7.5; 6 mm2; Push-in CAGE CLAMP?; 6,00 mm2; blue

请发送询价，我们将立即回复。

库存:

请发送询价，我们将立即回复。

* 联系人姓名

* 电话

* 邮箱

* 公司名称

* 数量

在线咨询

2206-1664详情

技术参数

PDF文档

wago 2206-1664重要参数规格及、参数值，及相似型号如下：

参数名

参数值

全选
参数名

参数值

全选
Mounting type

DIN-35 rail
质量

17.9g
Clamping units

2
Depth from upper-edge of DIN-rail

32.9?mm?/ 1.295?inches
Fire load

0.378MJ
ActuatorColor

orange
Continuous operating temperature

-60 … +105?°C
ETIM 9.0

EC000897
ETIM 8.0

EC000897
ECCN

NO US CLASSIFICATION
Country of origin

PL
Customs tariff number

85369010000
Approvals per

CSA 22.2 No 158
Connection technology

Push-in CAGE CLAMP?
Actuation type

Push-button
Connectable conductor materials

Copper
Fine-stranded conductor

0.5 … 10?mm2?/ 20 … 8?AWG
Fine-stranded conductor; with insulated ferrule

0.5 … 6?mm2?/ 20 … 10?AWG
Fine-stranded conductor; with ferrule; push-in termination

2.5 … 6?mm2?/ 16 … 10?AWG
Total number of potentials

2
Marking level

Center/side marking
Note (material data)

Information on material specifications can be found here
Material group

I
Insulation material (main housing)

Polyamide (PA66)
Flammability class per UL94

V0
Processing temperature

-35 … +85?°C
PU (SPU)

25?pcs
Packaging type

Box
GTIN

4066966328509
RoHS Compliance Status

Compliant,No Exemption
Ratings per

IEC/EN 60947-7-1
Rated voltage (III / 3)

800V
Rated impulse voltage (III / 3)

8kV
Legend (ratings)

(III / 3) ? Overvoltage category III / Pollution degree 3
Rated voltage UL (Use Group B)

600V
Rated current UL (Use Group B)

30A
Rated voltage UL (Use Group C)

600V
Rated current UL (Use Group C)

30A
Rated voltage CSA (Use Group B)

600V
Rated current CSA (Use Group B)

30A
Rated voltage CSA (Use Group C)

600V
Rated current CSA (Use Group C)

30A
Power loss, per pole (potential)

0.702W
Rated current I<sub>N</sub> for specified power loss

30A
Resistance value for specified, current-dependent power loss

0.001Ω
Nominal cross-section

6 mm2
Solid conductor

0.5 … 10?mm2?/ 20 … 8?AWG
Solid conductor; push-in termination

2.5 … 10?mm2?/ 14 … 8?AWG
Note (conductor cross-section)

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length

13 … 15?mm?/ 0.51 … 0.59?inches
Wiring direction

Front-entry wiring
颜色

blue
Number of levels

1
Rated current

30A
宽度

7.5?mm?/ 0.295?inches
高度

96.3?mm?/ 3.791?inches
