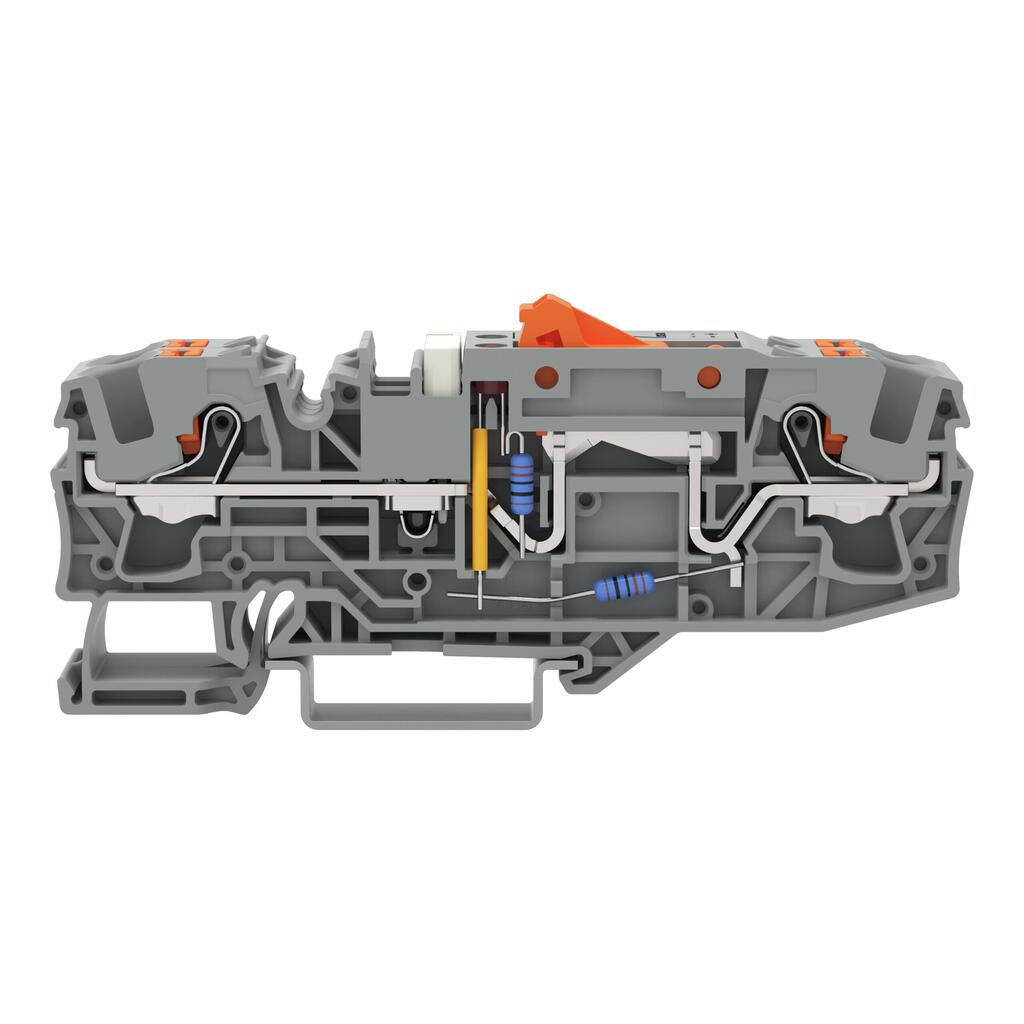

wago 2206-1671/1000-848

Mounting type

DIN-35 rail

质量

241g

Clamping units

4

Total number of potentials

2

Number of jumper slots

2

Depth from upper-edge of DIN-rail

36.8?mm?/ 1.449?inches

Marking level

Center/side marking

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Fire load

0.845MJ

ActuatorColor

orange

Processing temperature

-35 … +85?°C

Continuous operating temperature

-60 … +105?°C

ETIM 9.0

EC000902

ETIM 8.0

EC000902

ECCN

NO US CLASSIFICATION

PU (SPU)

12 pcs

Packaging type

Box

Country of origin

DE

GTIN

4066966530636

Customs tariff number

85365080900

CAS-No.

7439-92-1

REACH Candidate List Substance

2,2'',6,6''-tetrabromo-4,4''-isopropylidenediphenol

RoHS Compliance Status

Compliant,With Exemption

RoHS Exemption

7(a)

SCIP notification number (Austria)

4e6d0589-638c-4010-bd6b-d091743abaa9

SCIP notification number (Belgium)

0c2b0fe4-3691-4ab5-a079-ac3c4ee12b24

SCIP notification number (Bulgaria)

8faeaa3f-1859-4623-b421-4576652283e6

SCIP notification number (Czech Republic)

1cfec3ff-59b8-46f8-a983-ebd0a61a529f

SCIP notification number (Denmark)

3bbe19a9-c3f1-4fc1-aeb9-76351b659f3e

SCIP notification number (Finland)

87611021-b3d8-411c-80fb-6250758e81eb

SCIP notification number (France)

8b87f543-3f04-4d7f-a82d-26be46fe56d4

SCIP notification number (Germany)

ddcb9f07-00a7-4911-916f-e69a80d5e1f4

SCIP notification number (Hungary)

18cba52a-f066-4f74-a6ac-05299656925b

SCIP notification number (Italy)

1045eed8-52d0-4219-afdd-cb04f79835d8

SCIP notification number (Netherlands)

3705c312-26d8-42c0-9a8c-5d718424dce8

SCIP notification number (Poland)

0d072474-012b-43c6-b1a8-78a94c3fe01d

SCIP notification number (Romania)

319b699b-cff6-4751-8b49-993051ba3498

SCIP notification number (Sweden)

6d42516e-4594-4ed3-bc87-a95a923dc5e5

Operation status indicator

24 V

Blown fuse indication

24 V

Rated current I_N for specified power loss

30A

Resistance value for specified, current-dependent power loss

0.001Ω

Connection technology

Push-in CAGE CLAMP?

Actuation type

Push-button

Connectable conductor materials

Copper

Nominal cross-section

6 mm2

Solid conductor

0.5 … 10?mm2?/ 20 … 8?AWG

Solid conductor; push-in termination

2.5 … 10?mm2?/ 14 … 8?AWG

Fine-stranded conductor

0.5 … 10?mm2?/ 20 … 8?AWG

Fine-stranded conductor; with insulated ferrule

0.5 … 6?mm2?/ 20 … 10?AWG

Fine-stranded conductor; with ferrule; push-in termination

2.5 … 6?mm2?/ 16 … 10?AWG

Note (conductor cross-section)

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

Strip length

13 … 15?mm?/ 0.51 … 0.59?inches

Wiring direction

Front-entry wiring

颜色

gray

Number of levels

1

宽度

15?mm?/ 0.591?inches

高度

96.3?mm?/ 3.791?inches
